EC-IP3856U

1080P 100M POE Underwater Camera

Key features：

● 1/2.7 inch 2Megapixel progressive scan COMS Sensor;
● 25/30fps@1080P(1920x1080) & 25/30fps@720P(1280x720);
● IP68, POE Max. water depth: 100m;
● Multiple network monitoring: Web viewer, CMS;
● Camera aperture angle: 150degree;
● Housing material: stainless steel 316L;
● Attachment bar: adjustable by 180;
● Toughened safety glass (ESG) .

Model		EC-IP3856U
Camera Type		2.0MP real-time underwater IP Camera
Camera	Image Sensor	1/2.7" 2MP Aptina CMOS Sensor
	Effective Pixels	1920(H)x1080(V)
	Day/Night	keep color
	Min.Illumination	Color 0.1Lux/F1.4
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	2.1 / 3.6 / 4.2mm Lens
	Lens Mount	M12 Mount
	Material	stainless steel 316L
	IR-LED	N/A
	Illuminate Distance	N/A
Compression	Compression Standard	H.264 Main Profile
	Video Frames	Real-time PAL/NTSC 2MP@1~30FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream: 1920×1080 30fps(2MP),1280×720(1MP) 30fps Sub Stream:640×360,720×480(1-30fps)


Network	Parameter Settings	WEB configure and OSD supported, Real time recording, Transmission and playback
	Parameter Settings
	Basic	Dual stream, Password protection
	Protocol	HTTP/Onvif/DHCP/DDNS
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording, Sensor trigger alarm functions
	Alarm
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Other	Work Environment	-10°C- +60°C
	Waterproof Criterion	IP68
	Power Supply	POE IEEE802.3at/af

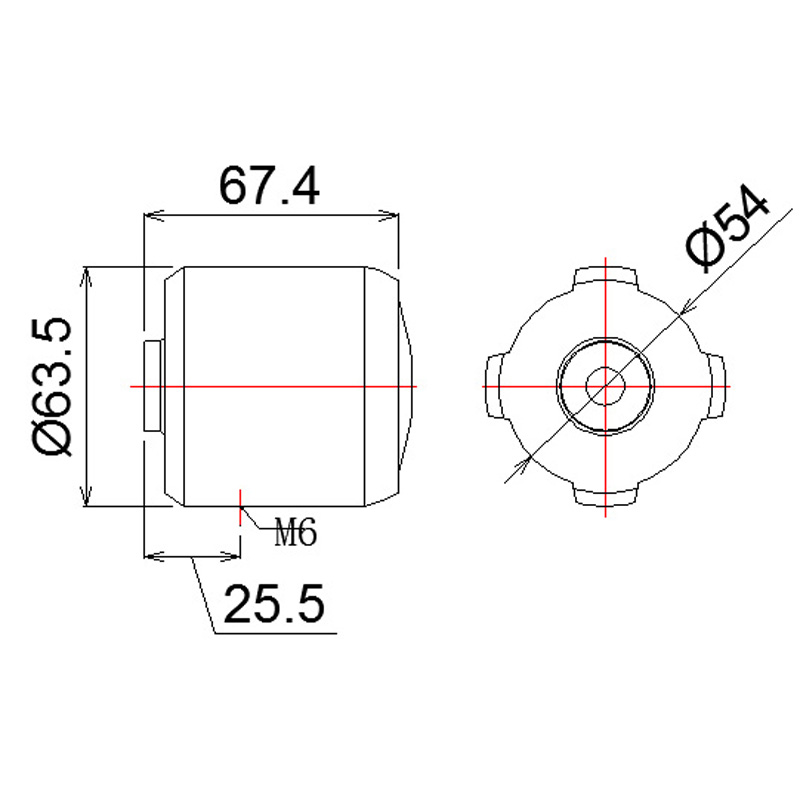

	Size	Ø 63 x 68mm
	Cable	CAT6
	Net Weight	N.W.0.65kg +cable 0.12kg/m
