Image Sensor

Sensor

1/2.8” 5MP Sony IMX335 STARVIS CMOS

Maximum Resolution

2592x1944@30fps

Minimum Illumination

0.02lux @F1.0(Color) / 0.01 lux@F1.0 (B/W)

Shot

Focal length

5.3-106mm，F1.7~3.6

Viewing angle

45°(nearfocus)~3°(farfocus)

Camera

AGC

Auto/Manual

S/N Ratio

≥45dB（AGC OFF）

Shutter Speed

1/2 - 1/20 ,000s,Slow shutter support

Wide Dynamic Range

Digital WDR

Exposure Mode

Auto/ Manual/shutter mode

AWB

Yes

Day & Night

External control（IR Cut Filter）

Light Control

Support IR/White/dual light, three mode independent control

Compression

Video Compression

H.265/H.264 Main Profile /M-JPEG

Audio Compression

G711U,G711A,PCM

Image Resolution

Main Stream

2592x1944/1920x1080@30fps

Sub Stream

640×480/480x360/352×288/176×144@30fps

General Protocol

Network Protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P

ONVIF protocol

Yes

Compatibility

Support HIK/XM protocol

P2P

Support TUYA APP

Support for Tuya APP（Android, IOS）

Function

Autofocus / Zoom

Yes

Web Configuration

Yes

OSD

Yes

Motion Detection

Yes

Humanoid Detection

Yes

Reset

Support cable reset button(opticnal)

Amplifier

Built-in amplifier

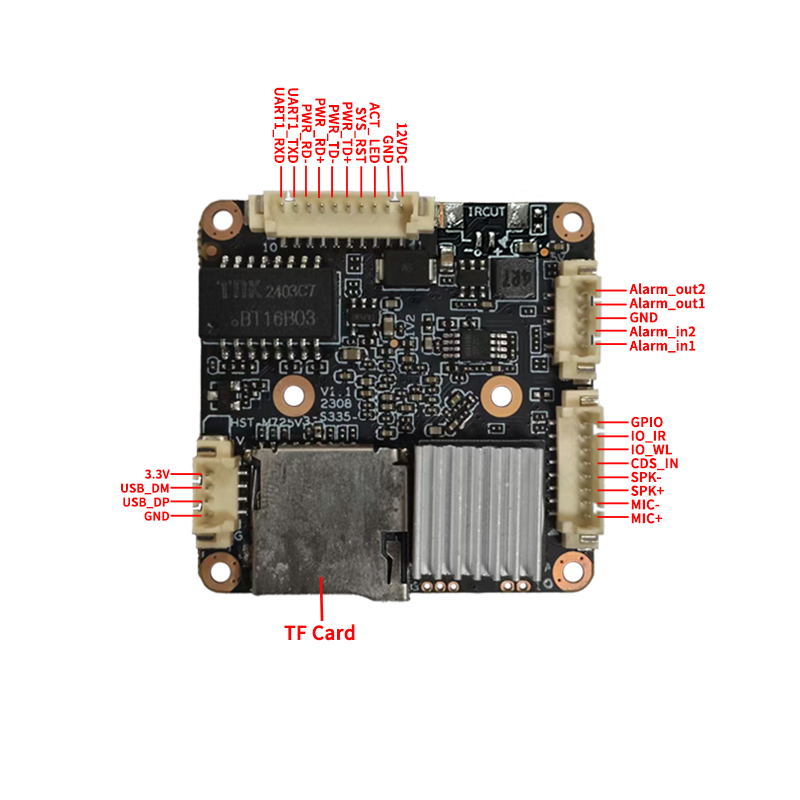

Interface

Wired

1ch 10/100 BaseT Ethernet,RJ45 interface

Audio

Microphone input/output

Alarm

2 ports input, 2 ports output

UART

Support

USB

Support

TF Card

Optional and max. 512G (reserved extended SD slot)

Other

Power Supply

DC 12V

Size/Weight

45x48x87mm /130g

Operation Temperature

-10°C~50°C

Working Humidity

≤90%RH(non-condensing)
