Key Feature
● Up to 2 megapixel high resolution
● 1920 x 1080@25fps/1920 x 1080@30fps video
● PAL/NTSC video format
● F2.8 mm fixed lens
● Auto adjusting 2D-DNR/3D-DNR
● D-WDR
● DC 12V
● Day/Night mode
● Up to 10 m IR range
● IP66 weather-proof protection
● Seismic structure design
● 6KV lightning protection

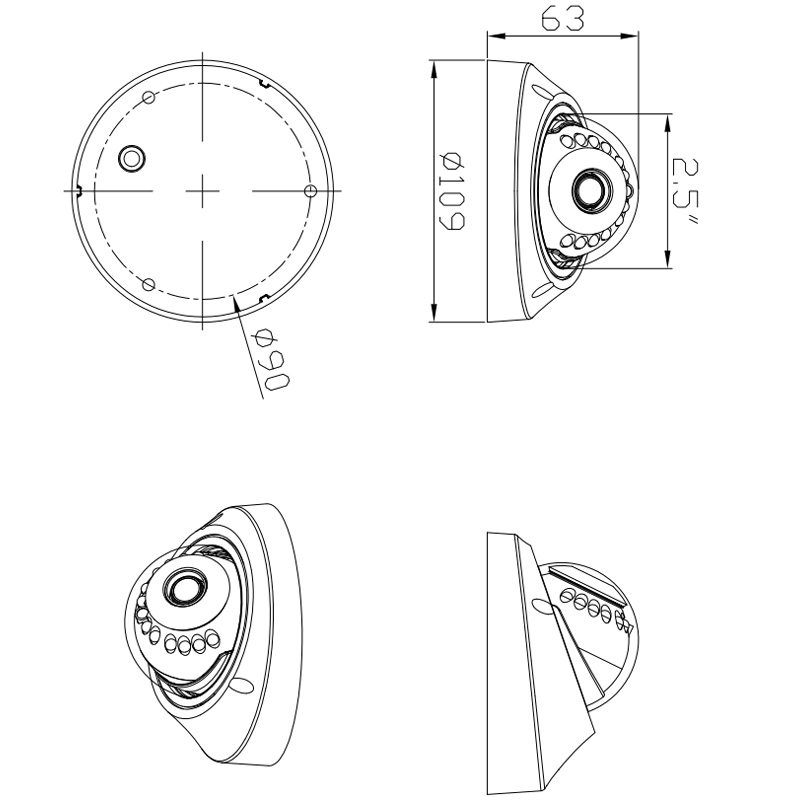

Dimension
Model |
MC5218 |
Camera Type |

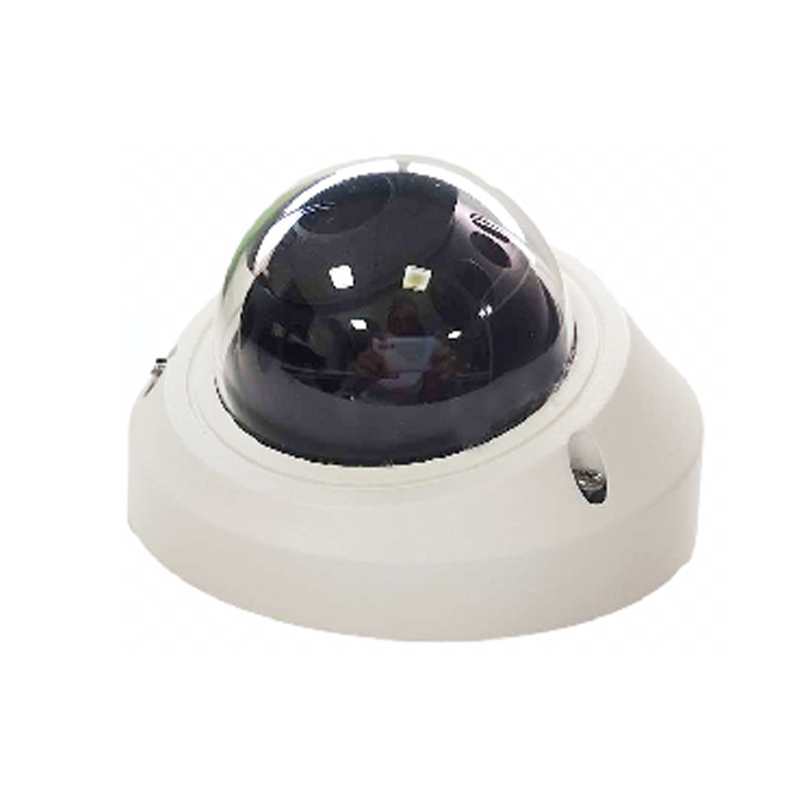

1080P Mobile Mini Dome AHD Camera |
Image Sensor |
1/2.8” Progressive Scan CMOS Sensor |
Effective Resolution |
1920(H) x 1080(V) |
Video Format |
PAL/NTSC |
Frame Rate |
1920 x 1080@25fps/1920 x 1080@30fps |
Min.Illumination |
0.0001Lux@(F1.2,AGC ON),0LUX with IR |
Day&Night |
IR cut filter |
S/N Ratio |
More than 50 dB |
WDR |
D-WDR |
DNR Type |
2DNR/3DNR |
IR |
12PCS IR LED |
IR Range |
Up to 10m |
Lens Type |
F 2.8mm fixed lens |
Horizontal Angle of View |
115°(D) |
Tilt Adjusting |
0-45 Degree |
Lens Mount |
M12 |
Audio Fuction |
Optional |
Power Supply |
12V DC ±10%,160mA |
Dimensions |
Ø109 x 63 mm |
Net Weight |
400g |
Weatherproof/Water Proof |
IP66 |
Operational Temperature |
-20 ~ +60 °C |
Operational Humidity |
<95% |
Video Interface |
Aircraft Round Connector Plug |
