AM20S07
NVP2441+307
Features：
SONY IMX307 200W Starlight CMOS, capture images.
*200W ,AHD 4 in 1 with Starlight PCB
4 in 1 signal with high definition output ,clear image.
0.01Lux@(F1.2,AGC ON)，0LUX with IR.
IR-CUT switch ，CDS external control , D/N mode.
Support OSD menu ，suitable for user-defined settings.
DWDR.
Auto adjusting 2D-DNR，3D-DNR.
Support UTC controller.
Support 6-15V Wide voltage
Support 6KV lightning protection, large power capacitor design
1.25mm PIN terminal

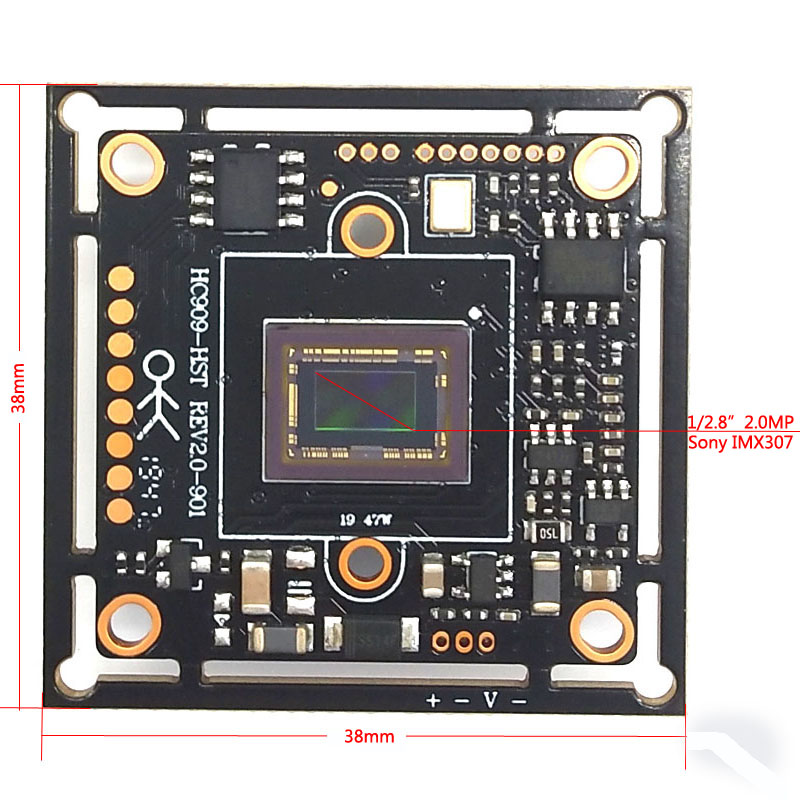

Dimension ：（Unit：mm /0.3mm)
|

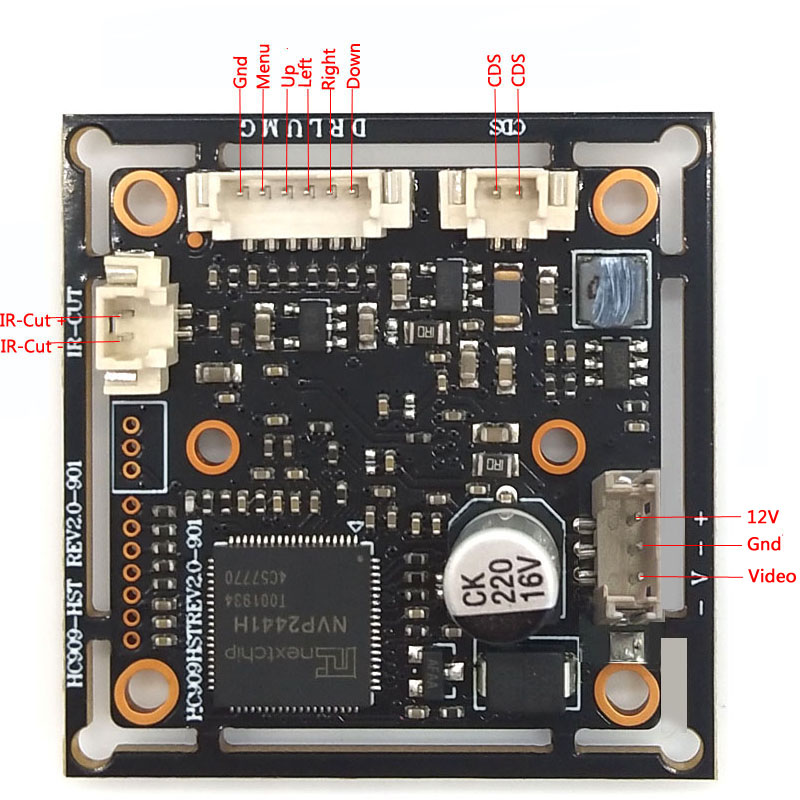

J1 |
J2 Menu |
J3 |
J4 |
||||
|---|---|---|---|---|---|---|---|
|
1 |
GND |
1 |
DOWN |
1 |
IR CUT-1 |
1 |
CDS |
|
2 |
VIDEO |
2 |
RIGHT |
2 |
IR CUT-2 |
2 |
CDS |
|
3 |
GND |
3 |
LEFT |
|
|
|
|
|
4 |
DC12V |
4 |
UP |
|
|
|
|
|
|
|
5 |
MENU |
|
|
|
|
|
|
|
6 |
GND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model Spec |
NVP2441+307 |
||
|---|---|---|---|
|
200W 4 IN 1 CMOS module |
|||
|
|
|||
|
Model No. |
1/2.8＂ IMX307+NVP2441H |
||
|
Video Format |
PAL/NTSC |
||
|
Effective Resolution |
1920(H)x1080(V) |
||
|
Illumination |
0.01Lux@(F1.2,AGC ON)，0LUX with IR |
||
|
Shutter |
AUTO |
||
|
D/N Mode |
External Control（Default）/Auto/Color/B&W |
||
|
Synchronization |
inter-sync |
||
|
Frame rate |
1080P@25fps / 1080P@30fps |
||
|
Signal |
AHD/TVI/CVI/CVBS (Optional) |
||
|
OSD Menu Specification |
|||
|
Lens Mode |
Manual/DC Lens |
||
|
Exposure |
Electronic Shutter/AGC/Frame /Brightness/DWDR/Fogging |
||
|
Back-light Mode |
Close/Back-light Compensation/Strong Inhibition |
||
|
W/B Mode |
Auto/AWE/Indoor/Outdoor/Manual /AWB |
||
|
D/N Mode |
External Control（Default）/Auto/Color/B&W |
||
|
DNR Type |
2DNR/3DNR |
||
|
Video Setting |
Contrast/Sharpness/Saturation/DNR/Video Format/DWDR |
||
|
Function |
Equipment Name/Digital/Motion Detection /Privacy Block/Language/Bad Point Compensation/RS485 |
||
|
Adjustment |
Sharpness/Display/Brightness/Compensation/ |
||
|
Exit |
Save and Exit/Reset/Non-save |
||
|
Language |
Chinese1/Chinese2/German/French/ |
||
|
Basic Specification |
|||
|
Working Temperature |
-20℃ to 60℃ |
||
|
Working Humidity |
Relative humidity <90 % |
||
|
Power |
DC12V(±20%) - 50MA |
||
|
Size |
32*32/38*38（mm） |
||
-
