EC-MW2002

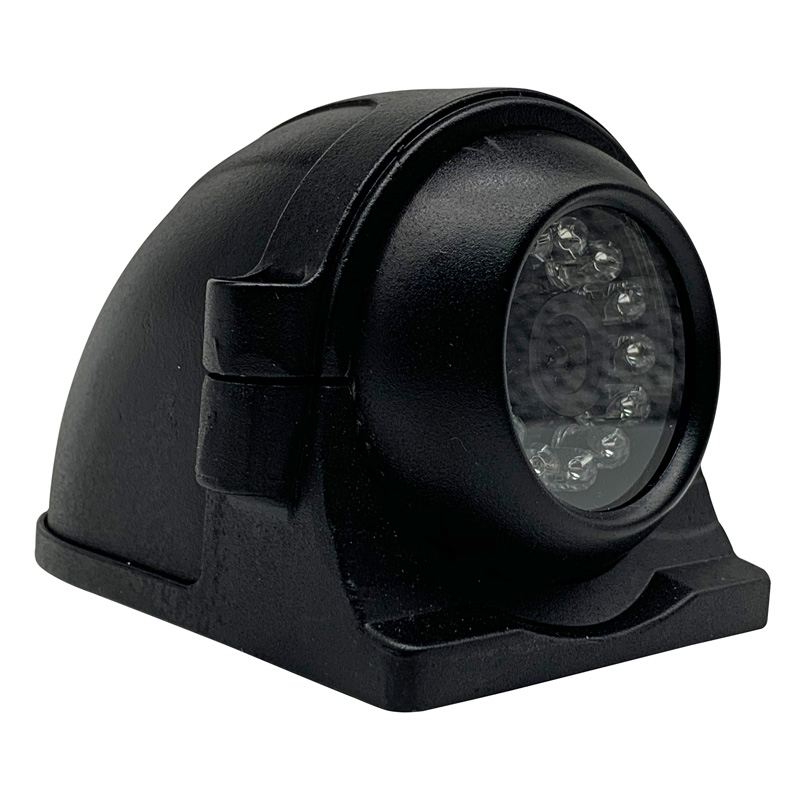

1080P AHD Mobile DVR Camera
Key features：
● 2 MP progressive scan Sony IMX307 CMOS Sensor;
● Up to 1080P resolution;
● 0.1 lux @ (F1.2, AGC ON), 0.01 lux with IR;
● Supports auto electronic day & night switch;
● Supports auto day & night switch;
● Supports right & left monitor mode;
● Up to IP 66 protection level.
|
Model |
EC-MW2002 |
|
Camera type |
HD Waterproof IR Mobile Camera |
|
Image Sensor |
2.0 megapixel CMOS Sony IMX307 Sensor |
|
Effective Pixels |
PAL:1920x1080@25fps NTSC:1920x1080@30fps |
|
Resolution |
1920x1080 |
|
IR-LED |
12pcs Ф5mm IR Leds |
|
Illuminate Distance |
20m IR Distance |
|
Day/Night |
IR-CUT filter |
|
Min.Illumination |
Color 0.1Lux/F1.2, B/W 0.01Lux/F1.2 |
|
Electronic Shutter |
4/25-1/45,000s |
|
Lens |
2.8 mm Lens |
|
Lens Mount |
M12 |
|
Video output |
1CH 4IN1 AHD/TVI/CVI/Analog Video output |
|
Work environment |
-10℃~60℃90％RH |
|
Power supply |
DC 12V±10% |
|
BLC |
Auto BLC |
|
White Balance |
Auto White Balance |
|
Max transmission distance |
common 75-3 lines can be up to 300 m |
|
other function |
D-WDR,3D-DNR |
|
Waterproof Criterion |
IP66 |
