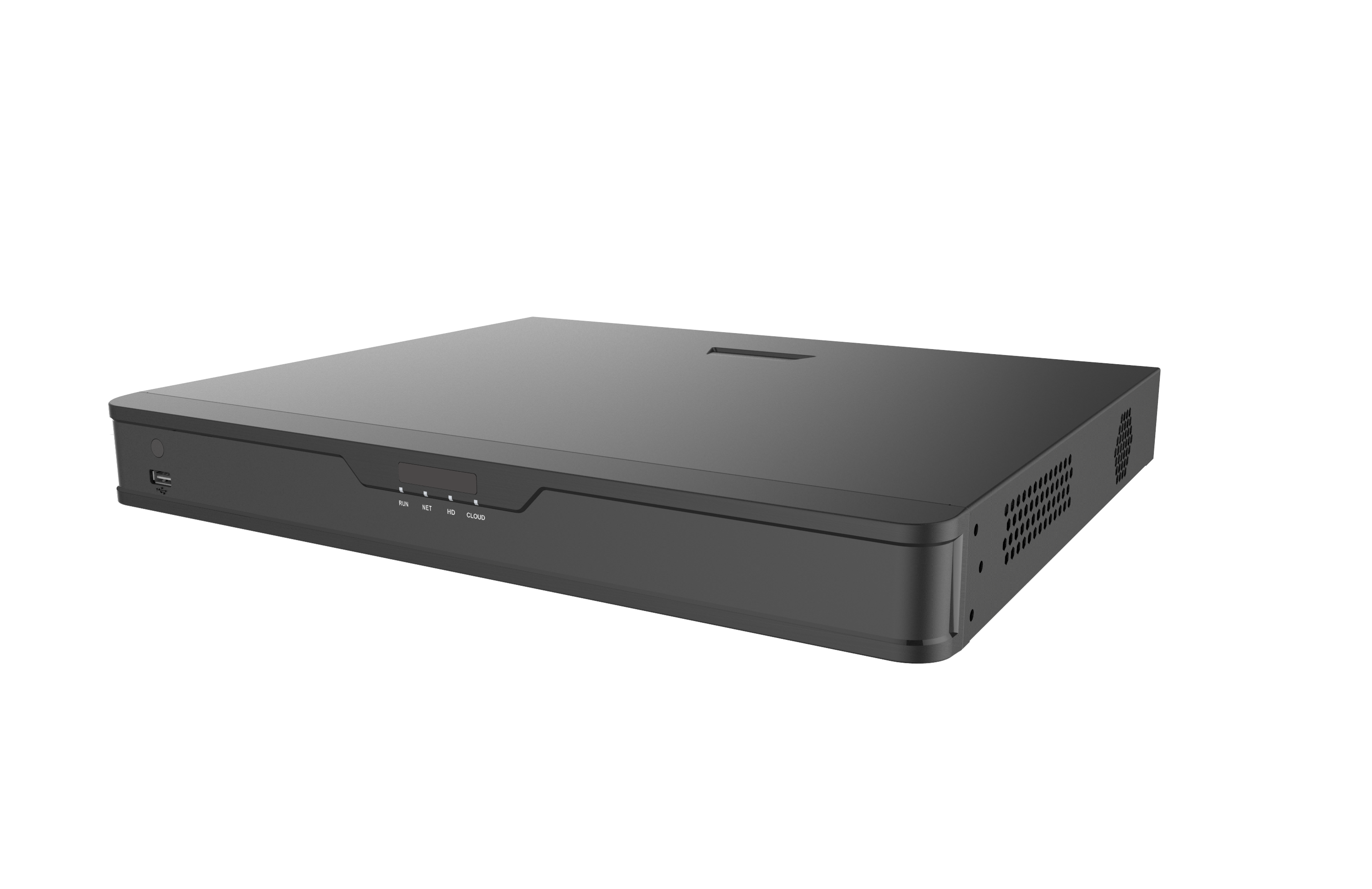

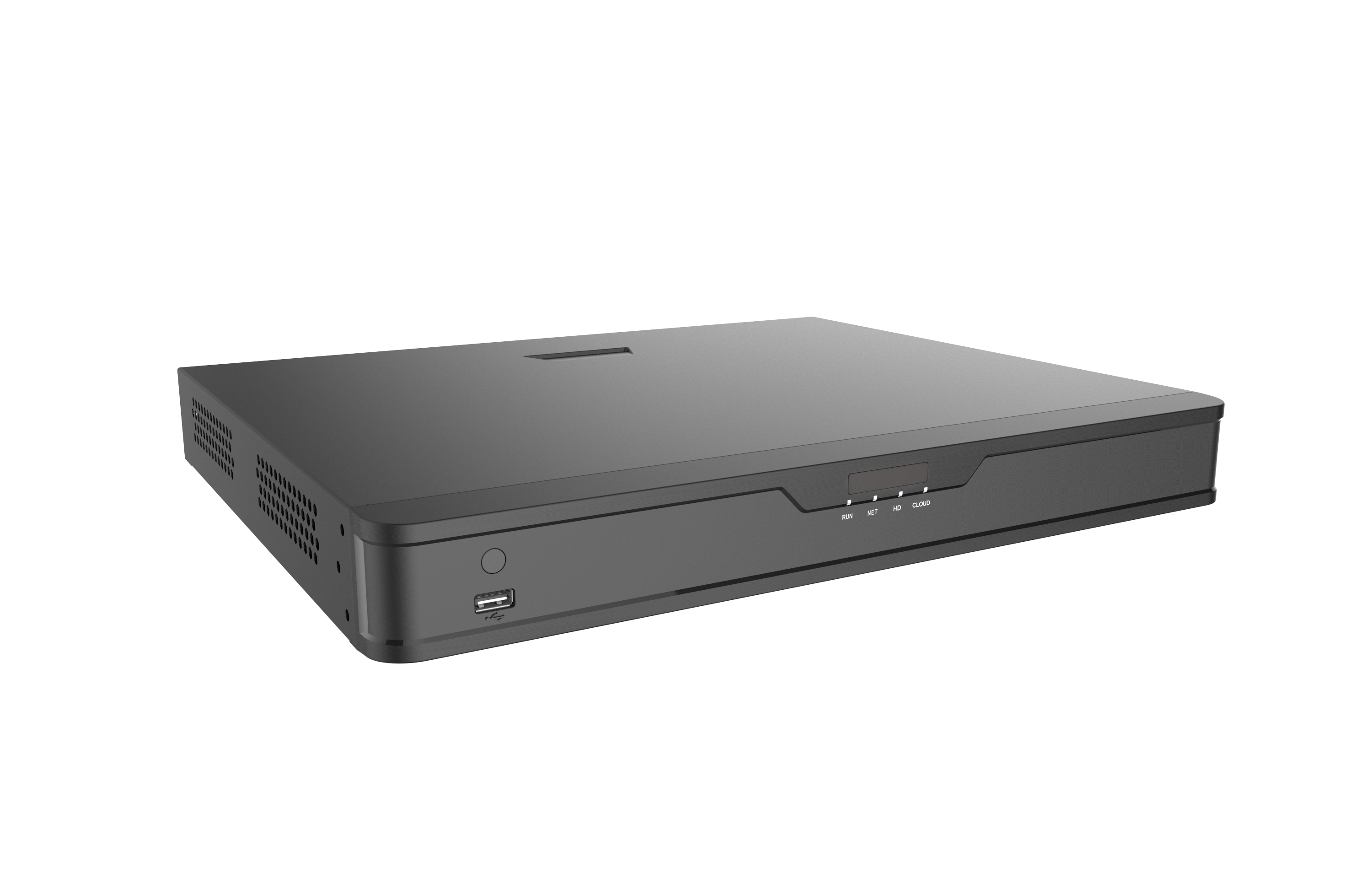

NVR302-16S2-P16 Univew neutral
NVR302-16S2-P16 Univew neutral NVR delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts powerful processor, providing the capability of 8MP resolution processing for applications where image details are highly required. Additionally, the NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.
Key Features
Support Ultra265/H.265/H.264 video formats
16-channel input
Plug & Play with 8/16 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
2 SATA HDDs, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

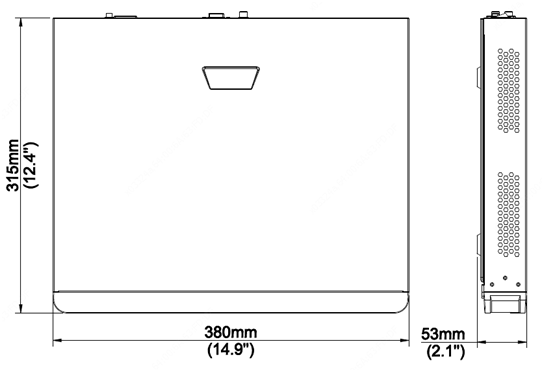

Dimensions
(1).jpg)

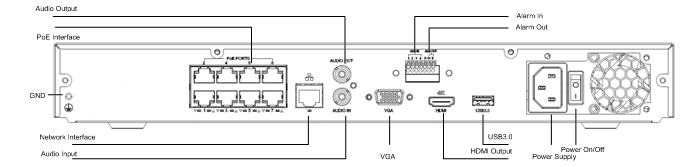

Rear Panel
Take NVR32-08S2-P8 for example
(1).jpg)
|
Model |
NVR302-16S2-P16 |
|
Video/Audio Input |
|
|
IP Video Input |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
160Mbps |
|
Outgoing Bandwidth |
64Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Synchronous Playback |
8-ch |
|
Corridor Mode Screen |
3/4/5/7/9 |
|
Decoding |
|
|
Decoding format |
Ultra265/H.265/H.264 |
|
Live view/Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 |
|
Hard Disk |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 10TB for each disk |
|
Smart |
|
|
VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed |
|
VCA Search |
Face search, Behavior search |
|
Statistical Analysis |
People counting |
|
External Interface |
|
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
|
Alarm In |
4-ch |
|
Alarm Out |
1-ch |
|
PoE |
|
|
Interface |
8 independent 100Mbps PoE network interfaces |
|
Max Power |
Max 30W for single port Max 130W in total |
|
Supported Standard |
IEEE 802.3af/at |
|
General |
|
|
Power Supply |
100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
Dimensions (W×D×H) |
380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") |
|
Weight (without HDD) |
≤2.6kg (5.29lb) |
