KV8252-KIT
The KV8252-KIT is a 1080P IP Video Intercom System, The door station,
featuring in the vandal-resistant design, convenient installation, and easy
operation, supports the video intercom function, access control function,

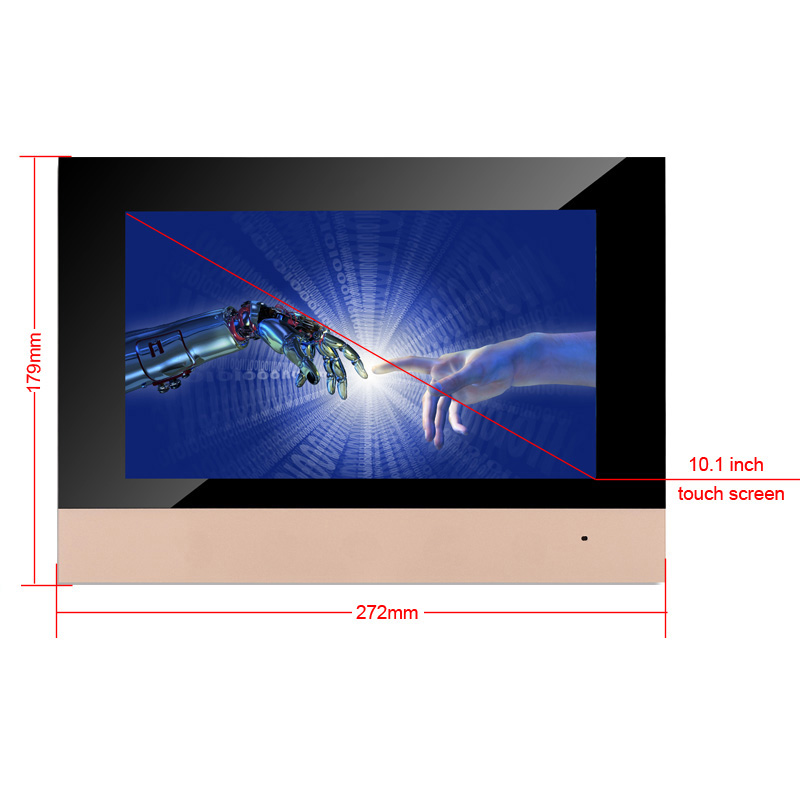

door magnetic alarm, motion detection, and so on. 10.1ch touch sereen
unique design, advance technology,let you enjoy convenient,pratical and
outstanding effect when using the system,As an intelligent device,the Kit
is mainly applied in the villa for improving the living security.
featuring in the vandal-resistant design, convenient installation, and easy
operation, supports the video intercom function, access control function,
door magnetic alarm, motion detection, and so on. 10.1ch touch sereen
unique design, advance technology,let you enjoy convenient,pratical and
outstanding effect when using the system,As an intelligent device,the Kit
is mainly applied in the villa for improving the living security.
KV8252-KIT
1080P IP Video Intercom System
Key features：

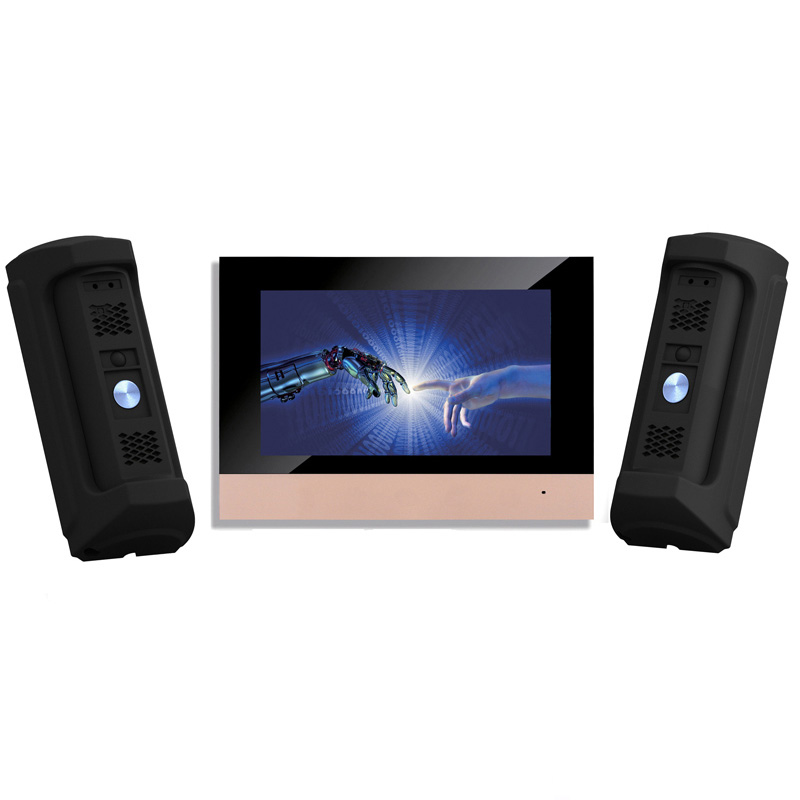

● 1 master station + 2 water proof matel door station;

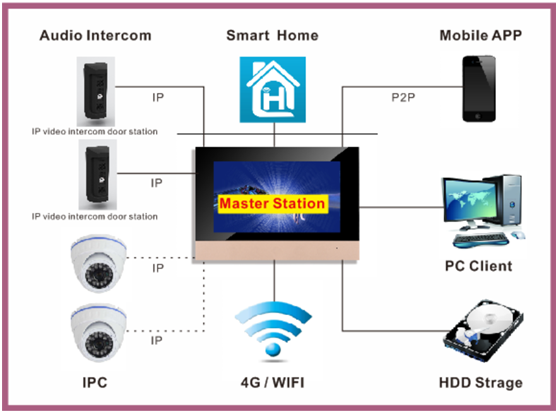

● The two stations are connected by IP protocol;
● Two-way audio intercommunication between door station and master station or Mobile APP.
Master station and Mobile APP(Tmax) support:
● Viewing,management,recording,playback;
● Master station support 1 HDD;
● Unlock: from master station or mobile APP;
● Support compatible with smart home device;
● Touch screen can be optional;
● Unique design, advance technology,let you enjoy convenient,pratical and outstanding effect when using the system.
.png)
General |
|
| Image sensor | 2.0 MP, 1/2.8'' SONY STARVIS IMX307, Day/Night |
| Sensitivity | 0.003lux @F1.2(Color) / 0.0001 lux@F1.2 (B/W) / 0 lux (IR LEDs - ON) |
| Lens | 3.7 mm, F2.0,pinhole |
| Field of view | 85°(Horizontal),V45°(Vertical) , |
| Field of view adjustment | -45 ~ 45° |
| Minimum working distance | 0.5m |
| WDR | 100dB Digital, 3 levels |
| Noise reduction | 2D/3DNR (level adjustment), SmartNR |
| Shutter time | 1/3~ 1/12000 s (Auto, maximum value setting) |
| S/N ratio | Min. 50 dB |
| Antiflicker | Antiflicker 50, 60 Hz |
| Ringing tone patterns | Set by the user |
| Other features | ICR, progressive scan |
Video |
|
| Compression | H.265,H.264 |
| Video streaming | 2 stream and all H265/H264 |
| Resolution | Mainstream: 1920x1080, 1280x720 (HD) |
| Additional stream: 640x480, 640х360, 352x288 | |
| Framerate | Up to 25 fps in all resolutions |
| Bitrate | 32 kbps ~ 10 Mbps |
| Image settings | Brightness, contrast, sharpness, saturation, exposure, |
| color, hue, quality, rotation, | |
| flip, mirror, AGC, white balance, | |
| exposure (value setting, AGC settings) | |
| Subtitles | Text, date, time, |
Audio |
|
| Audio output | Built-in speaker |
| Audio input | Built-in microphone(1pcs) |
Illumination |
|
| IR illumination | IR LED (1 pcs) |
| Control | Auto ON/OFF |
| Operating mode | By IR sensor, by video viewing, continuous |
| Wavelength | 940 nm |
| IR distance | Up to 10m |
Network & Interfaces |
|
| Network interface | 10Base-T/100Base-TX Ethernet |
| Protocols | TCP/IP, SIP v.2.0, HTTP, HTTPS, FTP, SMTP, |
| DDNS, DHCP, RTP, RTSP, UDP, NTP, ONVIF v.2.4, | |
| Alarm output | 1 channel (NO mode) |
| Interface for Contol system | 1-Wire |
| Connection | DHCP, static IP address |
| Users | Up to 3 accounts |
| Other features | MicroSD HC |
SIP |
|
| The number of SIP-accounts | 1 |
| SIP-call subs | Up to 5 |
| DTMF modes | RFC2833, SIP INFO, in-band |
Recording & events |
|
| Events | Motion detection, network failure,Video Lost |
| Motion detection | sensitivity adjustment, area |
| E-mail notification | At events: Images |
| FTP, memory card | At events: Images, video |
Operation |
|
| Power | POE, DC12v |
| Power consumption | Max. 5 W |
| Operating temperature | from -40°С ~ +70°С |
| Ingress protection | IP64 |
| Housing | Vandal resistant |
| Hosing materail | Metal |
| Dimensions | 75х175х52 mm |
| Weight | 585g |
| Color | Black (mat), gray «Metallic» (optional) |
| Control | third CMS |
| System requirements | Microsoft Internet Explorer 11/9.0 Windows 10/8/7/ |
|
|
IOS 6.0-9, Android 4.0 later
|
| MODEL | Master Station (Indoor) | |
| Hardware | CPU | ARM11 |
| LCD | Support 10inch，or 7inch，12inch | |
| Touch screen | Support and Optional | |
| Keyboard | Support 6pcs mechanical keys | |
| Security interface | Support 4ch wired alarm and wireless alarm | |
| Smart home | Support smart home, control,intelligent light control,smart door lock control,Smart socket control and so on... | |
| Network interface | 1*RJ45 | |
| Power | 1*DC | |
| Storage | Support 1*HDD strage | |
| Wifi | Wifi Module with usb | |
| Software | Software | Embedded LINUX |
| Network | TCP/IP,support UDP、DHCP、HTTP | |
| Codec | H.264 | |
| Audio compression | G.711 | |
| Description | speak with door machine and control center,support video and speak to each one | |
| Support Mobile APP，Remote smart home to control on mobile APP | ||
| Wired and wireless alarm send security message to control center | ||
| Support security indoor，Most support 4ch 1080p IPC | ||
| Support advertising play,picture and video play,Docking advertising agreement | ||
| Remote unlocking | ||
| Received the message from control center | ||
| Remote locking system | ||
| Electronic clock | ||
| doorbell | ||
| Prompt to Time,Date,Internet,message and HDD info | ||
| Volume adjustment | ||
| Chinese and Support for Multilingual | ||
