GT5216

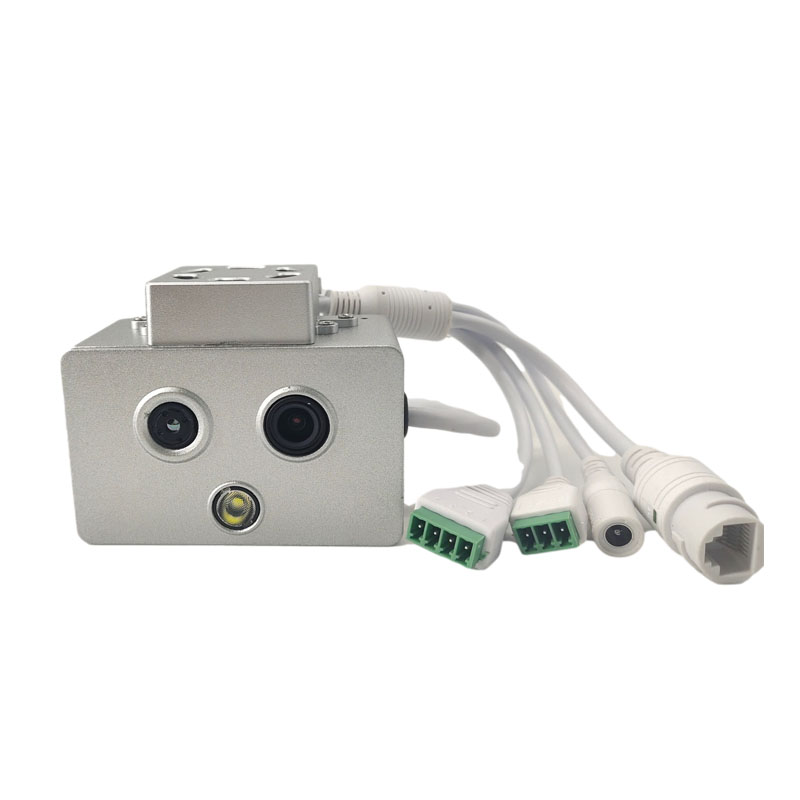

GT5216 Binocular Temperature Measuring Door Thermal Camera is designed with high-precision infrared temperature sensor for body surface temperature detecting in real time. It can be widely applicated in temperature measuring doors, advertising machines and other human body temperature screening equipment.
Key Feature
● High sensitivity sensor with 256 x 192 thermal resolution；
● Pixel Interval 12μm,Thermal sensitivity(NETD) is less than 60 mk (@25° C, F#=1.0)；
● Non-contact personnel temperature measurement,Precision:±0.3℃（Target temperature 35℃~50℃）；
● Body temperature measurement distance: 1m~5m；
● High quality imaging with 1920X1080 resolution；
● Embedded deep learning algorithm,Can detect and measure temperature of 20 people at the same time；
● Maximum output frame rate：Visible light:1920x1080@25fps/Thermal Imaging:256x192@25fps；
● HDMI directly output preview video, real-time display of the number of passers-by and abnormal temperature；
● Support SD card to store data records, and export data online；
● Built-in speaker and white light, support for abnormal temperature sound and light alarm.
Application with metal detector door
|
Thermal |
|
|---|---|
|
Moudel |
GT5216 |
|
Image Sensor |
Silicon oxide uncooled infrared focal plane detector |
|
Resolution |
256x192,Pixel Interval 12μm |
|
Lens |
Focal length：6mm，Field of view：35°（Horizontal ） |
|
Accuracy |
±0.3℃，Target temperature35℃~50℃ |
|
Distance |
1m-5m |
|
Black body calibration |
Support |
|
Optical |
|
|
Image Sensor |
1/2.8” 2.0M Pixel CMOS |
|
Resolution |
1920×1080P |
|
Min. Illumination |
Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
|
Field of View |
84° × 45° (H × V) |
|
Focal Length |
4mm |
|
Day & Night |
Mode IR cut filter with auto switch |
|
WDR |
≥80 Db |
|
AI |
|
|
Face capture |
Built-in deep learning AI algorithm, support simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, snapshot upload |
|
Temperature abnormal |
High temperature alarm (default threshold is 37.3℃) |
|
Network |
|
|
Protocol |
Support RTSP，RTP，TCP，UDP，UPNP，DHCP，PPPoE，ONVIF，GB/T 28181 |
|
Interface |
|
|
Power interface |
DC interface |
|
Network interface |
1ch 10/100BaseT Ethernet，RJ45 interface |
|
General |
|
|
Power |
DC 12V |
|
Powew consump |
≤5W（Without heating） |
|
Work Temperature/Humidity |
From -20°C to 55°C; Humidity: 95% or Less |
|
Protection Level |
IP65 |
|
Dimension |
80 mm × 42 mm × 49 mm |
|
Weight |
Approx. 1.0 kg |
