TBD001
It is mainly used for real-time calibration with thermal imaging cameras to eliminate errors caused by the complex environment of the Temperature Screening System. It can effectively reach ±0.3°C measurement accuracy, improve the reliability of the Temperature Screening System and reduce the error detection rate.
Connect the blackbody to 220 V power supply via power interface of power switch, turn on the power switch (push the button of the power supply to the open position), the power indicator light is on, the display screen shows the default temperature 35.0 degrees, wait 5minutes when blackbody is stable, then can be used normally.

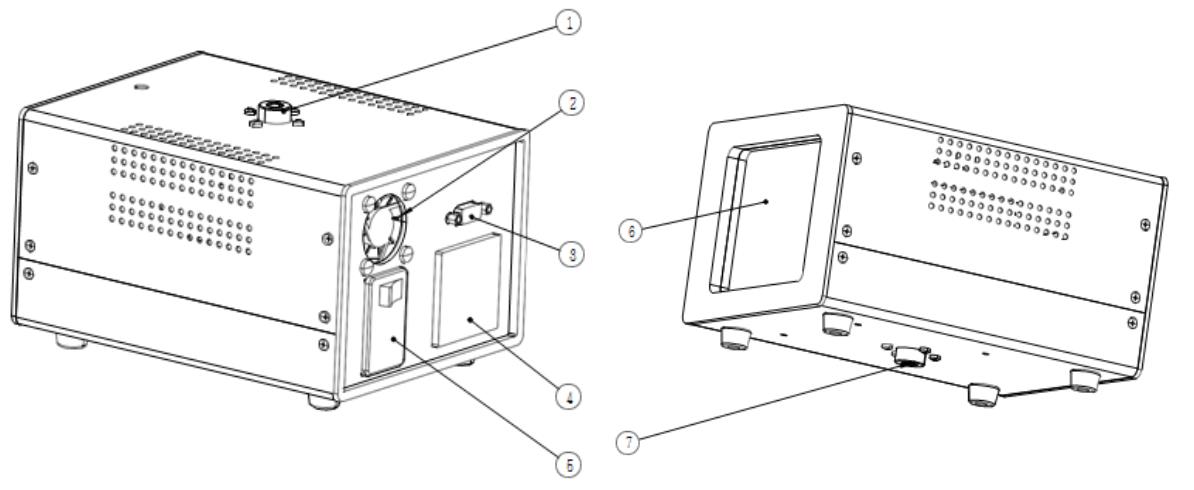

2.Interface Description
|
NO. |
Name |
Specification |
|---|---|---|
|
1 |
Upper port |
1/4—200NC |
|
2 |
Cooling fan |
DC brushless |
|
3 |
Communication Interface |
spare |
|
4 |
Control panel |
/ |
|
5 |
Power |
AC 100-220V/10A |
|
6 |
Target surface |
100*80mm |
|
7 |
Lower port |
1/4—200NC |
Note:
1.Please ensure correct power input.2.Please don't touch the heating area of black body at will to prevent burns.
3.The product is best used at room temperature about 25 degrees to ensure equipment accuracy.
4.Avoid use in a damp environment that exceeds the operating temperature, so as not to affect the accuracy of the equipment.

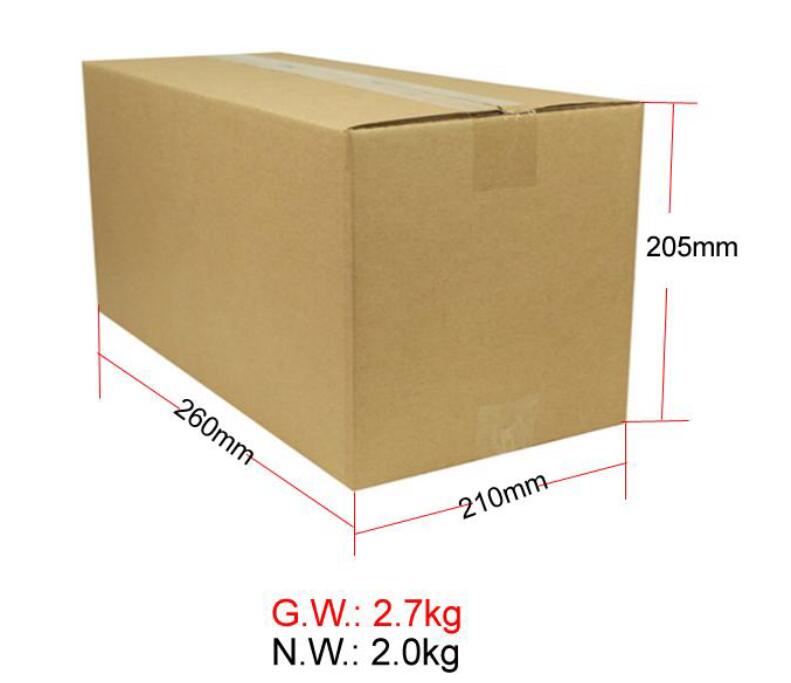

Packing list:
Service:
The shelf life of this product is 1 year, within 1 year non-human damage, BOVI provides free repair serv.
