TA8203R-7X

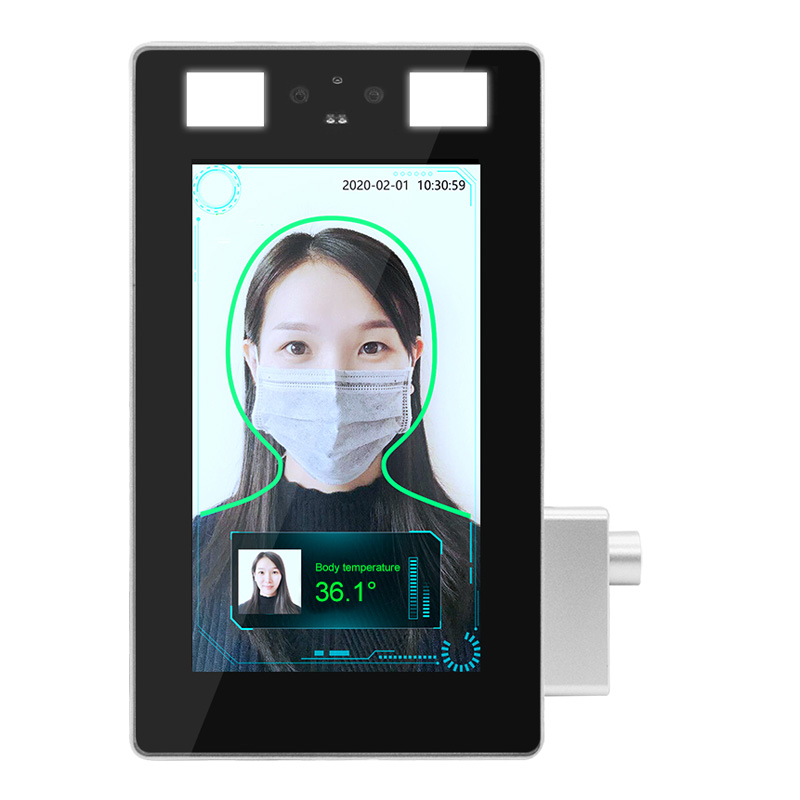

This Wrist Temperature Detection and Face Recognition Tablet Network Camera device
can detect elevated skin temperatures brought on by various external causes, such
as the Coronavirus, with pinpoint accuracy. This makes them a non-invasive
first step for febrile detection. Perfect for adjunct use in hospitals,
sub-acute health settings, public areas
(i.e. airports), and more. Also this device adopts deep learning algorithm, which
helps to recognize the face faster and
more accurate. It also supports multiple authentication modes: 1:1 face match, etc. When installed on
the turnstile, it can be applied in multiple scenarios, such as buildings,
businesses financial industries, and other important areas.
Mode |
Wrist Temperature Detection and Face Recognition Tablet Network Camera |
|
TA8203R-7X |
||
RAM |
RAM :8Gb, Flash:16G |
|
Display |
7 inch LCD |
|
Thermal |
||
Image Sensor |
Single point high precision temperature sensor |
|
Temperature Measurement Range |
Range:35~42℃ Precision:±0.1°C |
|
Detection distance |
10cm-50cm, optimal:10cm |
|
Optical |
||
Lens Length |
1.8mm |
|
Field of View |
118° |
|
Min. Illumination |
Color: 0.005Lux @ (F1.2, AGC ON) |
|
WDR |
≥100dB |
|
S/N Ratio |
≥46dB(AGC OFF) |
|
Shutter Speed |
1/5s to 1/20,000s |
|
White Balance |
Auto, indoor, outdoor, sodium lamp mode, manual |
|
Day & Night |
Fixed color |
|
Video Compression |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
Max Resolution |
1920x1080@30fps |
|
Resolution |
Main Stream :1920x1080,1280x960,1280x720,720x576 |
|
Sub stream :640x480,352x288,320x240,176x144 |
||
MJPEG :1920x1080,1280x720,shut down |
||
Stream |
CBR,VBR( from 32Kbps to 10Mbps) |
|
Audio Compression |
G711,PCM |
|
AI |
||
Face Capacity |
Max. 50,000 face |
|
Recognition Speed |
<100ms |
|
Live Detection |
Support |
|
Mask Detection |
Support |
|
General |
||
Power Interface |
DC12V |
|
Network Interface |
1 10M/100M Ethernet port (RJ-45) |
|
Wiegand |
1 channel |
|
Digital interface |
1 channel |
|
Power Consumption |
5W |
|
Work Temperature/Humidity |
0%-90% RH(Non-condensing) |
|
Operating Temperature |
10°C ~50°C |
|
Dimension |
216 mm × 125 mm × 20 mm (with bracket) |
|
Weight |
Approx. 1.0 kg |
