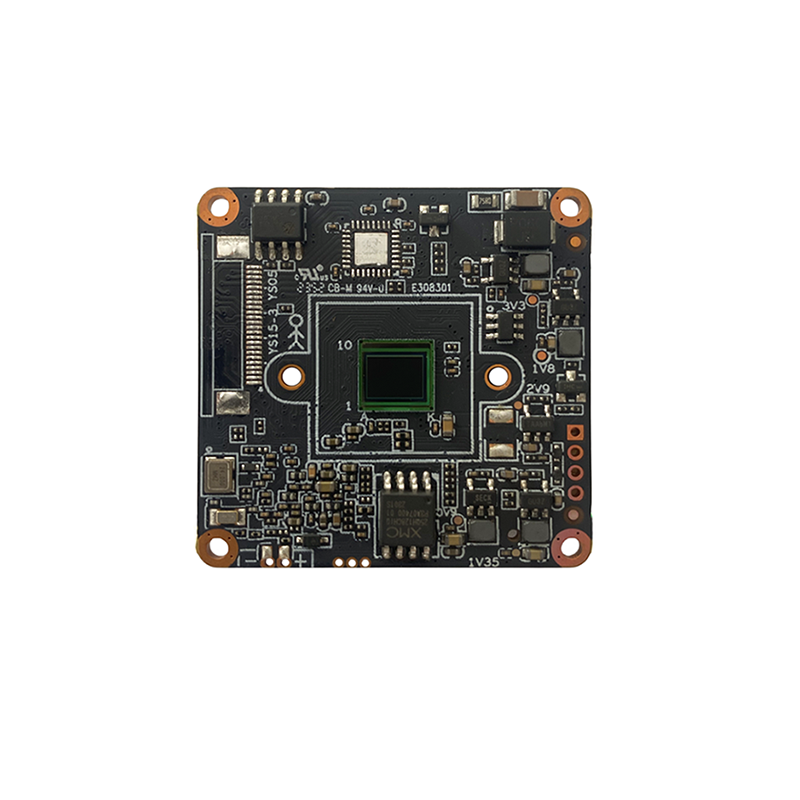

IM50A01

Image Sensor

Sensor

1/2.8” 5MP Sony IMX335 CMOS

Maximum Resolution

2592x1944@30fps

Minimum Illumination

0.02lux @F1.2(Color) / 0.002 lux@F1.2 (B/W)

Camera

AGC

Auto/Manual

S/N Ratio

≥50dB（AGC OFF）

Shutter Speed

1/2 - 1/20 ,000s,Slow shutter support

Wide Dynamic Range

Digital WDR≥73.7dB

Exposure Mode

Auto/ Manual/shutter mode

AWB

Yes

Day & Night

External control（IR Cut Filter）

Light Control

Support IR/White/dual light, three mode independent control

Compression

Video Compression

H.265+/H.265/H.264 Main Profile /M-JPEG

Audio Compression

G711U, G711A,PCM

Image Resolution

Main Stream

2560x1440/1920x1080@30fps

Sub Stream

640x480/640x360@30fps

General Protocol

Network Protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P

ONVIF protocol

Yes

Compatibility

Support XM protocol

P2P

Support TUYA APP

Support for Tuya APP（Android, IOS）

Function

Web Configuration

Yes

0SD

Yes

Motion Detection

Yes

Humanoid Detection

Yes

Reset

Support cable reset button(opticnal)

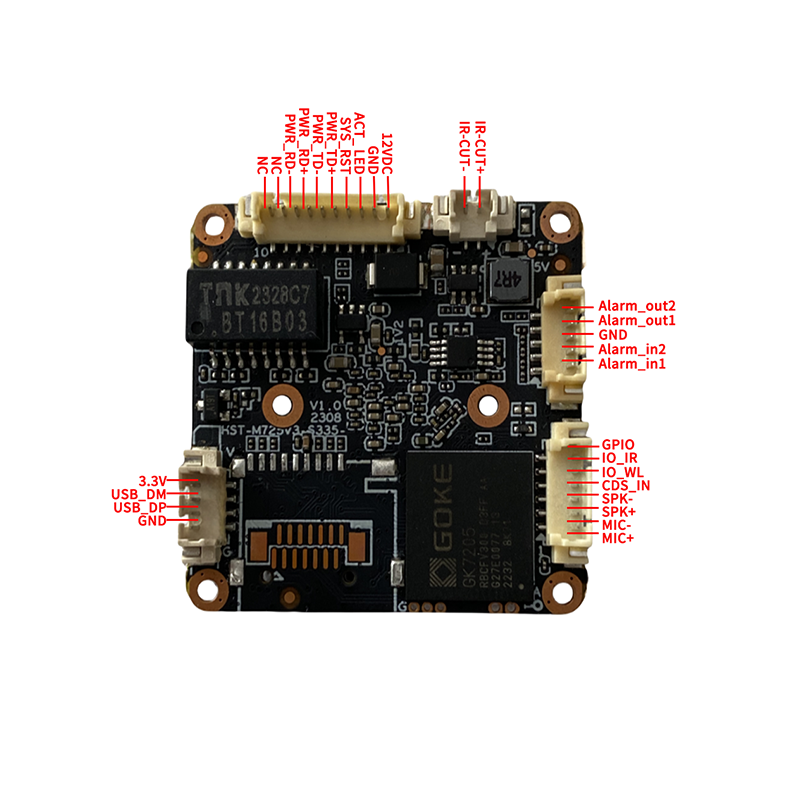

Interface

Wired

1ch 10/100 BaseT Ethernet,RJ45 interface

Audio

Microphone input/output

Amplifier

Built-in amplifier

Alarm

2 ports input, 2 ports output

UART

Support

USB

Support

TF Card

Optional and max. 512G (reserved extended SD slot)

Other

Power Supply

12VDC

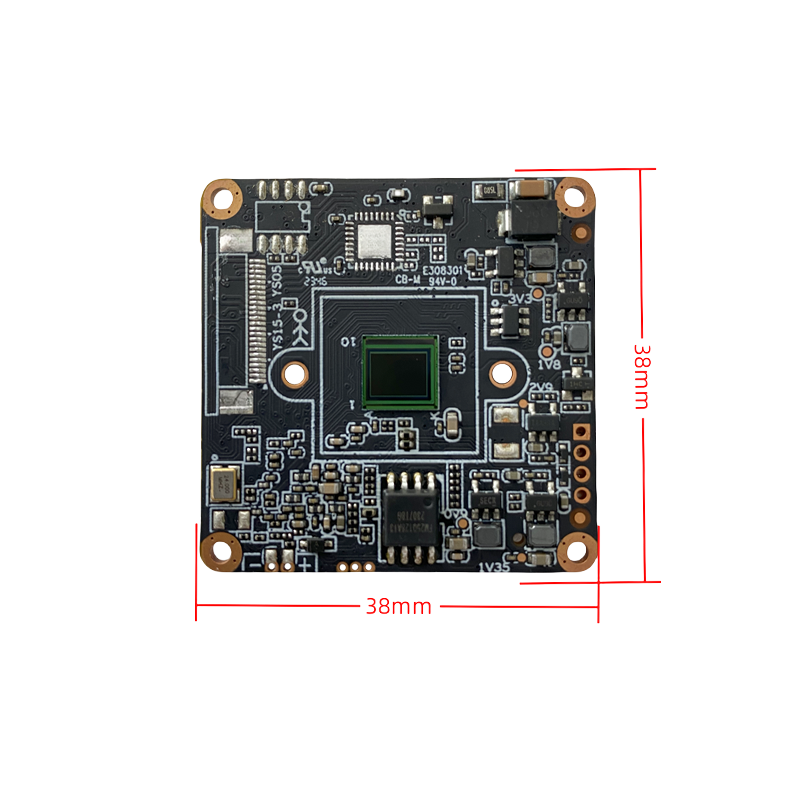

Size

38x38mm

Operation Temperature

-10°C~50°C

Working Humidity

≤90%RH(non-condensing)
