KV8558

Image sensor

Screen size

5MP, 1/2.7'', Day/Night

Maximum Resolution

2592x1944@30fps

Minimum illumination

B/W：0.03Lux

Video parameters

Resolution

Mainstream: 2560x1440/1920x1080/@30fps

Sub stream: 640x480/640x360@30fps

FOV

Horizontal: 125°Vertical: 65°

WDR

DWDR

Supplement light

IR light,940nm

Video compression standard

H.265/H.264

Audio parameters

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G711

Audio output

1 built-in loudspeaker

Audio quality

noise suppression and echo cancellation

Volume adjustment

Adjustable

Network parameters

Network protocol

HTTP/TCP/IP/HTTPS/NTP/ONVIF/RTSP/DHCP/SIP

Device interfaces

Alarm input

2

Network interface

1 RJ-45, 10/100 Mbps self-adaptive

General

Button

1 physical button

Installation

Surface mounting

Protective level

IP65,Metal vandalproof

Working temperature

-40 °C to 70 °C

Working humidity

10% to 90% (no-condensing)

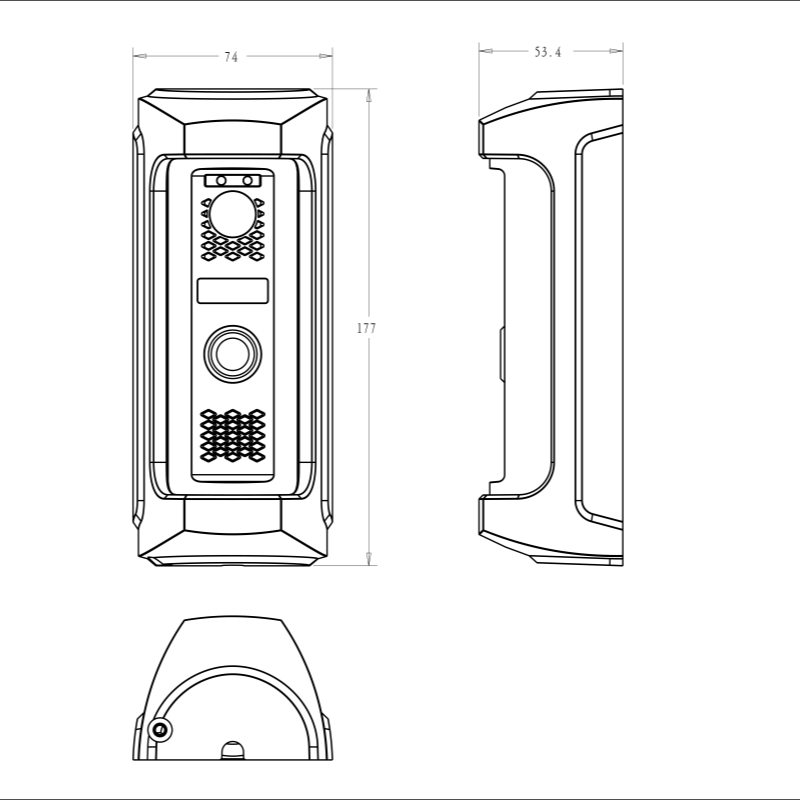

Dimension (W × H × D)

/

Power supply

12VDC, PoE

Application environment

Outdoor and Indoor
