EC-IP8655U

Camera

Sensor

8MP 1/2.9" CMOS

Effective Pixels

3840x2160

Minimum illumination

Color 0.2Lux/F1.4

Light  distance

Without

Electronic shutter

1/50(1/60)s-1/100,000s

Lens

Focus f=2.7-14mm(F1.8-3.2)  5X optical zoom

Lens mount

M12

Image resolution

Main Stream

3840x2160@60fps

Sub Stream

640×360,720×480@30fps

General protocol

Protocol

HTTP/Onvif/DHCP/DDNS/NTP

Interface

Wired

10Base-T/100Base-TX

Network protocol

RJ45

Other

Power supply

POE IEEE802.3at/af

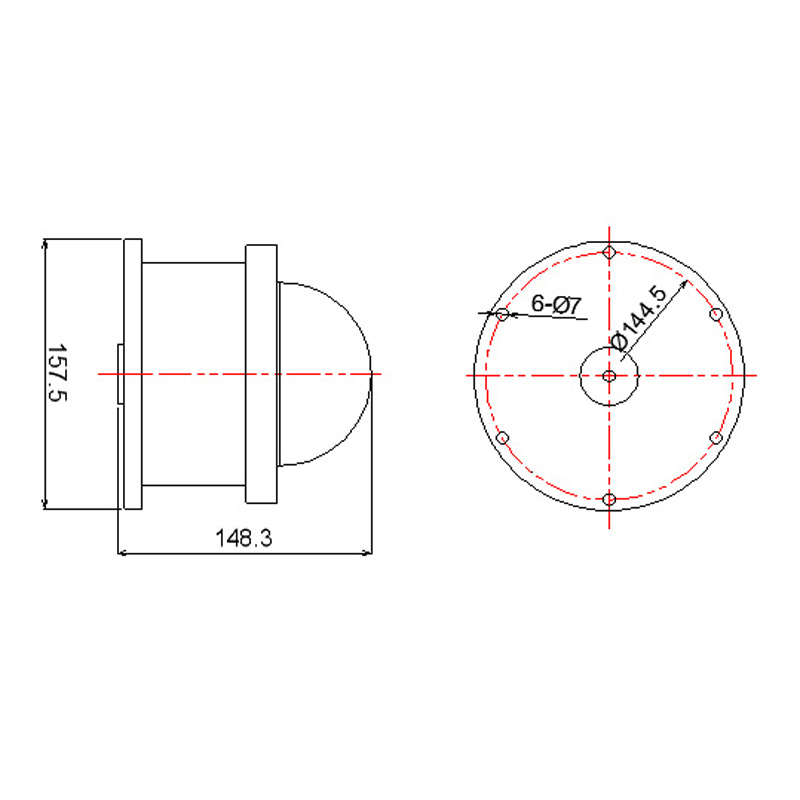

Size

Ø 160 x 150mm

operation temperature

-10°C- +60°C

Material

Stainless steel 316L

Cable

CAT6

Net weight

N.W.5kg +cable 0.12kg/m
