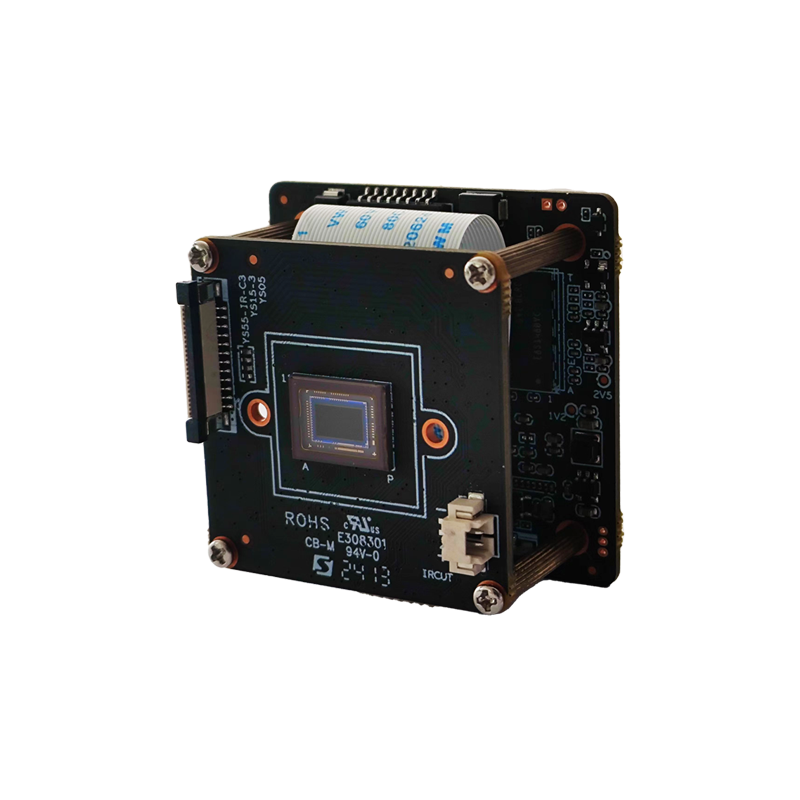

Image Sensor

Model

IM80A01

Sensor

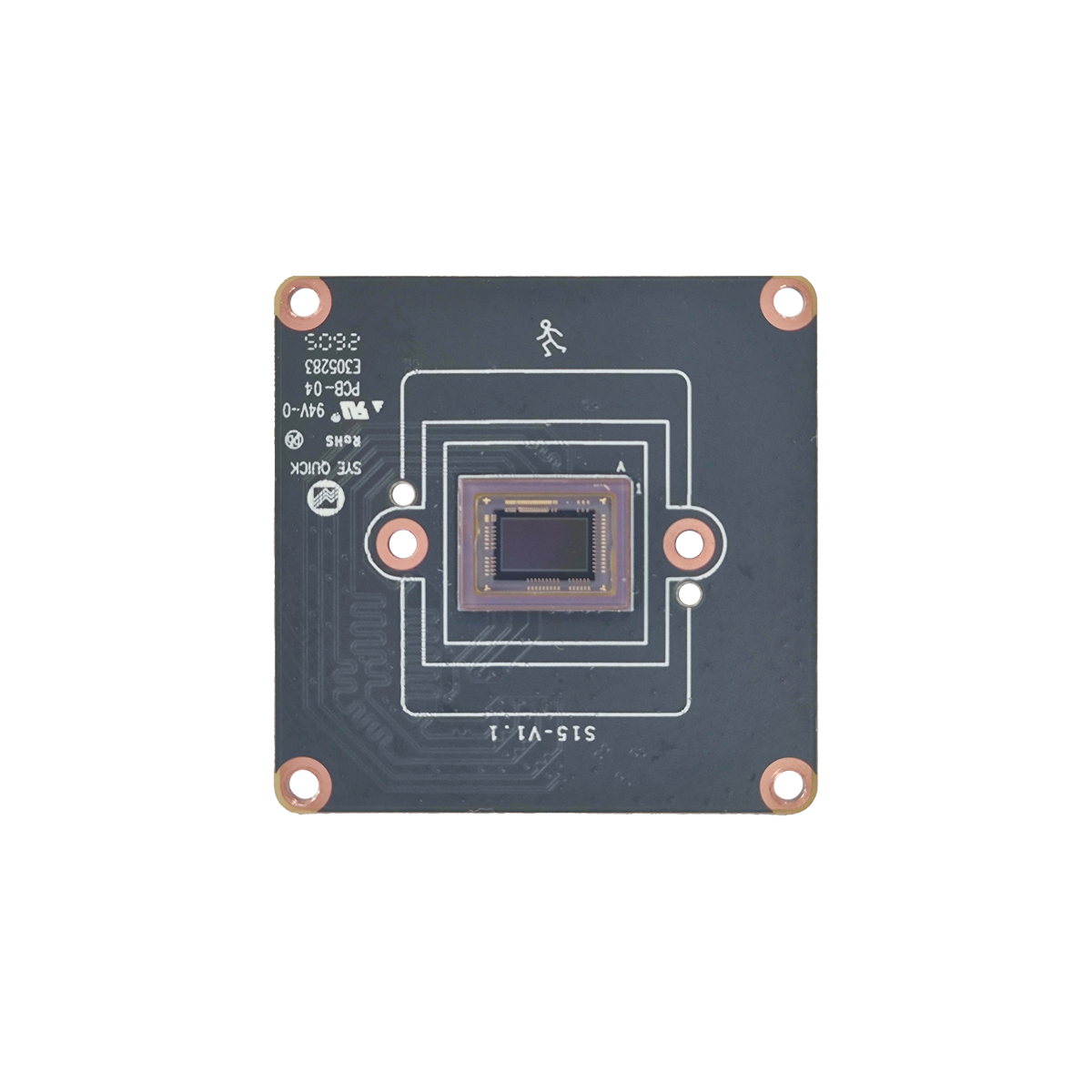

1/2.8” 8MP Sony IMX415 STARVIS CMOS

Maximum Resolution

3840x2160@30fps

Minimum Illumination

0.01lux @F1.0(Color) / 0.005 lux@F1.0 (B/W)

Camera

AGC

Auto/Manual

S/N Ratio

≥50dB（AGC OFF）

Shutter Speed

1/2 - 1/20 ,000s,Slow shutter support

Wide Dynamic Range

Digital WDR

Exposure Mode

Auto/ Manual/shutter mode

AWB

Yes

Day & Night

External control（IR Cut Filter）

Light Control

Support IR/White/dual light, three mode independent control

Compression

Video Compression

HEVC/H.264 Main Profile /M-JPEG

Audio Compression

G711U,G711A,PCM

Image Resolution

Main Stream

3840x2160/2560×1440/1920×1080@30fps

Sub Stream

640×480/480x360/352×288/176×144@30fps

General Protocol

Network Protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P

ONVIF protocol

Yes

Compatibility

Support HIK/XM protocol

P2P

Support TUYA APP

Support for Tuya APP on Android, IOS(Not Default)

Function

Web Configuration

Yes

OSD

Yes

Motion Detection

Yes

Humanoid Detection

Yes

Reset

Support cable reset button(opticnal)

Amplifier

Built-in amplifier

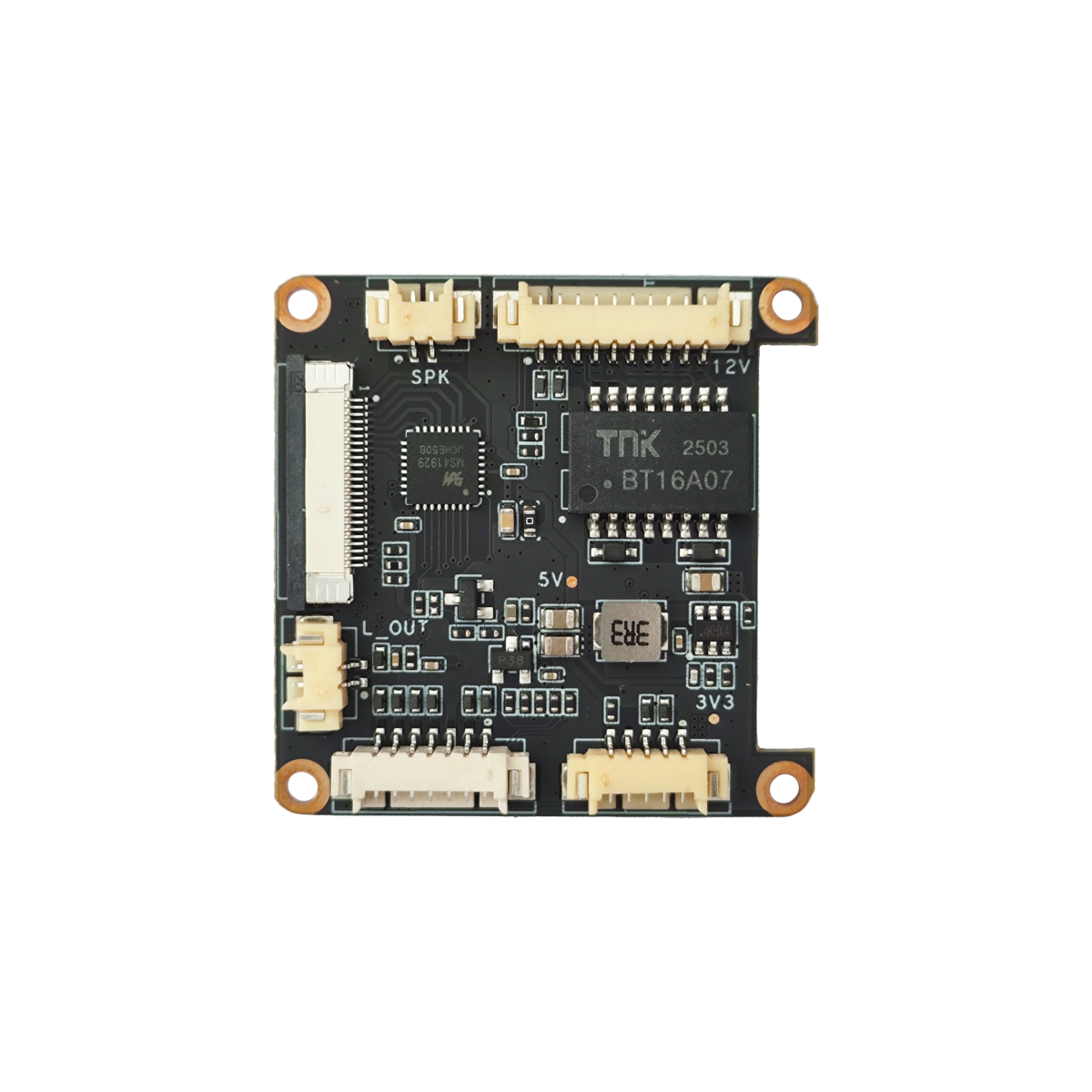

Interface

Wired

1ch 10/100 BaseT Ethernet,RJ45 interface

Audio

Microphone input/output

UART

Support

ALARM

Support(reserved extended alarm)

USB

Support

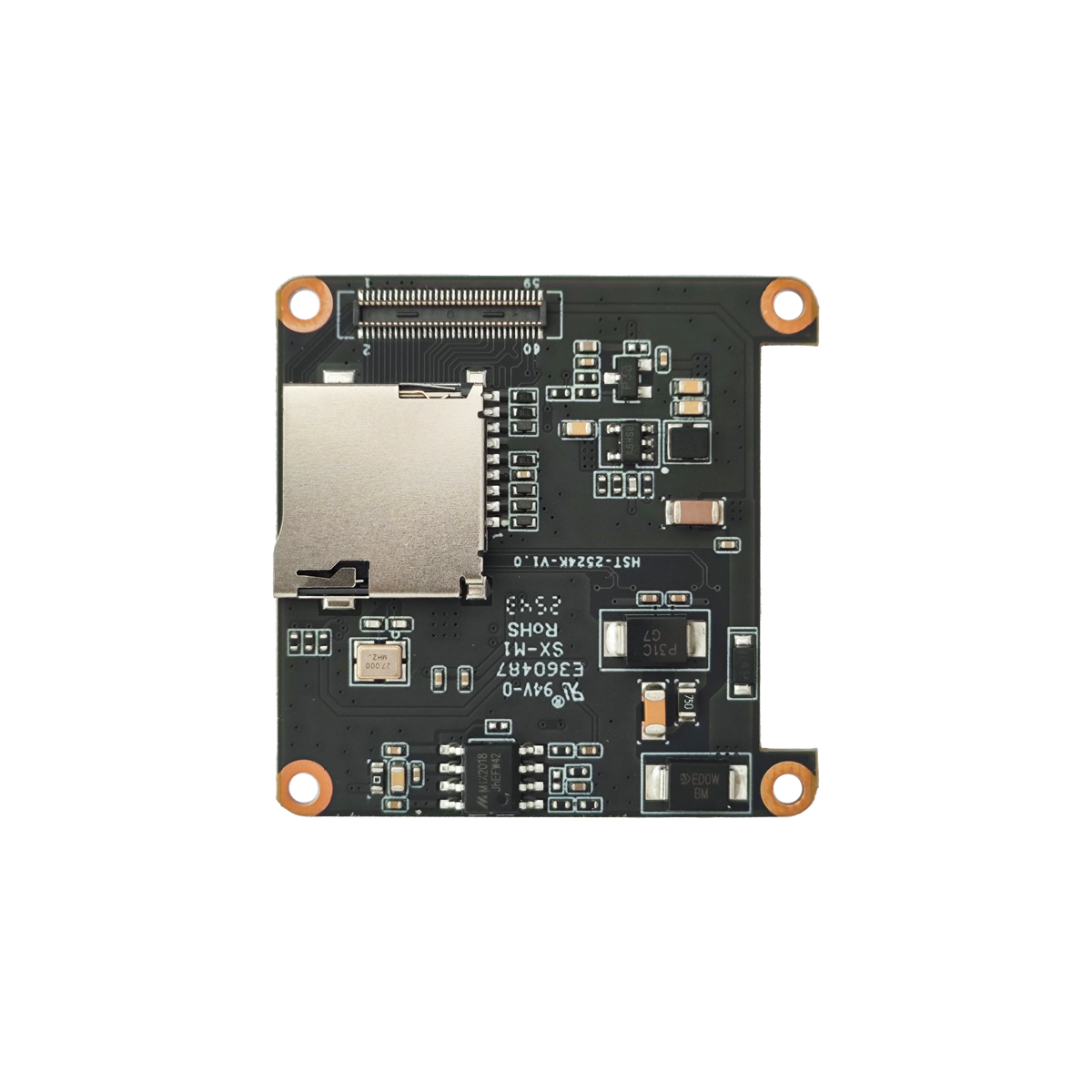

TF Card

Optional and max 512G (reserved extended SD slot)

Other

Power Supply

DC 12V

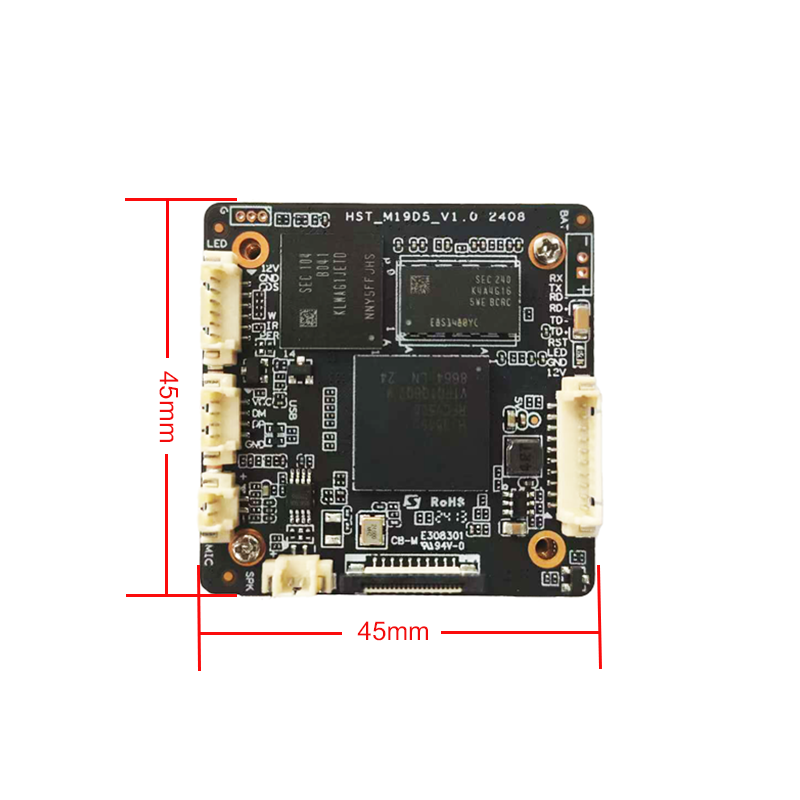

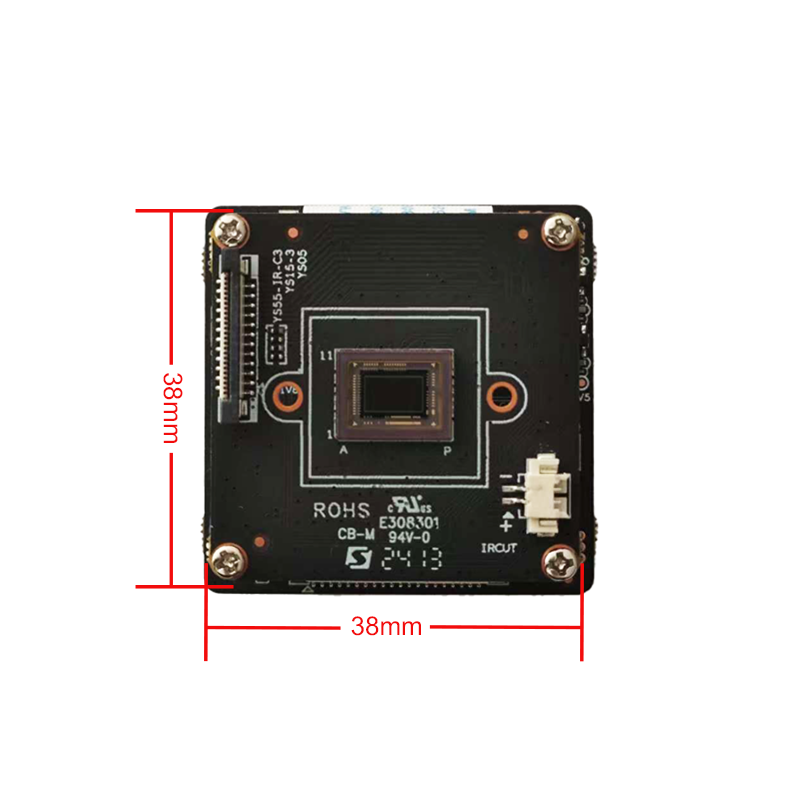

Size/Weight

38x38+45x45mm /21g

Operation Temperature

-10°C~50°C

Working Humidity

≤90%RH(non-condensing)
