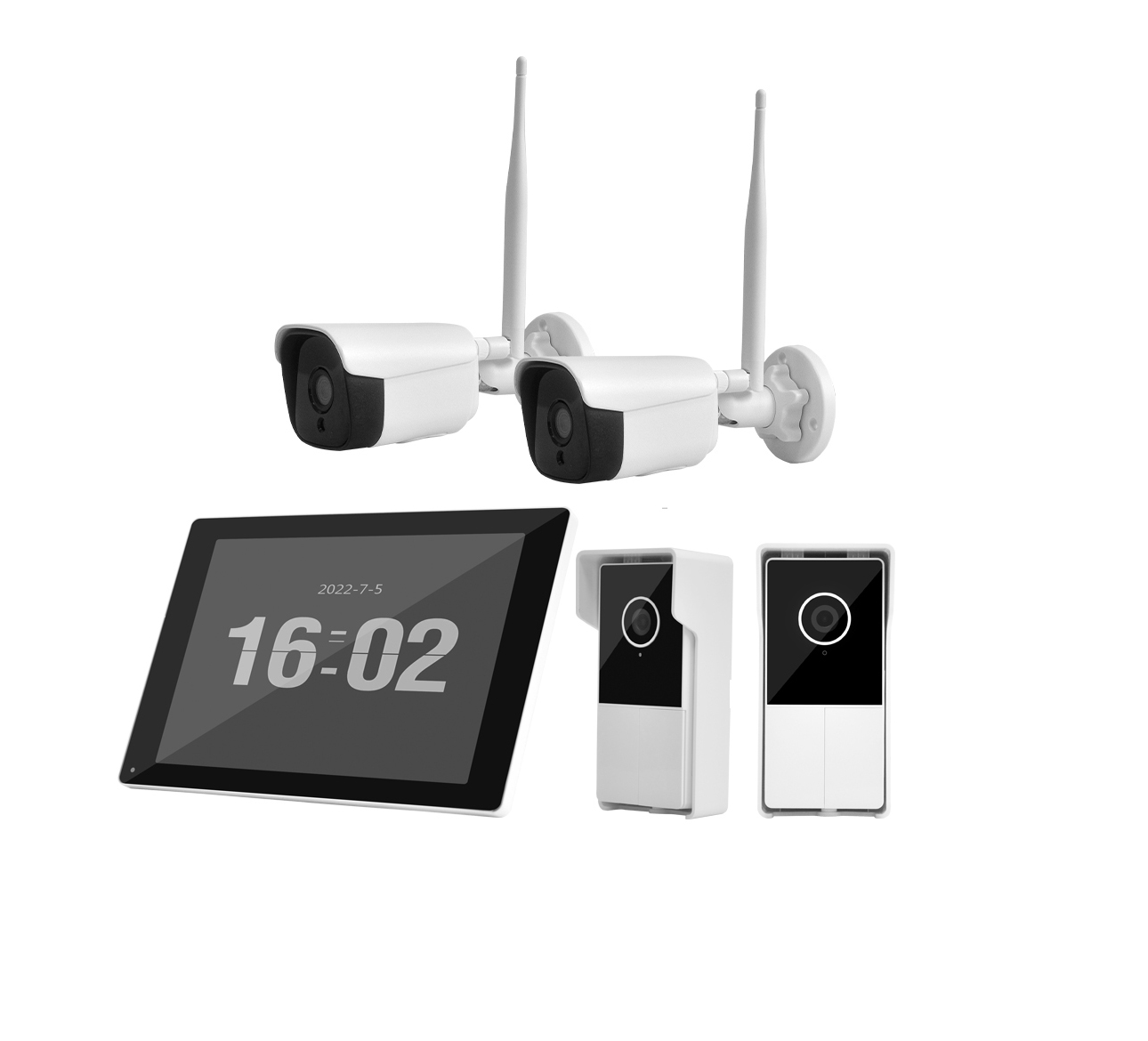

Model

DK8354-W Camera

System

LINUX,Single core 32-bit DSP

Camera

3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night

Video Compression

H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC

Frame Rate

3MP@15fps

Image Output

Main stream:2304×1296，1280×720

Sub stream:640×360

Audio Interface

1*MIC input,1*loudspeaker output;

Audio Compression

G.711,Support two-way voice intercom function and audio and video synchronization;

Network

10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP

Protocols

HTTP,TCP/IP,IPv4,DHCP,NTP

WIFI

1*DC3.3V WiFi mode,2.4G

Signal Interface

1*IRCUT interface, support the control of IR-CUT and image linkage;

Upgrade Maintenance

Support OTA upgrade

Business Functions

Support OSD, real-time video transmission, mobile detection and human shape detection

ONVIF

UnSupport

Power Supply

DC12V,≤2.5w

Dimensions

69mm×68mm172mm（W×D×H）

Working Temperature

-10℃～+60℃

Model

             DK8354-W Plastic Doorbell

System

LINUX,Single core 32-bit DSP, hard compression, watchdog, 8MB FLASH, built-in 64MV DDR

Camera

3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night

Video Compression

H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC

Frame Rate

3MP@15fps

Image Output

Main stream:2304×1296，1280×720

Sub stream:640×360

Audio Interface

1*MIC input,1*loudspeaker output;

Audio Compression

G.711,Support two-way voice intercom function and audio and video synchronization;

Network

10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP

Protocols

HTTP,TCP/IP,IPv4,DHCP,NTP

Signal Interface

1*IRCUT interface, support the control of IR-CUT and image linkage;

Upgrade Maintenance

Support OTA upgrade

Business Functions

Support OSD, real-time video transmission, mobile detection and human shape detection

ONVIF

UnSupport

Remote Unlock

Support

Power Supply

DC12V

Dimensions

67.32mm×66.92mm×134.34mm（W×D×H）

Working Temperature

-10℃～+70℃

Model

DK8354-W Master Station

Image Signal Processor

SOC

Operating System

LINUX

LCD

10.1-inch TFT LCD

Resolution

1280*800

Operation method

Capacitance touch screen

Operation interface

Flat style UI interface, easy to operate

Outdoor camera

Max support 4*Outdoor camera

Indoor Extension Station

Max support 2*Indoor Extension Station

Video Compression

H265/H264

Record

Support scheduled recording and event recording

Storage

Built-in 64GB SSD

TF Card

1 * TF Card ,max 512G

USB Interface

1 * USB 2.0

Audio Input

Built-in microphone

Audio Output

Built-in speaker

Audio Compression Standard

G.711U

Audio Compression Rate

64Kbps

Sound Quality

Supports noise suppression and echo cancellation

APP

Support tuya APP,Support remote intercom and unlock

Network Interface

1 RJ-45 10/100M self-adaptive

Alarm output

2-ch

Alarm Output

1-ch

Power Supply

DC12V

Power Consumption

＜10W

Working Temperature

-10℃ ～55℃

Working Humidity

10%～90%

Dimensions

270mm*165mm*30mm
