EC-IP3855U

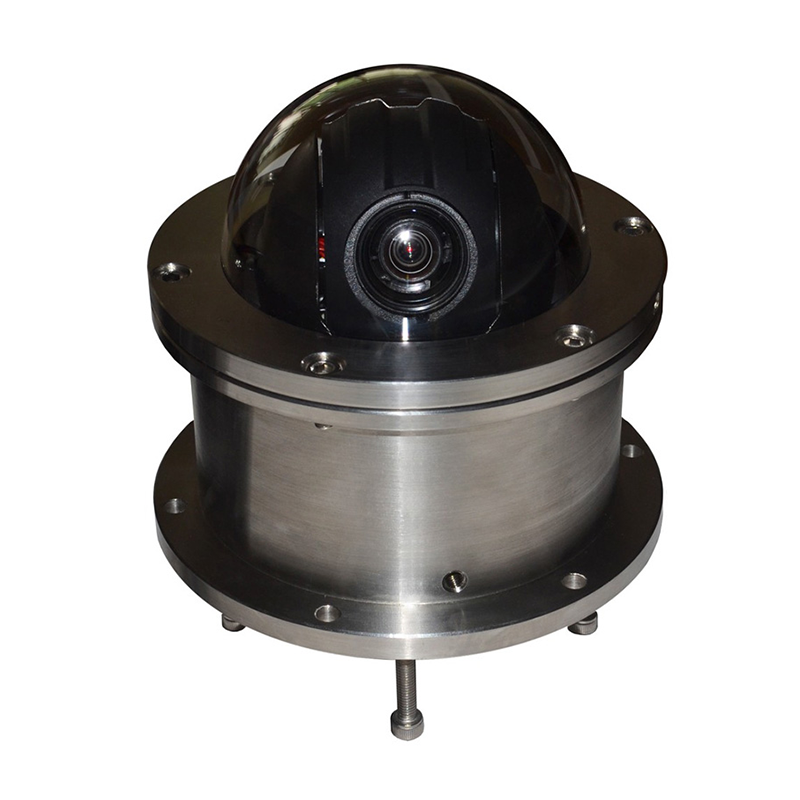

EC-IP3855U 1080P 100M IP Underwater PTZ POE Camera using stainless steel 316L, Support POE, IP68 Protection Level, Support multiple network monitoring: Web viewer, CMS,Max. water depth: 100m, it can be widely used in swimming pools, aquaculture, oceans and other underwater monitoring scenes.
EC-IP3855U
1080P 100M IP Underwater PTZ POE Camera
Key Features：
● 1/2.7”2MP CMOS Sensor● 1920×1080@30fps
● Support onvif
● Focus f=2.7-14mm(F1.8-3.2)
● Max.128 preset,privacy covering zone: 4 areas
● Preset speed:Max.360°/s
● Pan: 360°continuously; Tilt: 180°auto flip on/off
● Underwater depth 100m Max
|
EC-IP3855U |
|
|
Camera |
|
|
Sensor |
1/2.7" CMOS |
|
Maximum resolution |
1920×1080@30fps |
|
Minimum illumination |
Color 0.5Lux/F1.4, |
|
Light distance |
Without |
|
Electronic shutter |
1/50(1/60)s-1/100,000s |
|
Lens |
Focus f=3.8-38mm(F1.8-3.2)10X10 zoom |
|
Lens mount |
M12 |
|
Image resolution |
|
|
Main stream |
1920x1080@30fps |
|
Sub stream |
640×360,720×480@30fps |
|
General protocol |
|
|
Protocol |
HTTP/Onvif/DHCP/DDNS/NTP |
|
Interface |
|
|
wired |
10Base-T/100Base-TX |
|
Network protocol |
RJ45 |
|
Other |
|
|
Power supply |
POE IEEE802.3at/af |
|
Size |
Ø 160 x 150mm |
|
Operation temperature |
-10°C- +60°C |
|
Material |
Stainless steel 316L |
|
Cable |
CAT6 |
|
Net Weight |
N.W.5kg +cable 0.12kg/m |
-
