IM40B01

● 1/1.8" 4.16MP Sony IMX664 STARVIS CMOS

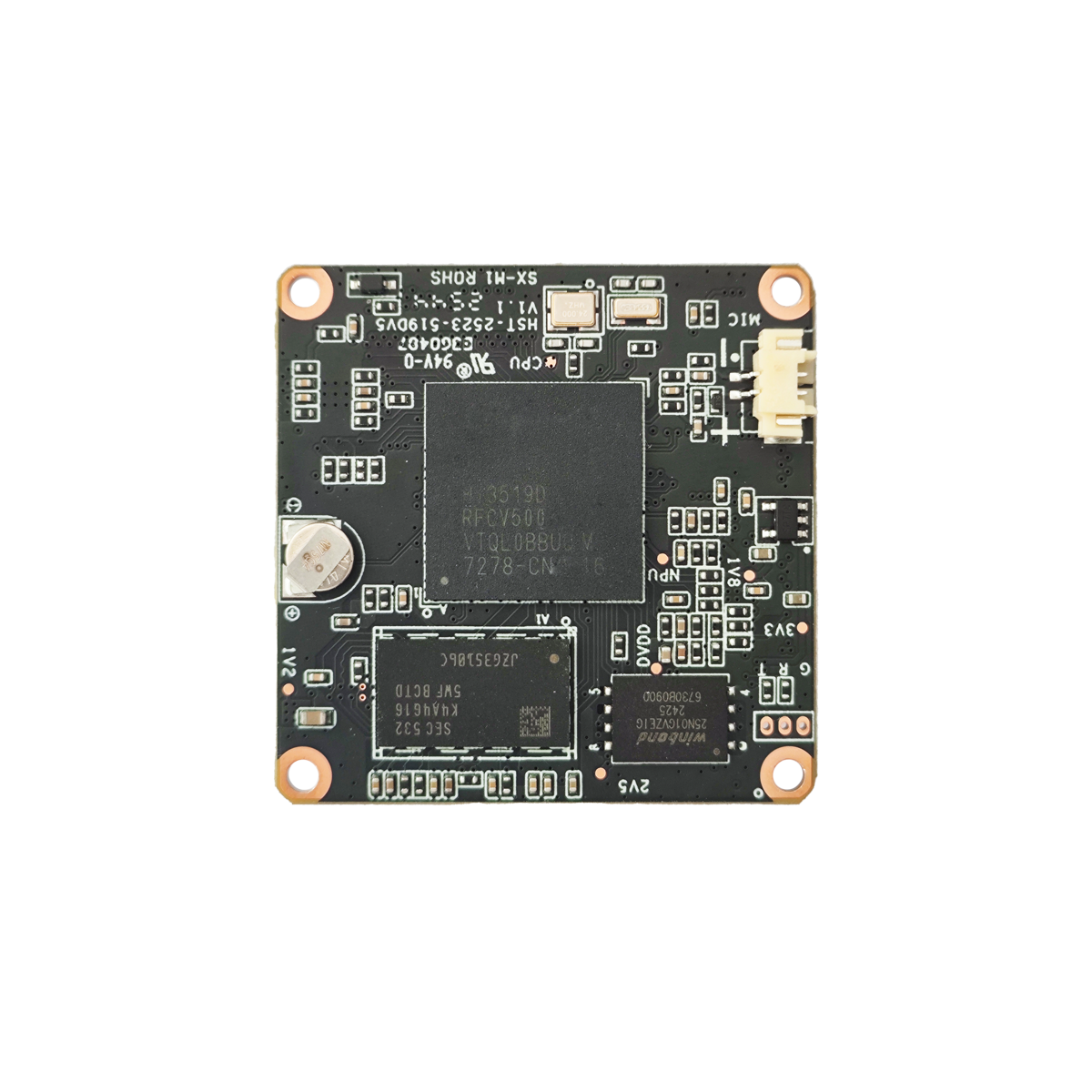

● Powered by 3519DV500 AI SOC with 2.5Tops

● Maximum resolution up to 2688×1520@30fps

● Support humanoid detection, motion detection

● Support the P2P on Android, IOS(No-default)

● Support two way audio, Built-in audio amplifier function

● Support ONVIF protocol

● Open SDK, CGI, Support OPENIPC development

Image Sensor
Model	IM40B01

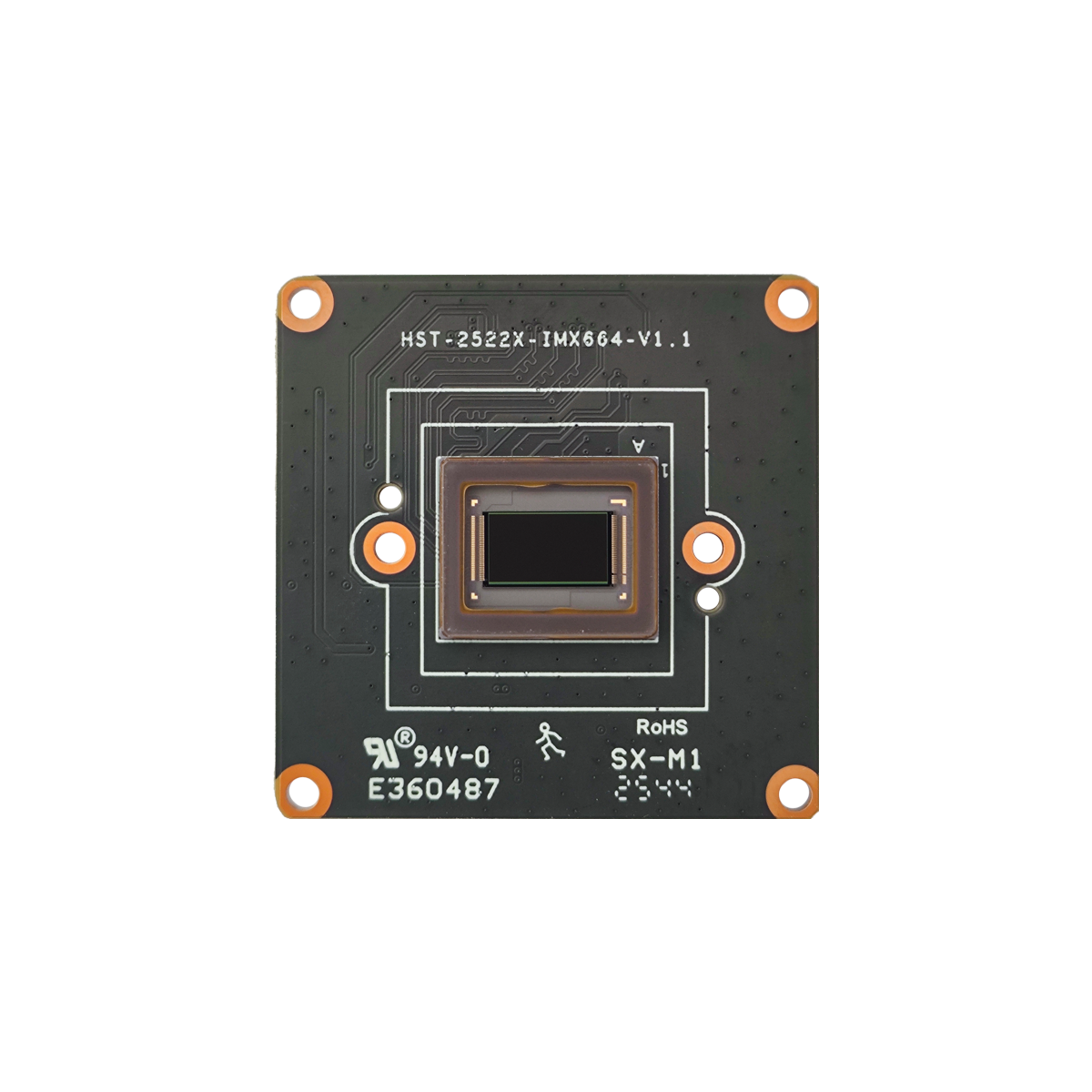

Sensor	1/1.8” 4.16MP Sony IMX664 STARVIS2 CMOS
Maximum Resolution	2688x1520@60fps
Minimum Illumination	0.005lux @F1.0(Color) / 0.001 lux@F1.0 (B/W)
Camera
AGC	Auto/Manual
S/N Ratio	≥50dB（AGC OFF）
Shutter Speed	1/2 - 1/20 ,000s,Slow shutter support
Wide Dynamic Range	Digital WDR
Exposure Mode	Auto/ Manual/shutter mode
AWB	Yes
Day & Night	External control（IR Cut Filter）
Light Control	Support IR/White/dual light, three mode independent control
Compression
Video Compression	H.265/H.264 Main Profile /M-JPEG
Audio Compression	G711U,G711A,PCM
Image Resolution
Main Stream	2688×1520@60fps/2304x1296@90fps/1920×1080@120fps
Sub Stream	800x448/640×480/480x360/352×288@60fps
General Protocol
Network Protocol	TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P
ONVIF protocol	Yes
P2P
Support TUYA APP	Support for Tuya APP on Android, IOS(Not Default)
Function
Web Configuration	Yes
OSD	Yes
Motion Detection	Yes
Reset	Support cable reset button(optional)
Amplifier	Built-in amplifier
Interface
Wired	1ch 10/100 Base Ethernet,RJ45 interface
Audio	Microphone input/output
UART	Support
ALARM	Support
USB	Support
TF Card	Support,up to 256GB
Other
Power Supply	DC 12V

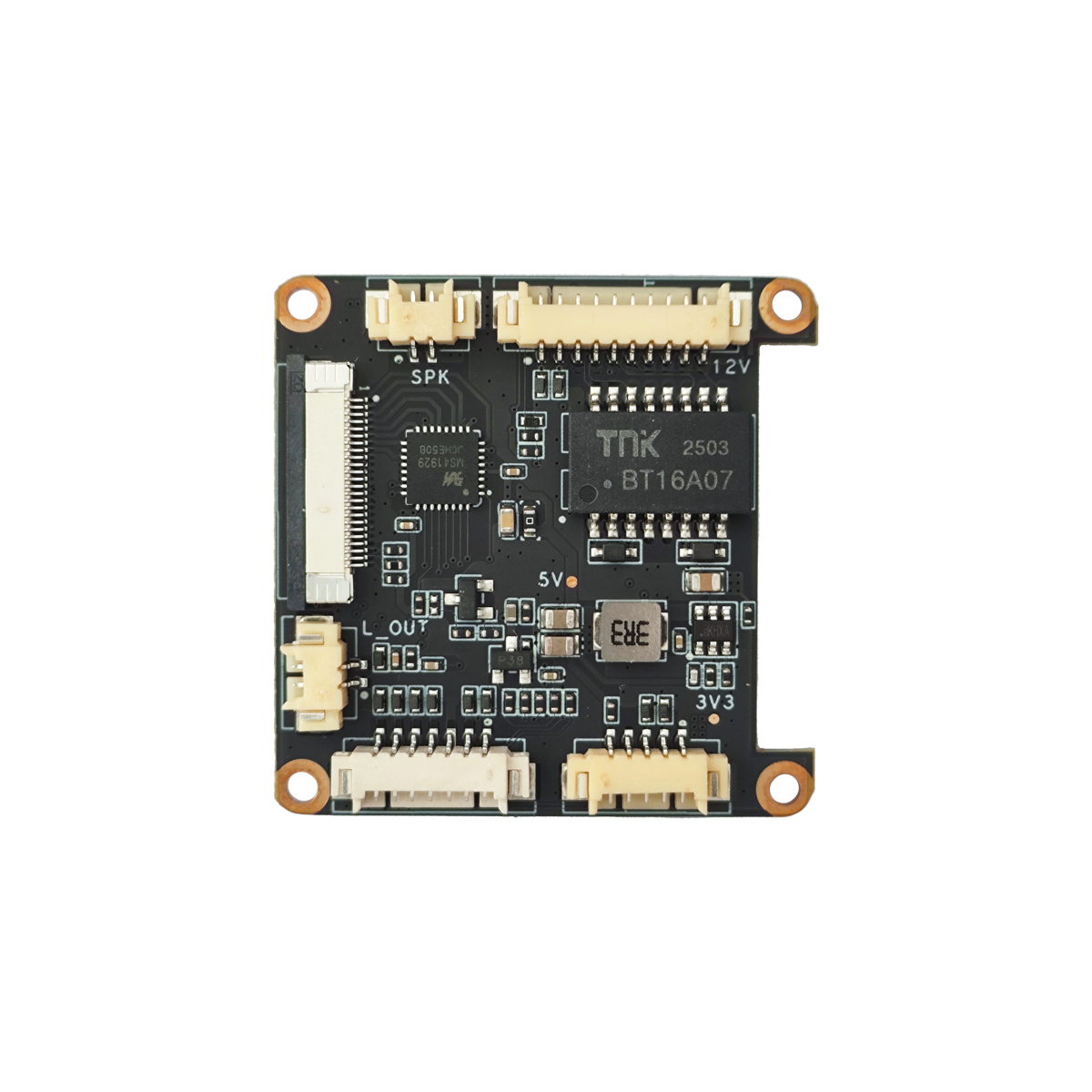

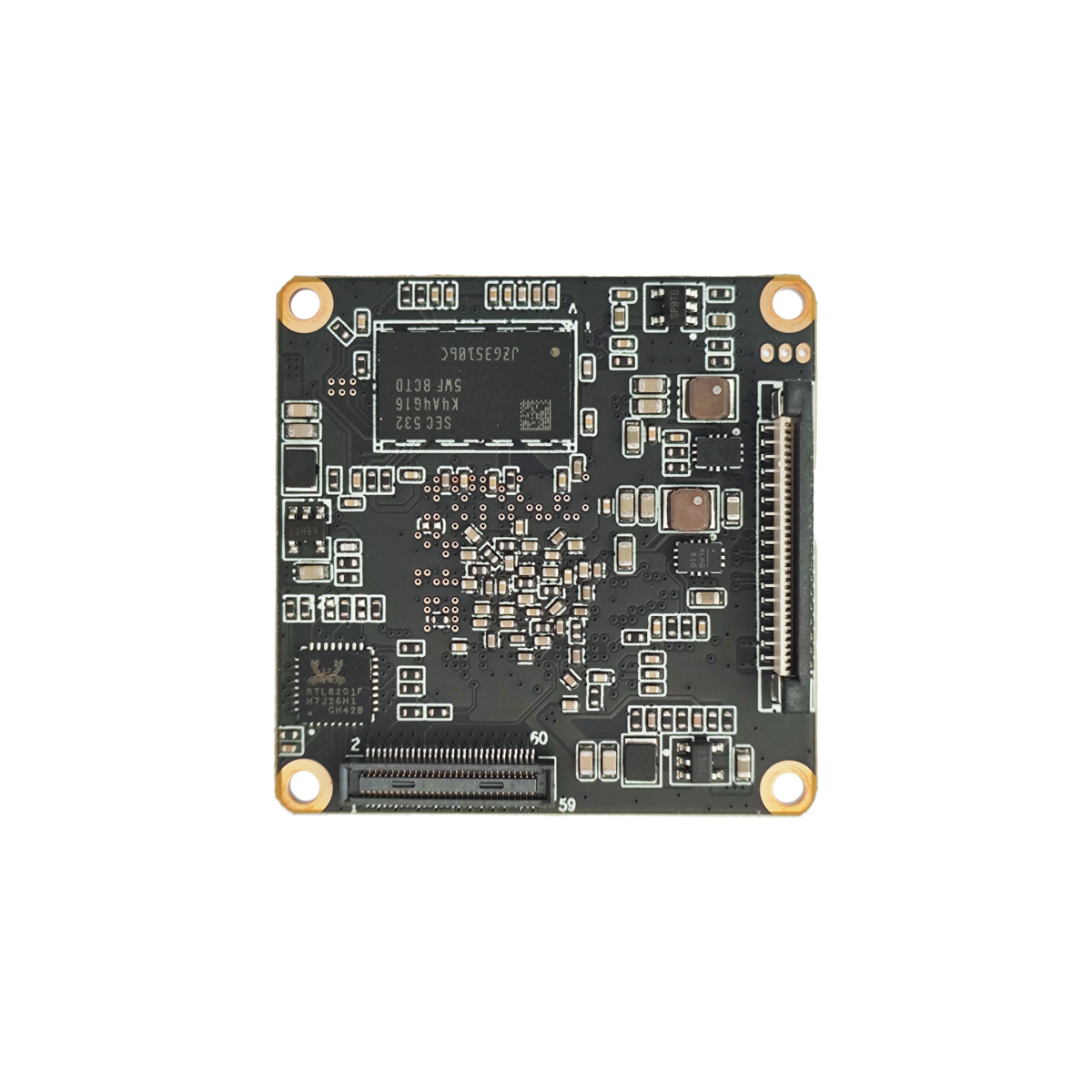

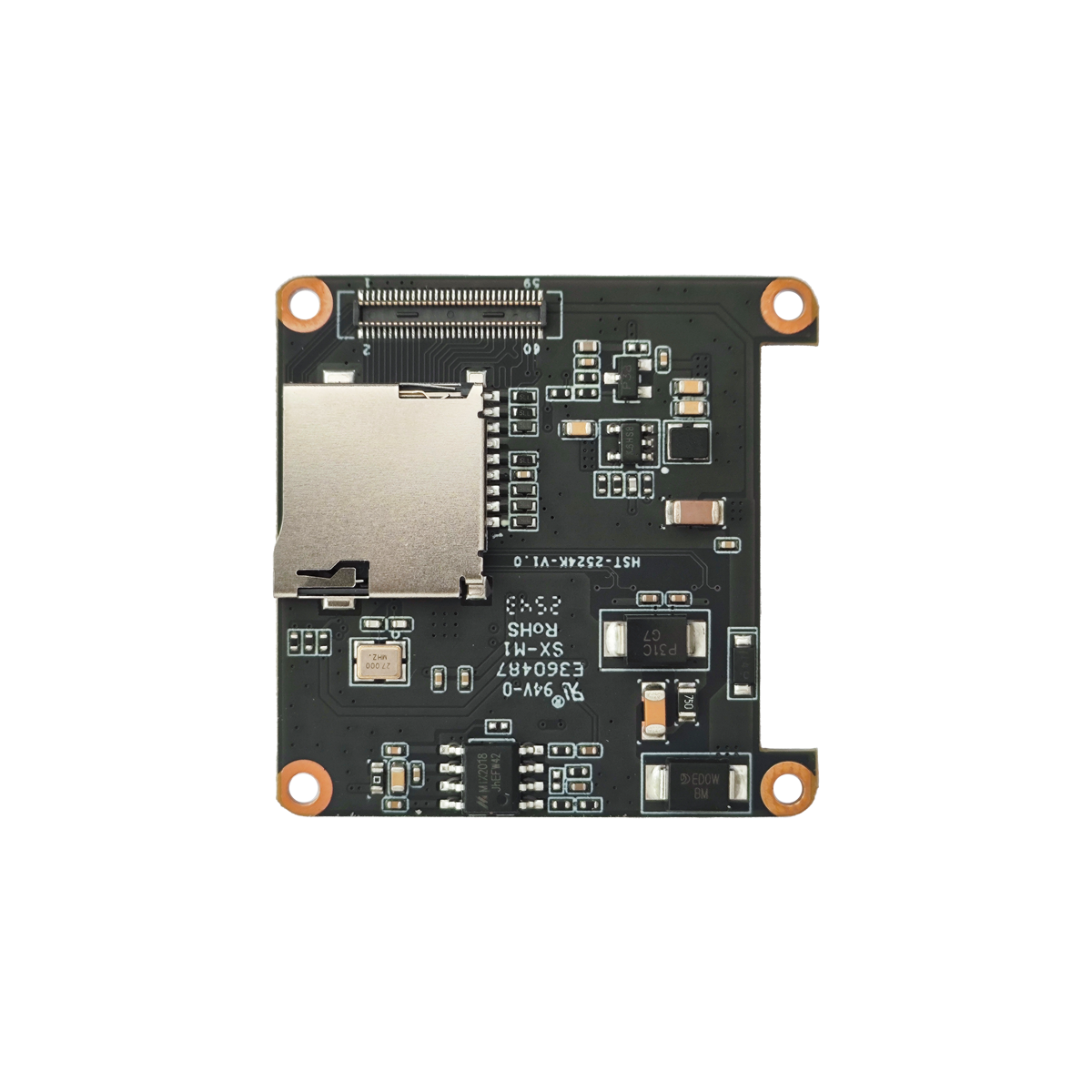

Size/Weight	38x38mm ,Three boards /≤30g
Operation Temperature	-30°C~70°C
Working Humidity	≤90%RH(non-condensing)
