MC-800S5 Key Features
1/2.8’’ 8MP CMOS IMX415 sensor.
Support
H.265+, H.265, H.264 encoding.
Support Soft light sensitivity: Dual-light mode, Full-color
mode, Infrared mode.
Support Intelligent analysis, algorithm, Perimeter
alert.
Support Two way audio, Voice broadcast, Custom
voice messages.
Support HDR, Image flip, Digital wide dynamic range,
OSD
Support ONVIF.
Support IP address Filtering, Block lists.
Support CDS signal and PWM signal control
Support POE extension
Provide SDK development packages for Windows,
Android, and Linux..
Image sensor
|
|
Model
|
MC-800S5
|
|
SOC
|
SSC378QE
|
|
Sensor
|
1/2.8"8MP
CMOS IMX415
|
|
Maximum resolution
|
3840*2160@20fps
|
|
Minimum illumination
|
|
|
Camera
|
|
|
AGC
|
|
|
S/N ratio
|
≥52
dB
|
|
Shutter
Speed
|
|
|
Wide dynamic range
|
≥75
dB
|
|
Exposure mode
|
Auto/
Manual/
|
|
White balance
|
Auto/
Manual
|
|
Day & Night
|
|
|
Image resolution
|
|
|
Main stream
|
20@FPS(3840×2160),25FPS@(3072×2048,2592×1944,2560×1440,2304×1296,1920×1080,1280 ×720)
|
|
Sub stream
|
720×480,D1,VGA,640×360
|
|
Audio resolution
|
|
|
Audio Out/In
|
Supported/Wired
required
|
|
Audio processing
|
G.711
codec standard
|
|
|
|
|
Protocol
|
|
|
Network protocol
|
HTTP/RTSP/DHCP/NTP/ONVIF
etc
|
|

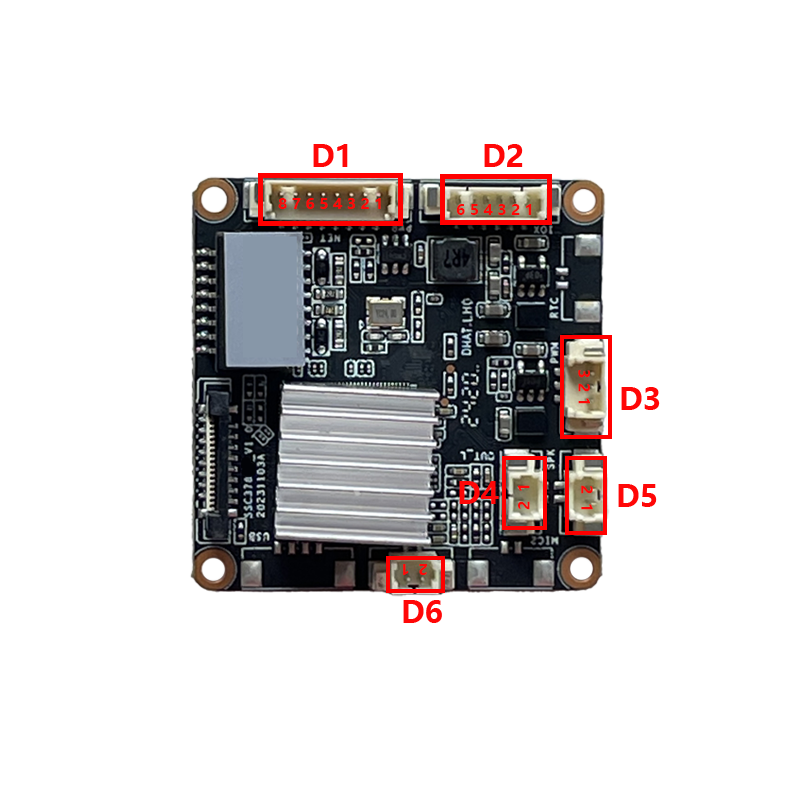

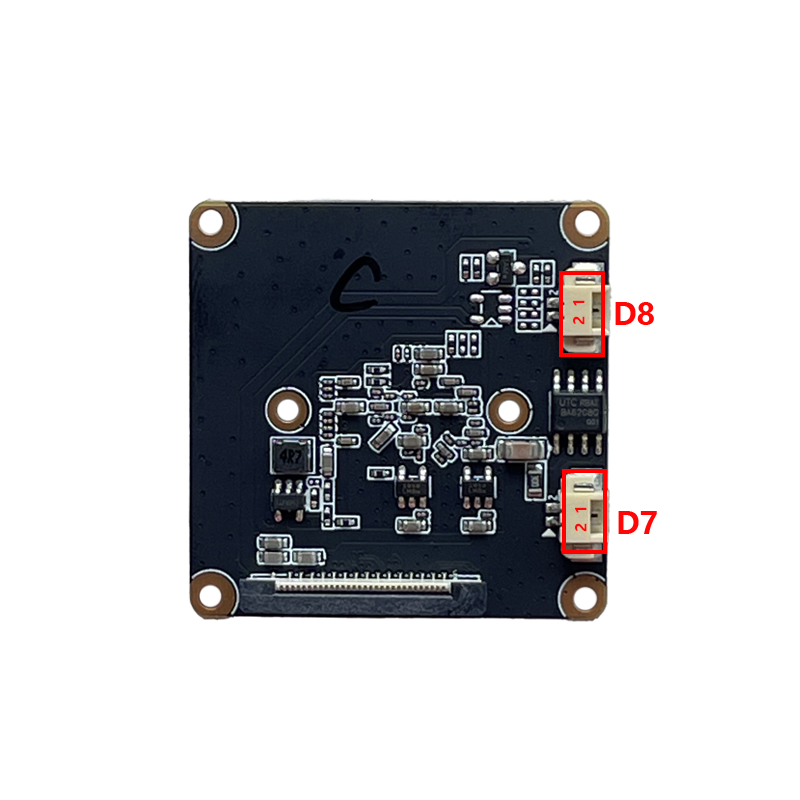

Interface
|
|
|
Network interface
|
10/100Mps
1*RJ45 interface
|
|
IRCUT interface
|
Integrated
IRCUT/ Smart IR Control
|
|
Light board interface
|
PWM
yellow light / PWM IR / CDS
|
|
Storage interface
|
TF
card slot extension supports up to 512GB
|
|
Extra interface
|
Supports
motorized zoom and autofocus interfaces, requiring a zoom lens, zoom control
board, and zoom firmware.
|
|
Mobile APP
|
Danale APP (iOS, Android)
|
|
General
|
|
|
Power supply
|
DC 12V 1.56w 130mA protected from
lightning / Support POE extension
|
|
Additional functions
|
OSD supported/Two way
audio/Support audio and video synchronously /voice alarm/ Accurate
human detection, Dual-light alarm.
|
|
Standard
|
International:
IEC61000-4-5 China: GB/T17626.5
|
|

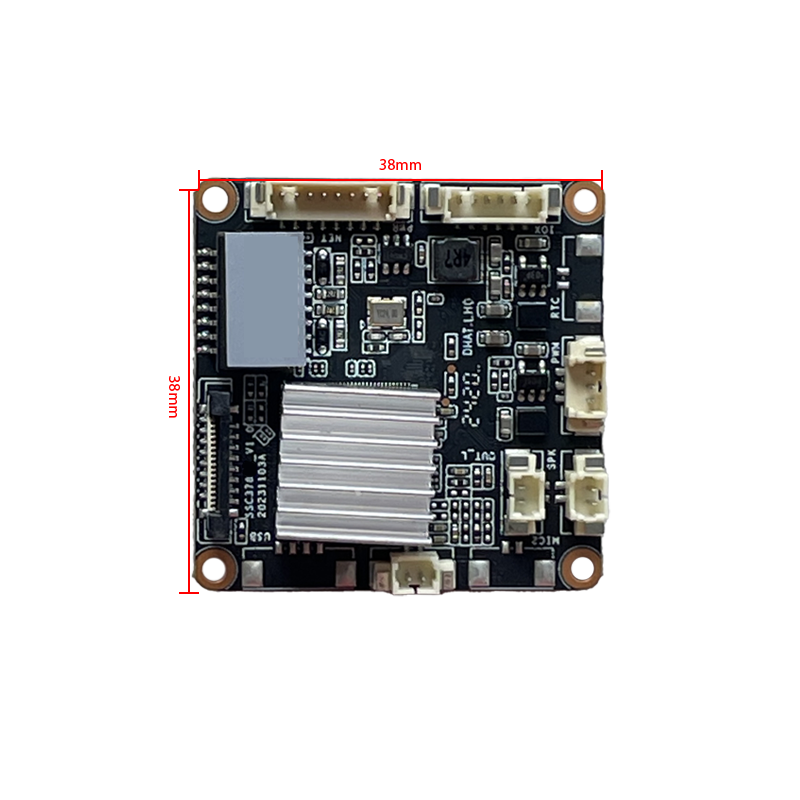

Size
|
(L)38mm * (W)38mm 2 layer
|
|
Operation temperature
|
-40°C~+85°C
|
|
Working humidity
|
≤90% RH(non-condensing)
|
|
