EC-IP3863U 2MP Mini POE IP Underwater Camera - Shenzhen CCDCAM Technology Co.,Ltd

1/2.7"2MP Sony CMOS Sensor
1920x1080@30fps
Support Onvif
2.5,2.8,3.6mm fixed lens optional
Material :Stainless steel 316L
Underwater depth 30 meters Max
IP68 POE

The EC-IP3863U is a compact and durable 2MP Mini POE IP Underwater Camera, perfect for underwater surveillance.

Featuring a high-quality 1/2.7" 2MP Sony CMOS Sensor, this camera captures clear and detailed footage in full HD 1920x1080 at 30fps. It supports Onvif for seamless integration with other security systems, making it highly versatile.

Image Sensor
Sensor	1/2.7" CMOS
Maximum Resolution	1920x1080@30fps
Minimun illumination	Color0.5Lux/F1.4
Function
IR LED	Without
Electronic Shutter	1/50(1/60)s-1/100,000s
Lens	2.5 / 2.8/ 3.6mm Lens
Lens Mount	M12
Day/Night Mode
Exposure Mode	Auto/ Manual/shutter mode
White Balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & Night	External control（IR Cut Filter）
Compressed Format
Video Compression	H .265//H .264
Audio Compression	G711
Image Resolution
Main Stream	1920x1080/1280x720@30fps
Sub Stream	640480/480360@25/30fps
General Protocol
Protocol	HTTP/Onvif/DHCP/DDNS/NTP
Interface
wired	10Base-T/100Base-TX
Network Protocol	RJ45
Other
Power Supply	POE IEEE802.3at/af

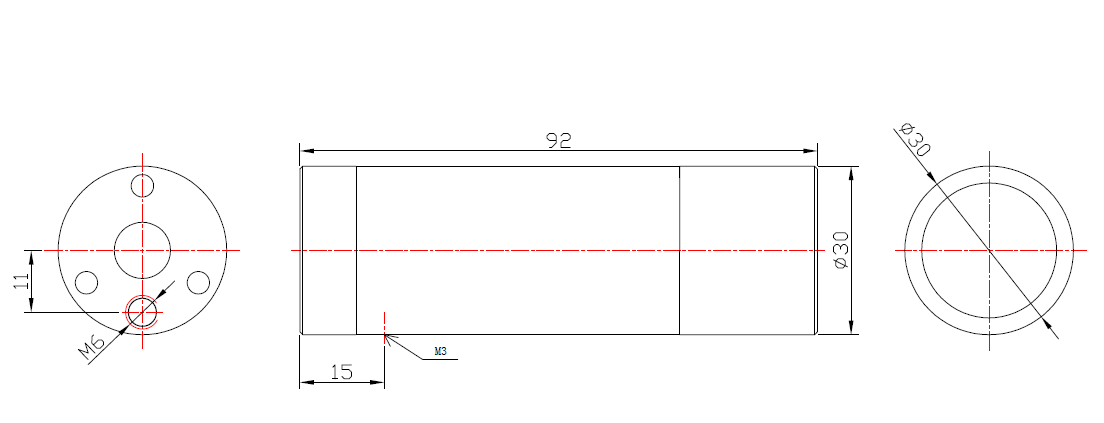

Size	Ø 30 x 92mm
operation temperature	-10°C- +60°C
Material	Stainless steel 316L
Cable	CAT6
Net Weight	N.W.0.3kg +cable 0.12kg/m

Specification documentation: EC-IP3863U 2MP Mini POE IP Underwater Camera.pdf
