DK8352-W

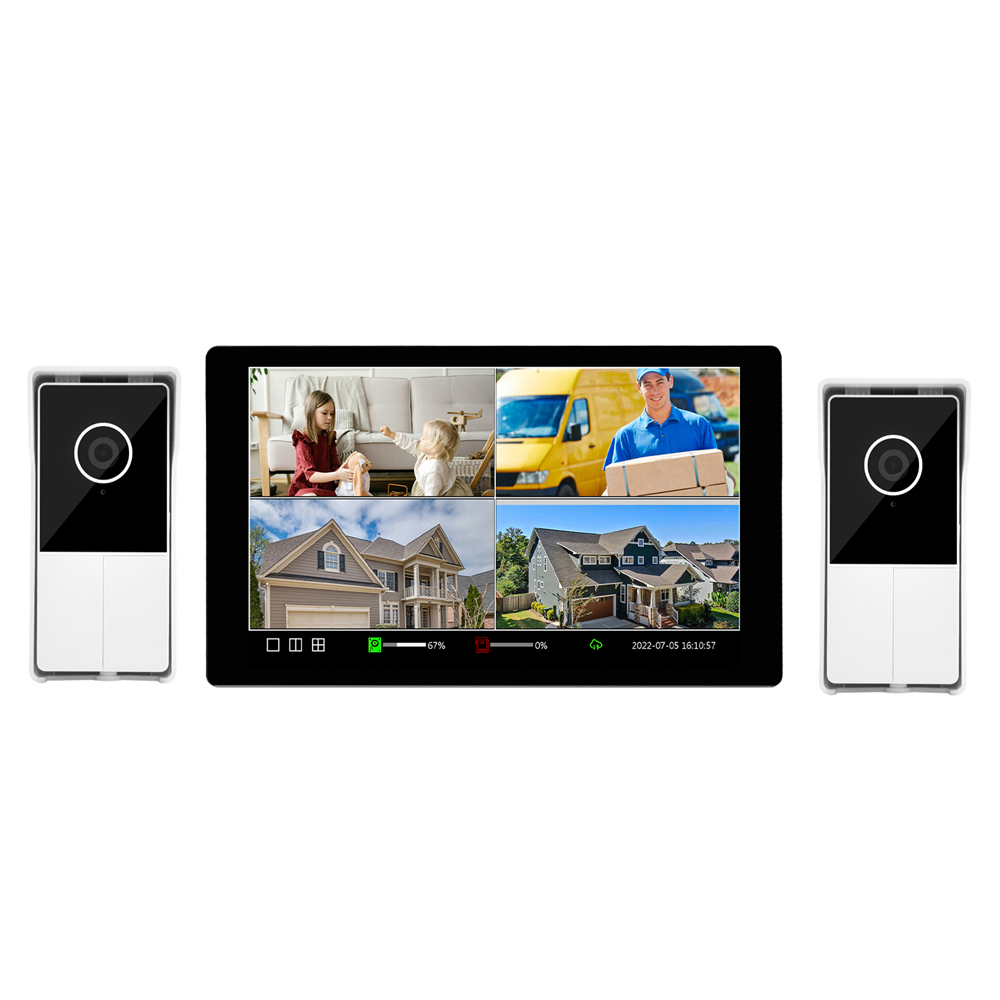

1 master station + 2 plastic WIFI IP doorbell
The two stations are connected by Wireless protocol
Two-way audio intercom between door station and master station or Mobile APP
10-inch Touch-Screen Master Station
1280*800 HD Resolution
WIFI,12VDC
TF card,max 512G
Built-in 64G SSD
2-ch alarm input,1-ch alarm output
Remote unlocking on APP
3MP Wireless Video Intercom Solution
Key Features：
● 1 master station + 2 plastic WIFI IP doorbell;● The two stations are connected by Wireless protocol;
● Two-way audio intercom between door station and master station or Mobile APP.
Master station and Mobile APP(Tuya) support:
▪ 10-inch Touch-Screen Master Station
▪ 1280*800 HD Resolution
▪ WIFI,12VDC
▪ TF card,max 512G
▪ Built-in 64G SSD
▪ 2-ch alarm input,1-ch alarm output
▪ Remote unlocking on APP
.jpg)
.jpg)
.jpg)
|
Model |

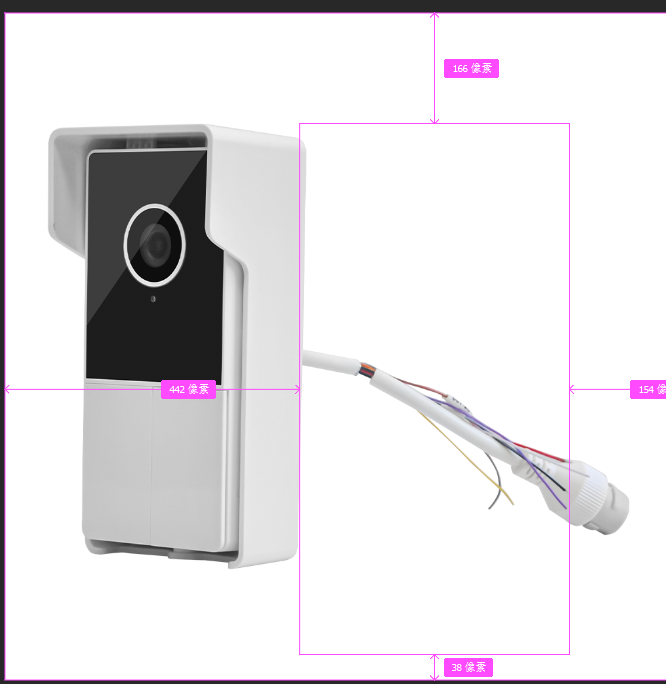

DK8352-W Plastic Doorbell |
|
System |
LINUX,Single core 32-bit DSP, hard compression, watchdog, 8MB FLASH, built-in 64MV DDR |
|
Camera |
3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night |
|
Video Compression |
H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC |
|
Frame Rate |
3MP@15fps |
|
Image Output |
Main stream:2304×1296，1280×720 |
|
Sub stream:640×360 |
|
|
Audio Interface |
1*MIC input,1*loudspeaker output; |
|
Audio Compression |
G.711,Support two-way voice intercom function and audio and video synchronization; |
|
Network |
10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP |
|
Protocols |
HTTP,TCP/IP,IPv4,DHCP,NTP |
|
Signal Interface |
1*IRCUT interface, support the control of IR-CUT and image linkage; |
|
Upgrade Maintenance |
Support OTA upgrade |
|
Business Functions |
Support OSD, real-time video transmission, mobile detection and human shape detection |
|
ONVIF |
UnSupport |
|
Remote Unlock |
Support |
|
Power Supply |
DC12V |
|
Dimensions |
67.32mm×66.92mm×134.34mm（W×D×H） |
|
Working Temperature |
-10℃～+70℃ |
|
Model |
DK8352-W Plastic Doorbell |
|
System |
LINUX,Single core 32-bit DSP, hard compression, watchdog, 8MB FLASH, built-in 64MV DDR |
|
Camera |
3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night |
|
Video Compression |
H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC |
|
Frame Rate |
3MP@15fps |
|
Image Output |
Main stream:2304×1296，1280×720 |
|
Sub stream:640×360 |
|
|
Audio Interface |
1*MIC input,1*loudspeaker output; |
|
Audio Compression |
G.711,Support two-way voice intercom function and audio and video synchronization; |
|
Network |
10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP |
|
Protocols |
HTTP,TCP/IP,IPv4,DHCP,NTP |
|
Signal Interface |
1*IRCUT interface, support the control of IR-CUT and image linkage; |
|
Upgrade Maintenance |
Support OTA upgrade |
|
Business Functions |
Support OSD, real-time video transmission, mobile detection and human shape detection |
|
ONVIF |
UnSupport |
|
Remote Unlock |
Support |
|
Power Supply |
DC12V |
|
Dimensions |
67.32mm×66.92mm×134.34mm（W×D×H） |
|
Working Temperature |
-10℃～+70℃ |
-
