HM50C01

● 1/2.8" 5MP Sony IMX335 STARVIS CMOS

● Powered by Vision Processing Chip GK7205V300

● Maximum resolution up to 2592×1944@30fps

● True Day/Night, 3D DNR, Digital WDR

● Supports network and CVBS analog video output

● Support humanoid detection, motion detection

● Support the P2P on Android, IOS(No-default)

● Support two way audio, Built-in audio amplifier function

● Support ONVIF and Hikvision protocol

● Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

● Open SDK(Linux,Windows), CGI,Support OPENIPC development

Image Sensor
Sensor	1/2.8” 5MP Sony IMX335 CMOS
Maximum Resolution	2592x1944@30fps
Minimum Illumination	0.02lux @F1.0(Color) / 0.01 lux@F1.0 (B/W)
Camera
AGC	Auto/Manual
S/N Ratio	≥50dB（AGC OFF）
Shutter Speed	1/2 - 1/20 ,000s,Slow shutter support
Wide Dynamic Range	Digital WDR≥73.7dB
Exposure Mode	Auto/ Manual/shutter mode
AWB	Yes
Day & Night	External control（IR Cut Filter）
Light Control	Support IR/White/dual light, three mode independent control
Compression
Video Compression	HEVC/H.264 Main Profile /M-JPEG
Audio Compression	G711U, G711A,PCM
Image Resolution
Main Stream	2592x1944/1920x1080@30fps
Sub Stream	640x480/640x360@30fps
General Protocol
Network Protocol	TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P
ONVIF protocol	Yes
Compatibility	Support HIK/XM protocol
P2P
Support TUYA APP	Support for Tuya APP（Android, IOS）(Not Default)
Function
Web Configuration	Yes
0SD	Yes (Web OSD)
Motion Detection	Yes
Humanoid Detection	Yes
Reset	Support cable reset button(optional)
Amplifier	Built-in amplifier

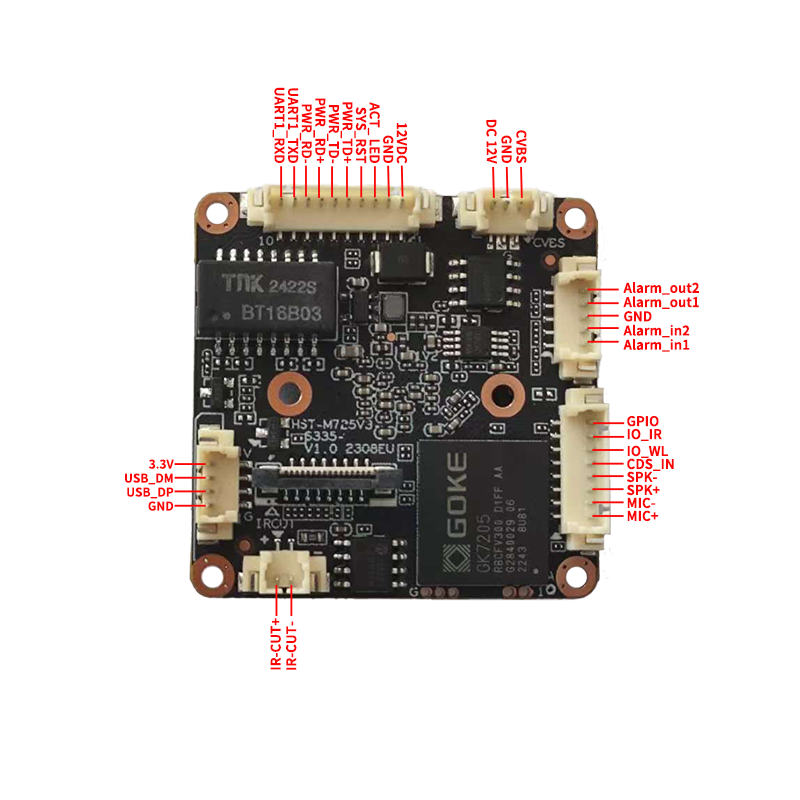

Interface
Wired	1ch 10/100 Base Ethernet,RJ45 interface
CVBS	Support
Audio	Microphone input/output
Alarm	2 ports input, 2 ports output
UART	Support
USB	Support
TF Card	Optional and max. 512G (reserved extended SD slot)
Other
Power Supply	12VDC

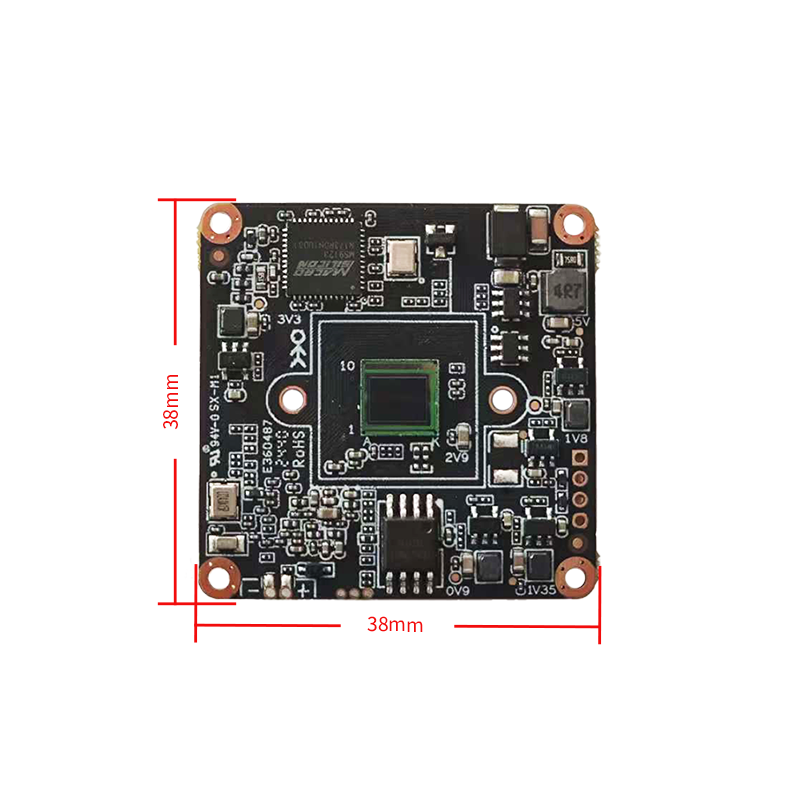

Size/Weight	38x38mm /10g
Operation Temperature	-30°C~60°C
Working Humidity	≤90%RH(non-condensing)
