Image Sensor

Sensor

1/2.8” 2MP Sony IMX307 STARVIS CMOS

Maximum Resolution

1920x1080@60fps

Minimum Illumination

0.01lux @F1.0(Color) / 0.005 lux@F1.0 (B/W)

Camera

AGC

Auto/Manual

S/N Ratio

≥45dB（AGC OFF）

Shutter Speed

1/2 - 1/20 ,000s,Slow shutter support

Wide Dynamic Range

Digital WDR

Exposure Mode

Auto/ Manual/shutter mode

AWB

Yes

Day & Night

External control（IR Cut Filter）

Light Control

Support IR/White/dual light, three mode independent control

Compression

Video Compression

H.265/H.264 Main Profile /M-JPEG

Audio Compression

G711U,G711A,PCM

Image Resolution

Main Stream

1920 × 1080/ 1280x960/ 1280x720@60fps

Sub Stream

640×480/480x360/352×288/176×144@60fps

General Protocol

Network Protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P

ONVIF protocol

Yes

Compatibility

Support HIK/XM protocol

P2P

Support TUYA APP

Support the Tuya P2P on Android, IOS(Not Default)

Function

Web Configuration

Yes

OSD

Yes

Motion Detection

Yes

Humanoid Detection

Yes

Reset

Support cable reset button(opticnal)

Amplifier

Built-in amplifier

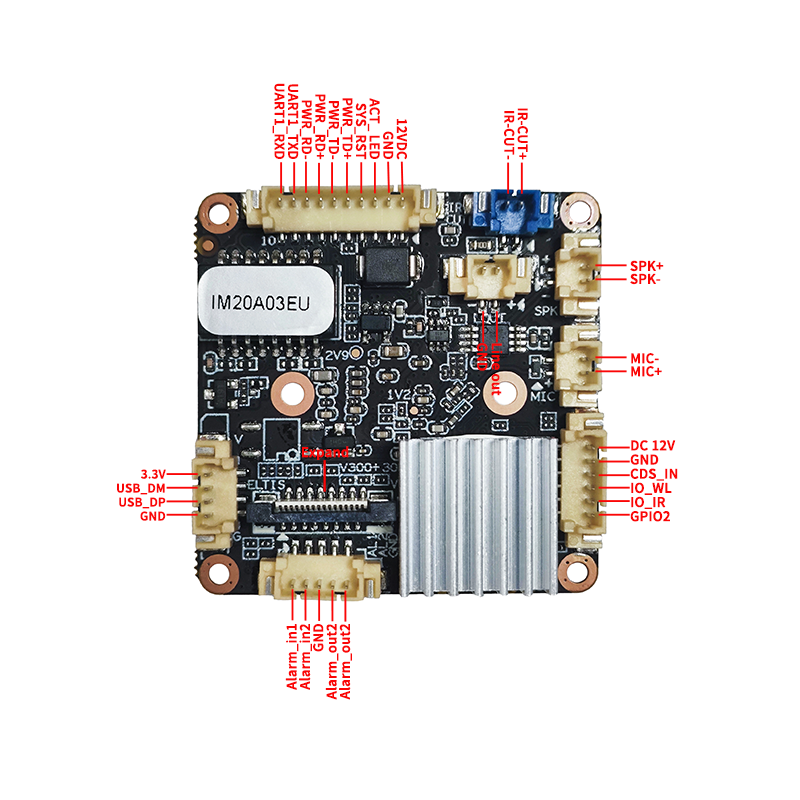

Interface

Wired

1ch 10/100 BaseT Ethernet,RJ45 interface

Audio

Audio input/output,1 MIC,1 Speaker,1 column speaker line out interface

Alarm

2 ports input, 2 ports output

UART

Support

USB

Support

TF Card

Optional and max. 512G (reserved extended SD slot)

Other

Power Supply

DC 12V

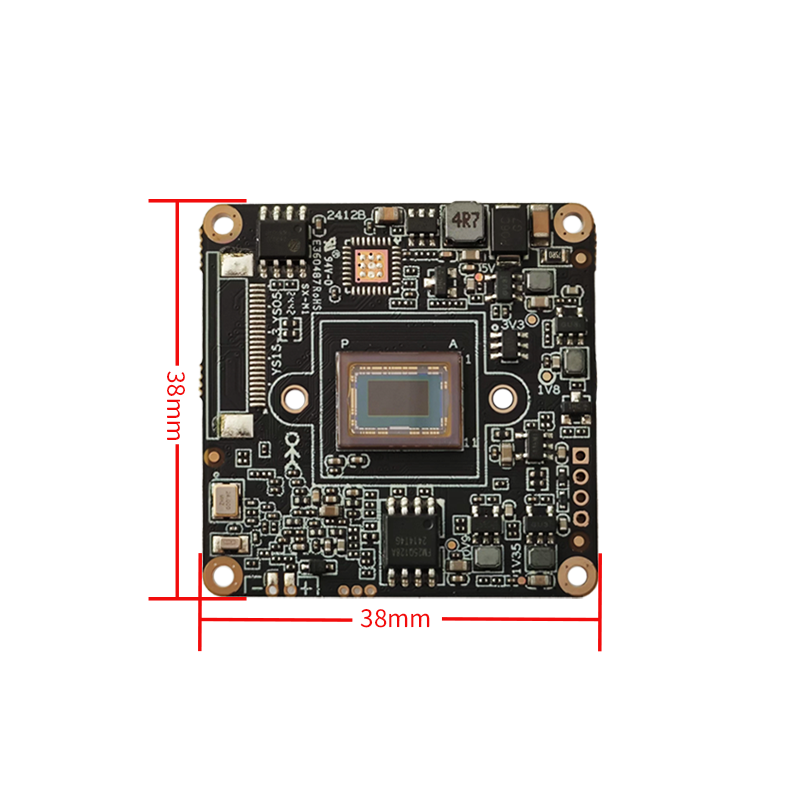

Size/Weight

38x38mm /10g

Operation Temperature

-30°C~60°C

Working Humidity

≤90%RH(non-condensing)
