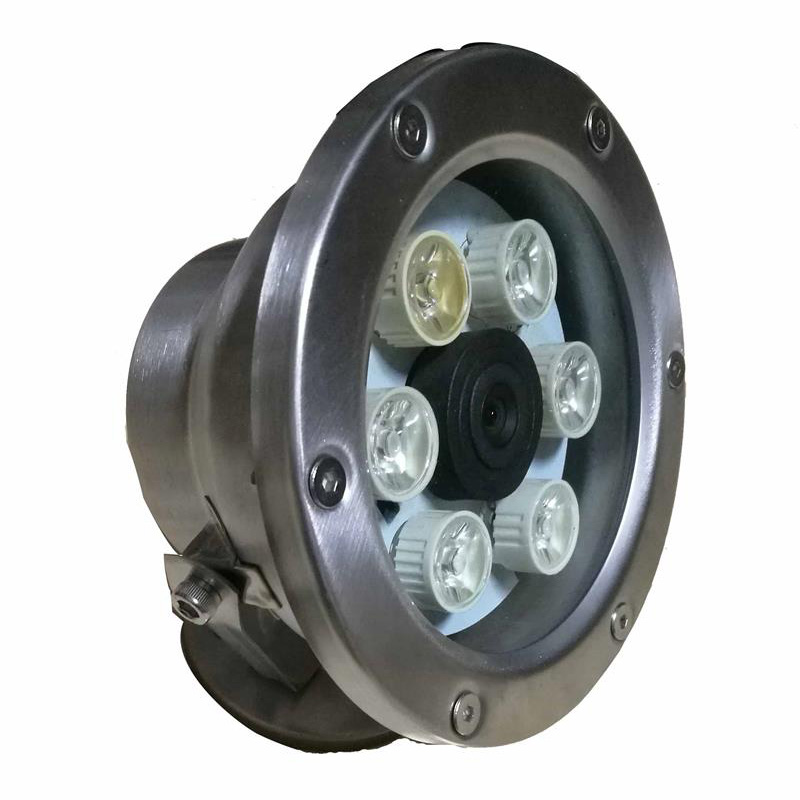

EC-IP3810U

Camera

Sensor

1/3",2MP  CMOS Sensor

Maximum resolution

1920x1080

Minimum illumination

Color 0.5Lux/F1.4

Light  Distance

10m

Electronic Shutter

1/50(1/60)s-1/100,000s

Lens

2.1 / 2.8/ 3.6mm

Lens Mount

M12

Image resolution

Main stream

1920x1080@30fps

Sub stream

640×360@30fps

General protocol

Protocol

HTTP/Onvif/DHCP/DDNS/NTP

Interface

wired

10Base-T/100Base-TX

Network Protocol

RJ45

Other

Power Supply

POE IEEE802.3at/af

Size

Ø 145 x 110mm

operation temperature

-10°C- +60°C

Material

Stainless steel 304L

Cable

CAT6

Net Weight

N.W.0.7kg +cable 0.12kg/m
