IM20A02B

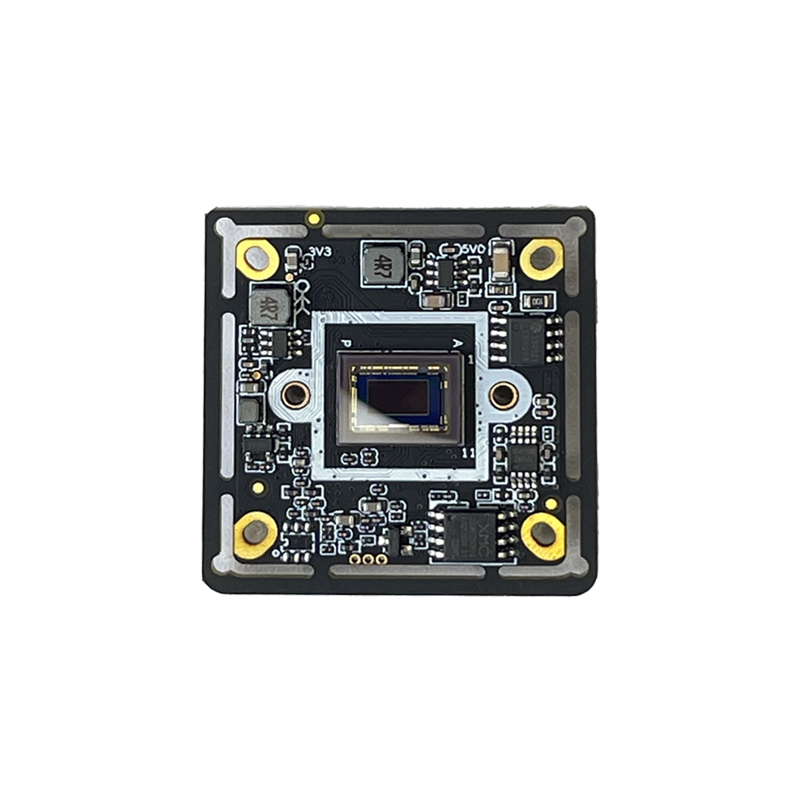

Image sensor

Sensor

1/2.8”2MP CMOS Sony IMX307

Maximum resolution

2592*1944@30fps

Minimum illumination

Color：0.1Lux B/W：0.01Lux

Camera

AGC

Auto/Manual

S/N ratio

≥45dB (AGC OFF)

Shutter speed

1/2 - 1/20 ,000s，Slow shutter support

Wide dynamic range

70dB

Exposure mode

Auto/ Manual/shutter mode

White balance

Auto/ Manual /ATW/ Indoor/Outdoor/ lamp

Day & night

External control（IR Cut Filter）

Image resolution

Main stream

1920×1080/1280×960/1280×720@30fps

Sub stream

640×480/480×360/352×288/176×144@30fps

General protocol

Network Protocol

TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

ONVIF protocol

Standard  ONVIF

Network interface

Wired

1ch 10/100BaseT Ethernet，RJ45 interface

Other

Power supply

12VDC

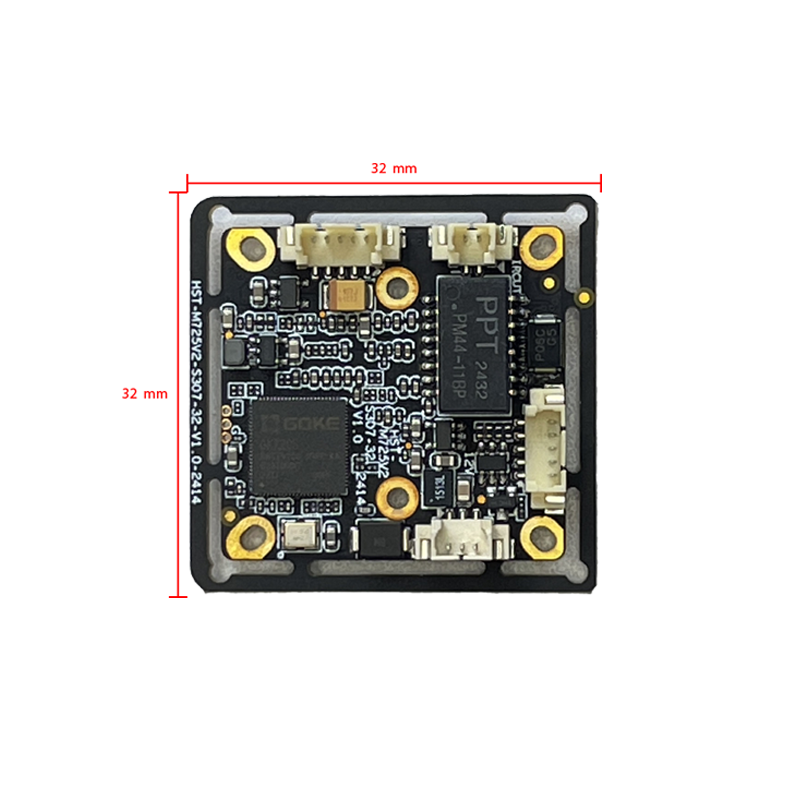

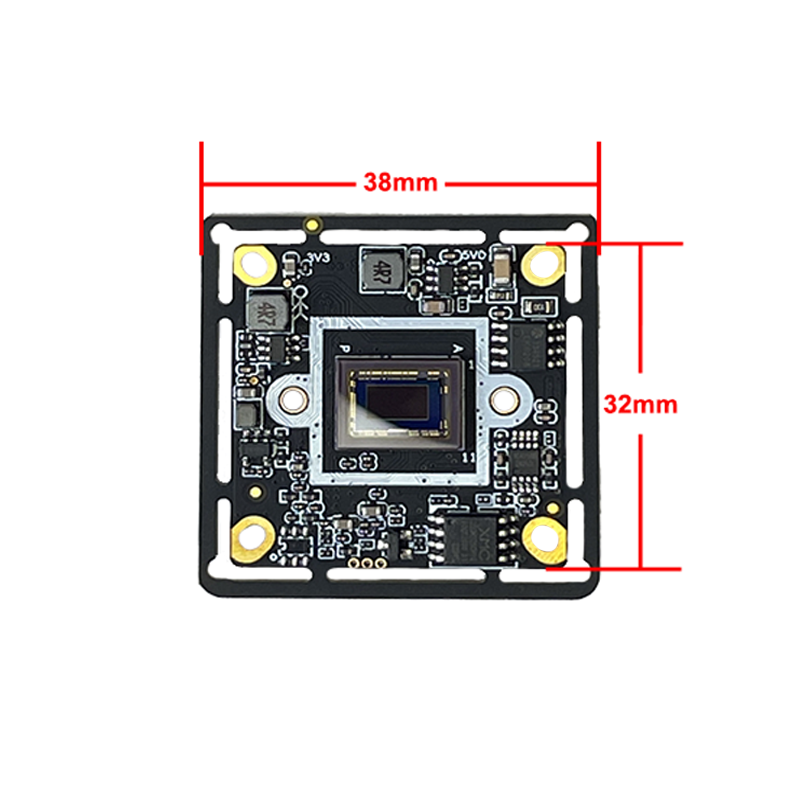

Size

38x38mm/32x32mm

Operation temperature

-20 ° C ~60 ° C

Working humidity

≤90%RH(non-condensing)
