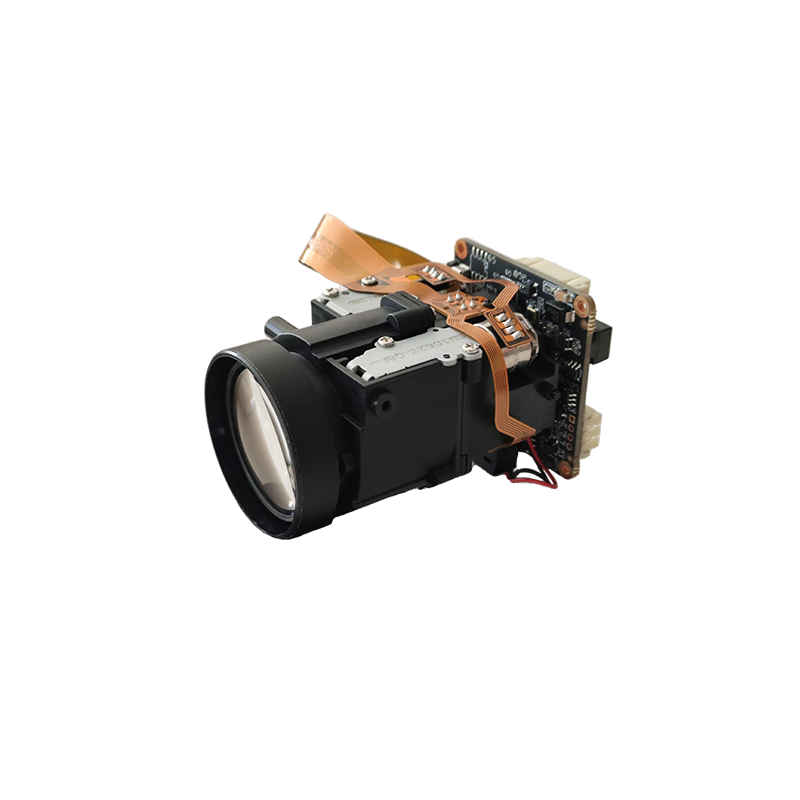

IM20A01-10X Automatic Zoom Network Module - Shenzhen CCDCAM Technology Co.,Ltd

● 1/2.8" 2MP Sony IMX307 STARVIS CMOS

● Powered by Vision Processing Chip GK7205V200

● Maximum resolution up to 1920×1080@30fps

● 10X optical synchronous focusing, with clear images throughout the zoom process

● Support humanoid detection, motion detection

● Support the Tuya P2P on Android, IOS(Not default)

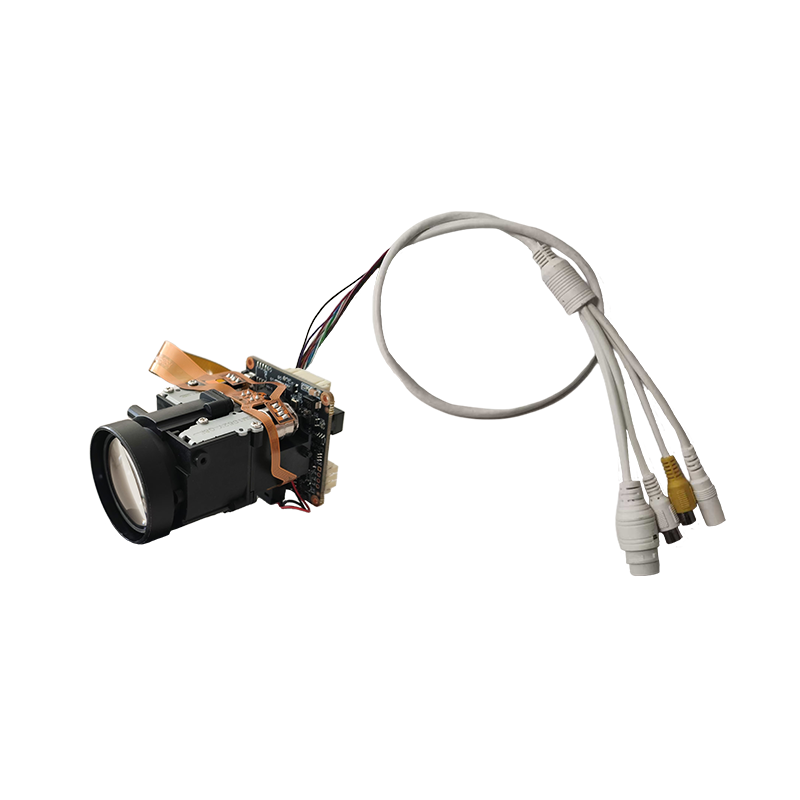

● Support two way audio, Built-in audio amplifier function

● Support ONVIF and HIK/XM protocol

● Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

● Open SDK(Linux,Windows), CGI, Support OPENIPC development

IM20A01-10X
Image sensor
Sensor	1/2.8” 2.0MP CMOS Sony IMX307
Maximum resolution	1920X1080@30fps
Minimum illumination	0.05Lux@F1.2(Color mode);0.01Lux@F1.2(Black and white)
Shot
Focal length	5-50mm，F2.36~2.4
Viewing angle	72°(nearfocus)~7°(farfocus)
Audio frequency
Input	Passive MIC
output	Built in amplifier for direct speaker connection
Function
Lamp control mode	Infrared/White/Dual lamp mode
Support	AI humanoid detection/Motion detection/human detection
Alarm push	Mobile app/SMTP/FTP alarm push
P2P	Android and iOS
Reset	Support hardware reset and unbinding P2P function
Local storage
Storage	TF card storage（up to 128GB）
Local storage	High definition/standard definition options
Recording method	Manual recording, alarm recording
View recording	Support remote video play back
General protocol
Network protocol	TCP/IP, HTTP, NTP, DHCP, UDP, SMTP, RTP, RTSP,ARP
ONVIF protocol	Standard ONVIF
Compatibility	Support access to platforms such as Hikvision,XM CMS,
Network interface
Wired	10/100M RJ45 network interface
Other
Power supply	12VDC@0.20A

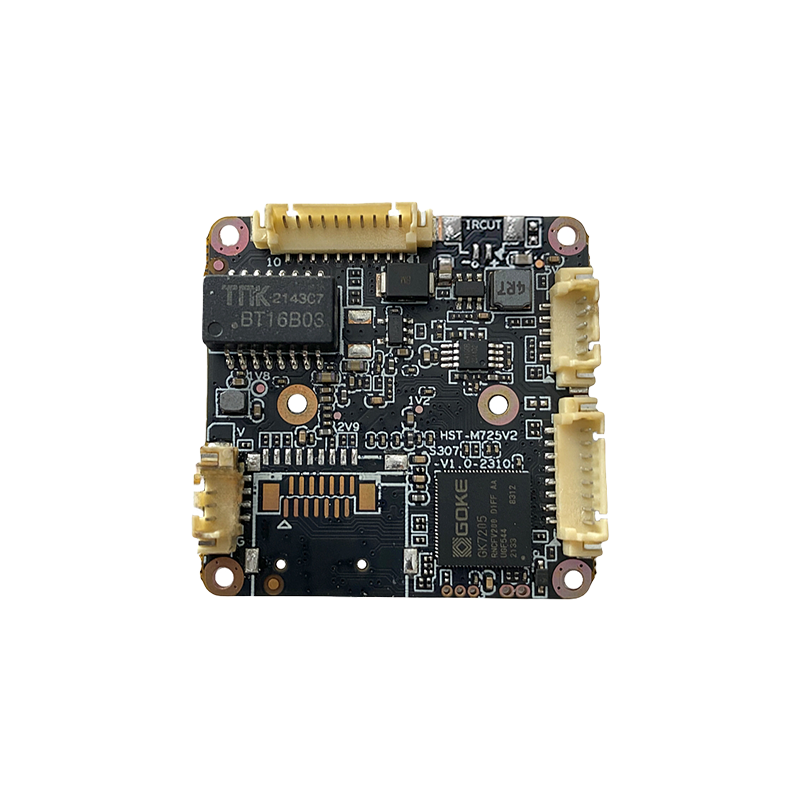

Specifications	Encoding motherboard: 38x44mm, overall height: 60mm
Operation temperature	-30°C~60°C
Working humidity	0% -90% RH (non condensing)
