Image sensor

Model

MC-J86

SOC

SSC3780DE

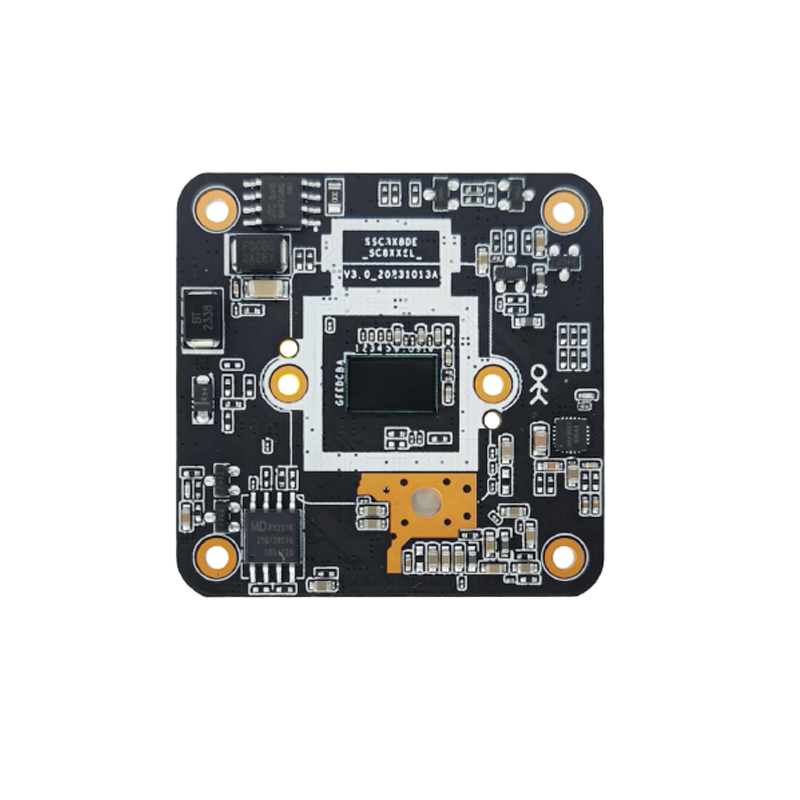

Sensor

1/1.8" 8MP CMOS

Maximum resolution

3840*2160@20fps

Minimum illumination

0.01Lux

Camera

AGC

S/N ratio

39 dB

Shutter Speed

Wide dynamic range

HDR Model ≥100 dB  Liner Model 83dB

Exposure mode

Auto/ Manual/

White balance

Auto/ Manual

Day & Night

Image resolution

Main stream

20@FPS(3840×2160),25FPS@(3072×2048）30FPS@（2592×1944,2560×1440,2304×1296，1920×1080，

1280×720)

Sub stream

640*360/VGA/D1

Audio resolution

Audio Out/In

Supported/Wired required /1 Input  1 Output

Audio processing

G.711 codec  standard

Protocol

Network protocol

HTTP/RTSP/DHCP/NTP/ONVIF etc

Interface

Network interface

10/100Mps Base-T Ethernet, 1*RJ45 interface

IRCUT interface

Integrated IRCUT/ Smart IR Control

Light board interface

PWM yellow light / Smart LED Light Control

Storage interface

TF  card  up to 512GB

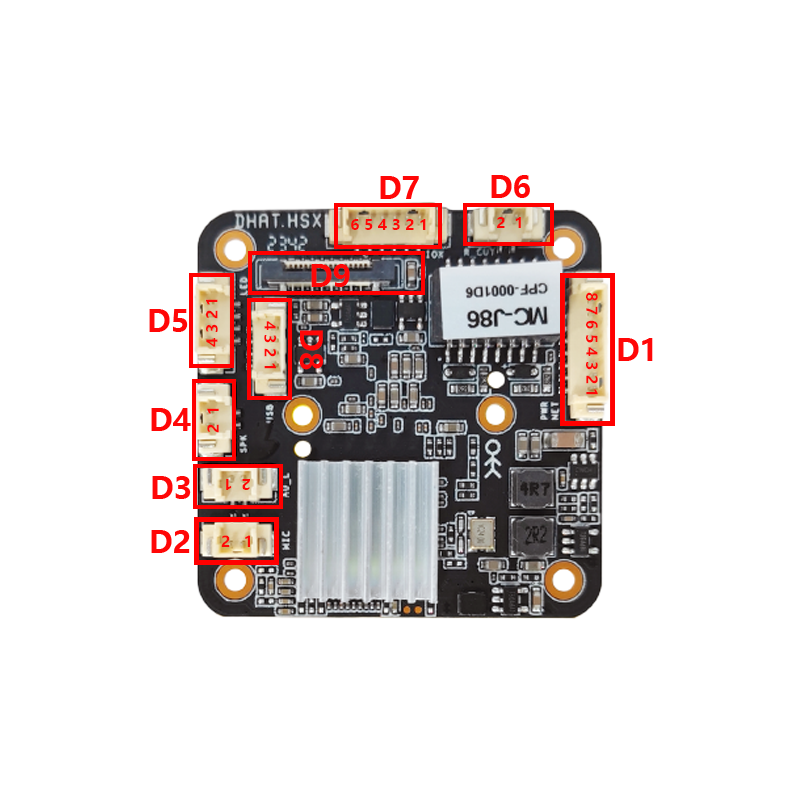

Extra interface

D9 16PIN  TF-CARD / D8 4PIN WiFi or 4G

General

Power supply

DC 12V    1.2w   100mA     protected from lightning

Additional functions

OSD supported/Two way audio/Support  audio and video  synchronously /Voice alarm/ Accurate human detection, Vehicle detection

Standard

International: IEC61000-4-5  China: GB/T17626.5

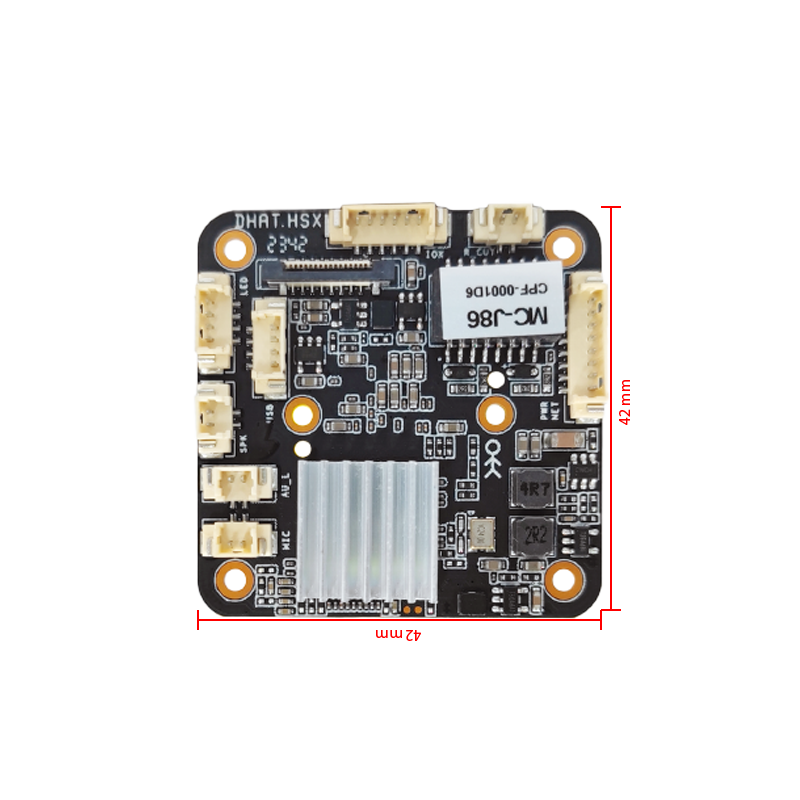

Size

(L)42mm * (W)42mm

Operation temperature

-40°C~+65°C

Working humidity

≤90% RH（non-condensing）
