IMA40K45 4MP SSC30KQ+IMX347

IMA40K45
4MP AI Black light HD Network Camera Module

Key Features：

● 1/1.8” 5MP CMOS Sony IMX347 Sensor

● Maximum resolution up to 2592×1944@25fps

● True Day/Night, 3D DNR, Digital WDR

● Support Motion Detection

● Support AI human detection ,vehicle type detection , non- motor vehicle detection

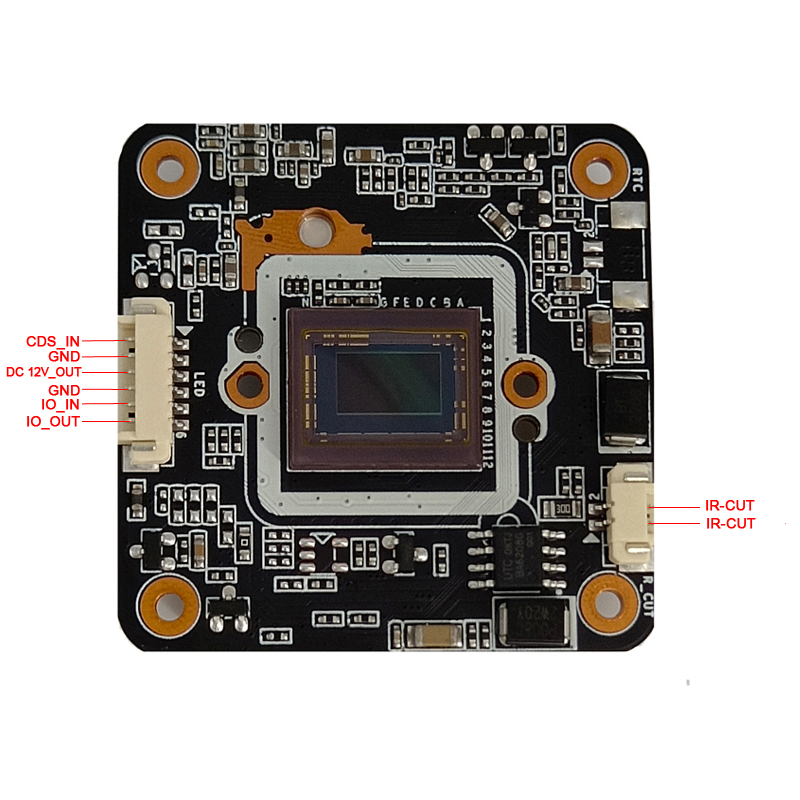

● Support CDS control and PWM control

● Support the P2P on Android, IOS

● Support ONVIF2.6

● H.265/H.264/MJ-PEG

● Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

IMA40K45
Image sensor
Sensor	1/1.8” 4MP CMOS Sony IMX347
Maximum resolution	2592×1944@25fps
Minimum illumination	Color：0.01Lux B/W：0.001Lux
Camera
AGC	Auto/Manual
S/N ratio	≥50dB（AGC OFF）
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	Digital WDR
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & Night	External control（IR Cut Filter）
Image resolution
Main stream	2592 × 1944@25fps ,2688 ×1520@30fps
Sub stream	720×480/D1/VGA/640×360@30fps
Network interface

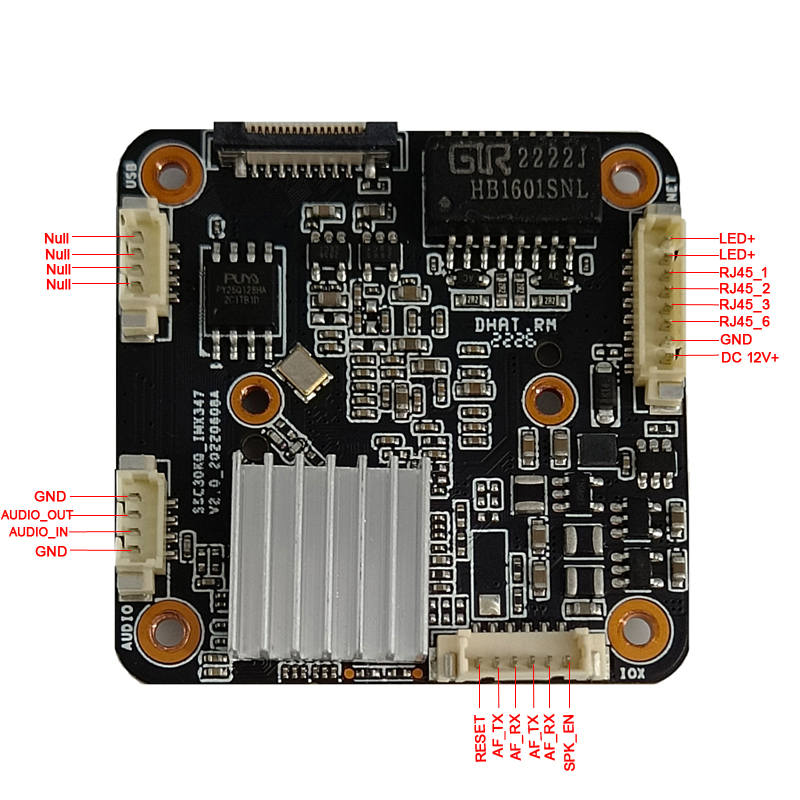

Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	DC 12V

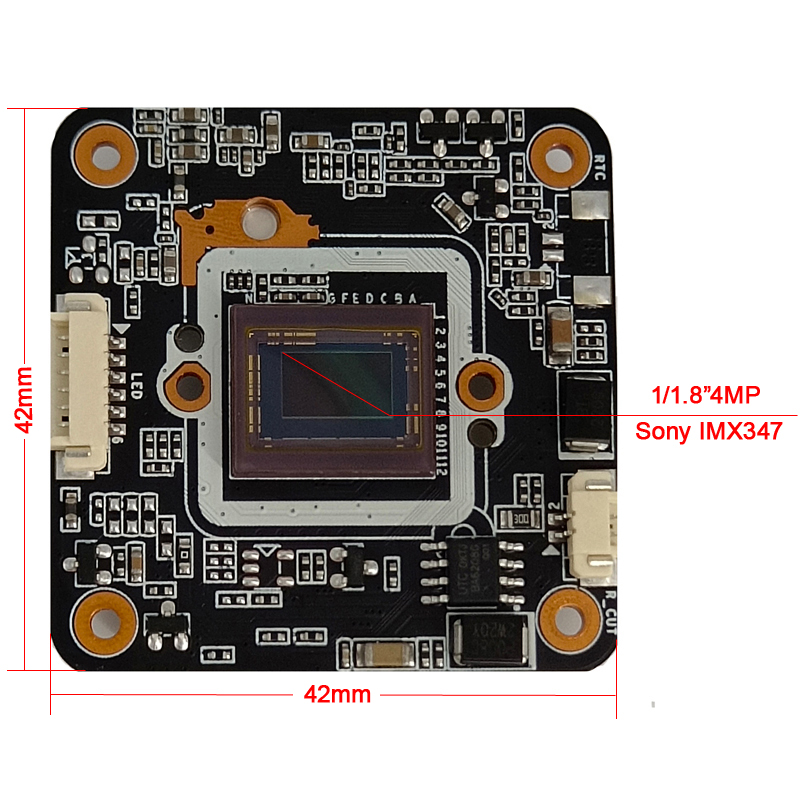

Size	42x42mm
Operation temperature	-30 ° C ~85 ° C
Working humidity	≤90%RH(non-condensing)
