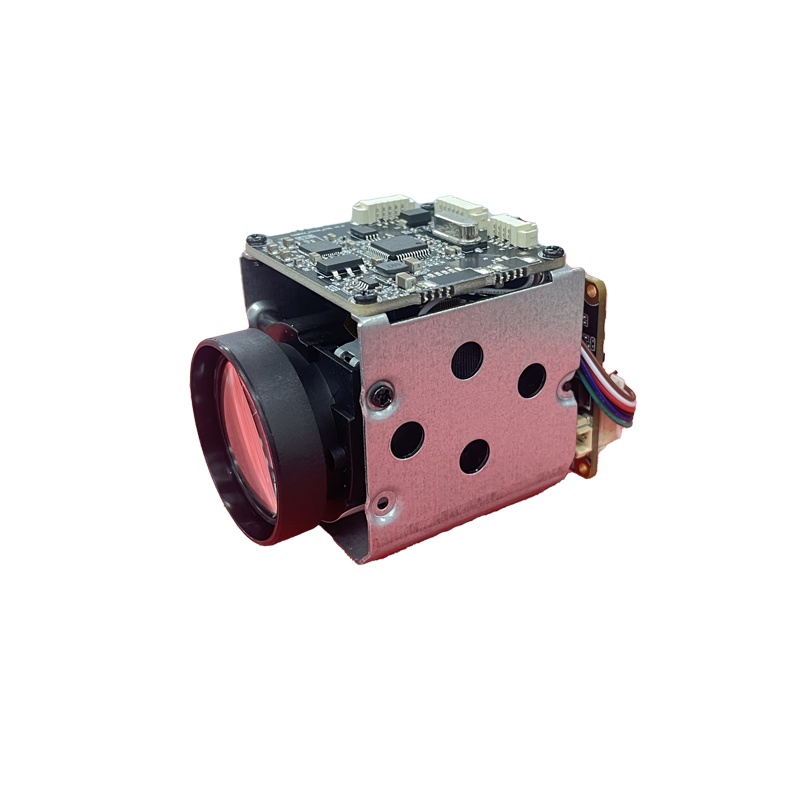

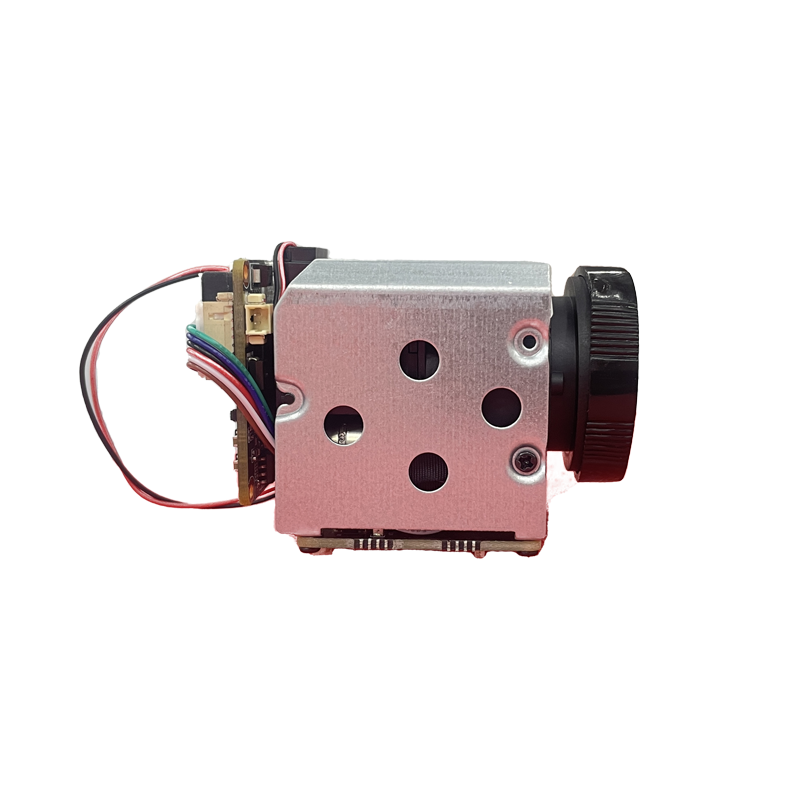

IPA500Z10 Zoom Module - Shenzhen CCDCAM Technology Co.,Ltd

10X ZOOM LENS,4.3-129mm,F1.6-F3.8

Using the SSC377D processing chip+SONY IMX335 CMOS

The highest pixel is up to 5MP,2592x1944@30fps

H.265 compression algorithm,effectively reducing network bandwidth,supporting dual stream,supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording,SD card capture,voice alarm,message push,email alarm and other functions.

support fog function,support WDR,HDR. Support strong light suppression function.

Support humanoid recognition and humanoid alarm

Support multiple network protocols:TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP, UPNP,RTSP,RTMP,etc.

Support ONVIF protocol,Hikvision protocol

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm I/O

Support timing capture pictures to FTP server

Support static IP,also support dynamic IP (DHCP)

Support P2P plug and play

Support IE,Google,Firefox browser

Provide motion detection(area,sensitivity can be set) alarm function

Support Micro SD card function,support up to 128GB Micro SD card

Support PC client to download SD card video

Support mobile phone download and playback SD card recording

Image Sensor
Sensor	1/2.8" Sony IMX335 CMOS
Maximum Resolution	2592*1944 30fps,
Minimun illumination	Color:0.05Lux B/W:0.01Lux
Function
WDR	73.7dB
S/N Ratio	≥50dB（AGC OFF）
Exposure Mode	Program mode,shutter mode
Shutter Speed	1/2 - 1/20,000s,Slow shutter support
D/ N Mode	Auto ICR filter fixed color,external
SHOR
Focus Distance	4.3-129mm(F1.6-F3.8)
Compressed Format
Video Compression	H.265 / H.264
Audio Compression	G.726/G.711
Image Resolution
Main Stream	25921944@30fps,23041296@30fps,1080P,720P
Sub Stream	VGA,640360,480360,CIF
Storage
SD Storage	TF card storage(optional)
General Protocol
network protocol	TCP/IP,HTTP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,NTP,RTSP,RTMP.
ONVIF protocol	Standard ONVIF
Network Interface

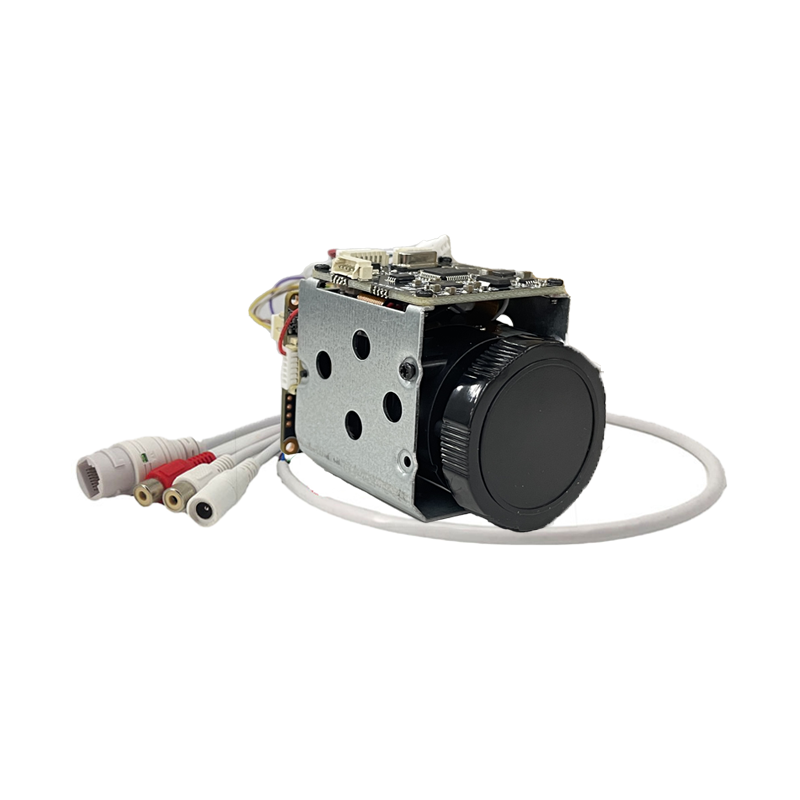

wired	1ch 10/100Mbps,RJ45 interface
Other
power supply	DC12V

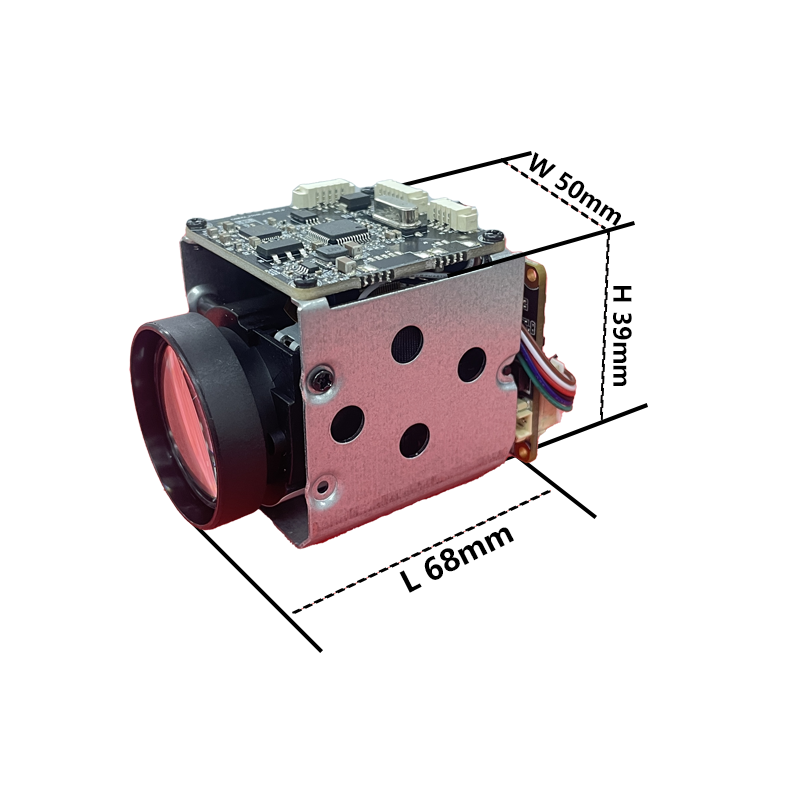

Size	68x50x39mm
Work Temperature	-40 ° C ~65 ° C
Working humidity	10%-90% RH（non-condensing）
