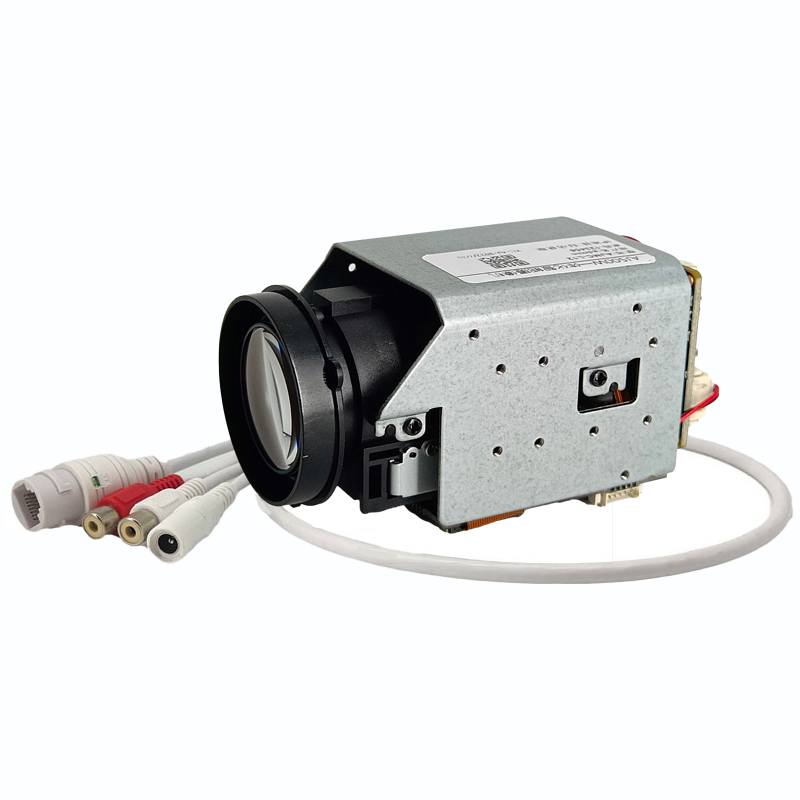

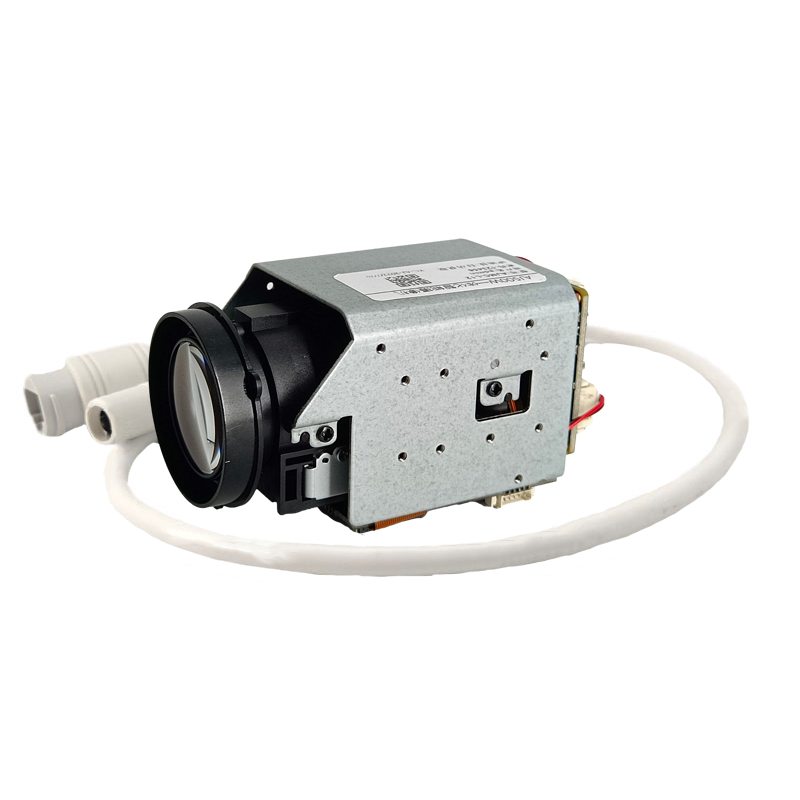

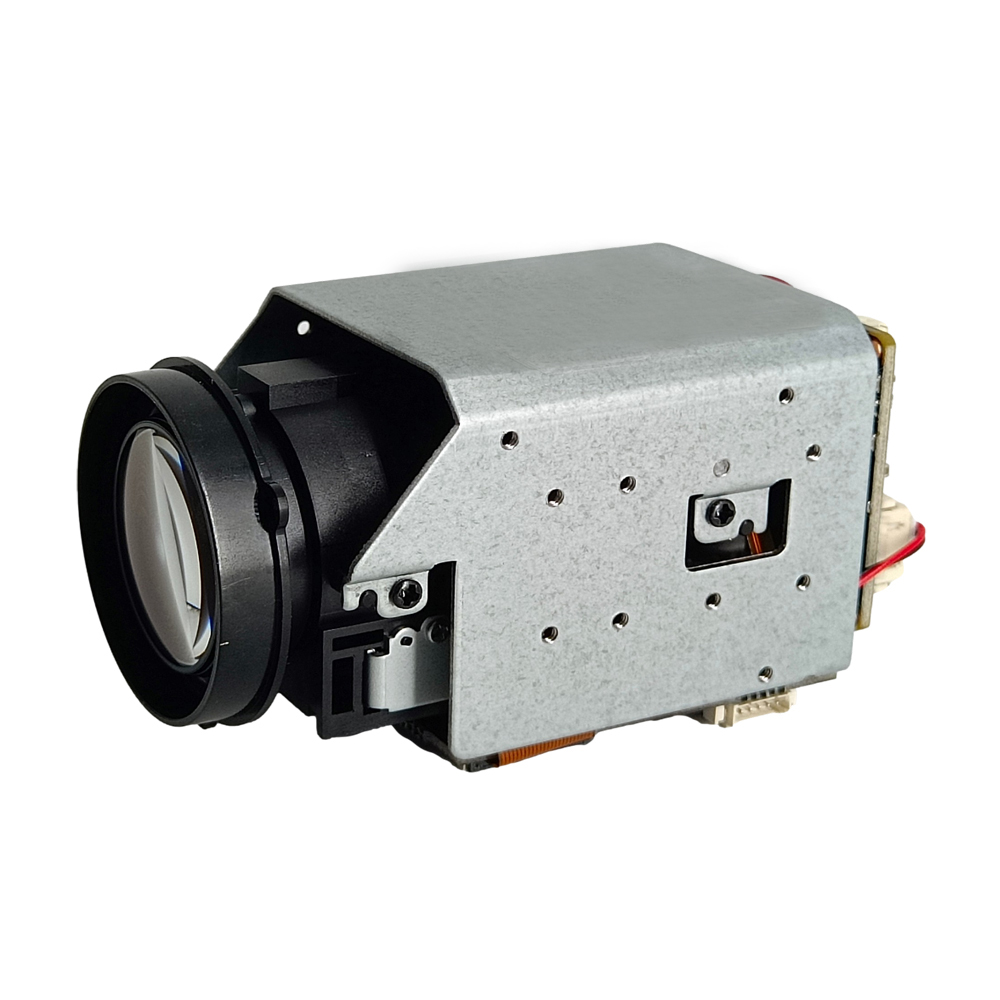

IPA500Z20 Zoom Module - Shenzhen CCDCAM Technology Co.,Ltd

20X ZOOM LENS,4.7-94mm,F1.6-F2.5

Using the SSC377D processing chip+SONY IMX335 CMOS

The highest pixel is up to 5MP,2592x1944@30fps

H.265 compression algorithm,effectively reducing network bandwidth,supporting dual stream,supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording,SD card capture,voice alarm,message push,email alarm and other functions.

support fog function,support WDR,HDR. Support strong light suppression function.

Support humanoid recognition and humanoid alarm

Support multiple network protocols:TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP, UPNP,RTSP,RTMP,etc.

Support ONVIF protocol,Hikvision protocol

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm I/O

Support timing capture pictures to FTP server

Support static IP,also support dynamic IP (DHCP)

Support P2P plug and play

Support IE,Google,Firefox browser

Provide motion detection (area, sensitivity can be set) alarm function

Image Sensor
Sensor	1/2.8" 5MP Sony IMX335 CMOS
Maximum Resolution	2592*1944@30fps
Minimun illumination	Color:0.05Lux B/W:0.01Lux
Function
WDR	73.7dB
S/N Ratio	≥50dB(AGC OFF)
Exposure Mode	Program mode, shutter mode
Shutter Speed	1/2 - 1/20,000s,Slow shutter support
D/ N Mode	Auto ICR filter fixed color,external
SHOT
Focus Distance	4.7-94mm(F1.6-F2.5)
Compressed Format
Video Compression	H .265/H .264
Audio Compression	G.726/G.711/ACC
Image Resolution
Main Stream	25921944/25601440/23041296@30fps,19201080/1280*720@30fps
Sub Stream	D1,VGA,640360,480360,CIF
Storage
SD Storage	TF card storage(optional)
General Protocol
network protocol	TCP/IP,HTTP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,NTP,RTSP,RTMP.
ONVIF protocol	Standard ONVIF
Network Interface
wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
power supply	DC12V
Size	90x49x47mm
Work Temperature	-40 ° C ~65 ° C
Working humidity	10%-90% RH（non-condensing）
