MC-J10

The MC-J10 is equipped with a 1/2.8" ultra-low illumination progressive scan CMOS sensor, delivering 1080P HD resolution. It features an embedded web server that supports Internet Explorer for monitoring, configuration, and upgrades. The device is compatible with subdomains, making it easy to implement DHCP (ADSL dial-up).

Additionally, the MC-J10 supports P2P on Android and iOS, adheres to ONVIF 2.6 standards, and offers H.265/H.264 main profile encoding with two simultaneous video streams. It includes support for alarm pre-recording and comes with a standard SDK for Linux and Windows, ensuring easy integration with other digital systems.

Key Features：

1/2.8” 2.0MP Ultra Low-illumination Progressive Scan CMOS
1080P HD resolution
Embedded Web Server, support Internet Explore monitoring, configuration, upgrade
Support sub domain, easily to implement DHCP (ADSL dial-up)
Support the P2P on Android, IOS
Support ONVIF2.6
H.265/H.264 main profile encoding, two simultaneous video streams
Support Alarm pre-record
Standard SDK(Linux,Windows) ，easily to be integrated with other digital systems

Image sensor

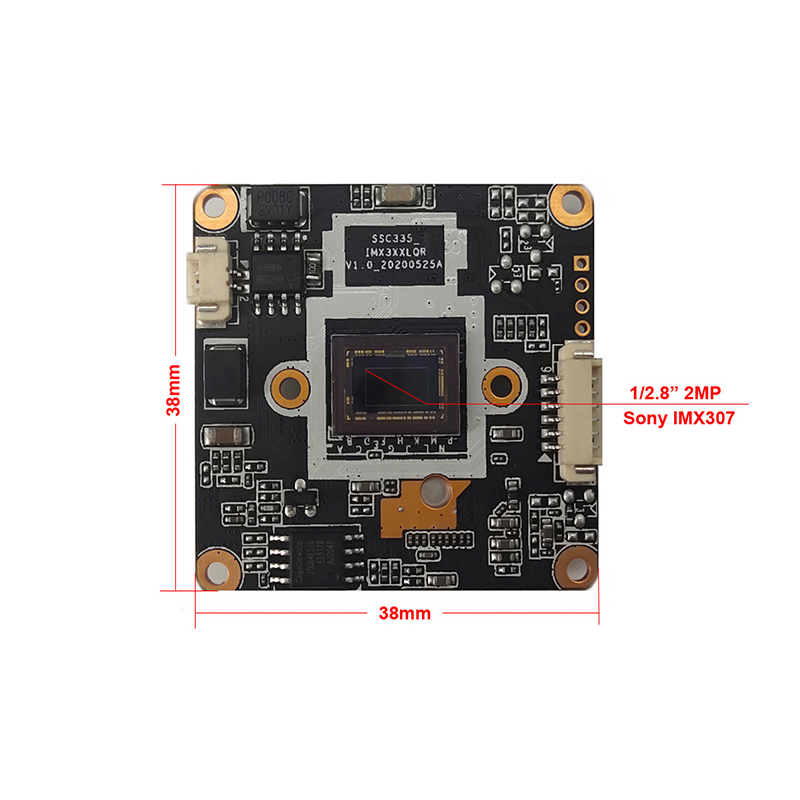

Sensor	1/2.8” 2.0MP CMOS Sony IMX307
Maximum Resolution	2048*1536@25fps
Minimum illumination	Color：0.01Lux
Camera
AGC	Auto/Manual
S/N ratio	≥50dB（AGC OFF）
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	70dB
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & night	External control（IR Cut Filter）
Compressed format
Video compression	H.265/H.264 Main Profile
Audio compression	G711
Image resolution
Main stream	2048*1536@25fps,1080P/720P/D1@30fps
Sub stream	D1/VGA/640*360/CIF@30fps
General protocol
Network protocol	TCP/IP，HTTP，NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
ONVIF protocol	Standard ONVIF
Network interface
Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	12VDC
Size	38x38mm
Operation temperature	-30°C ~85°C
Working humidity	≤90% RH（non-condensing）
