MC-K10H Smoke&Fire Recognition module - Shenzhen CCDCAM Technology Co.,Ltd

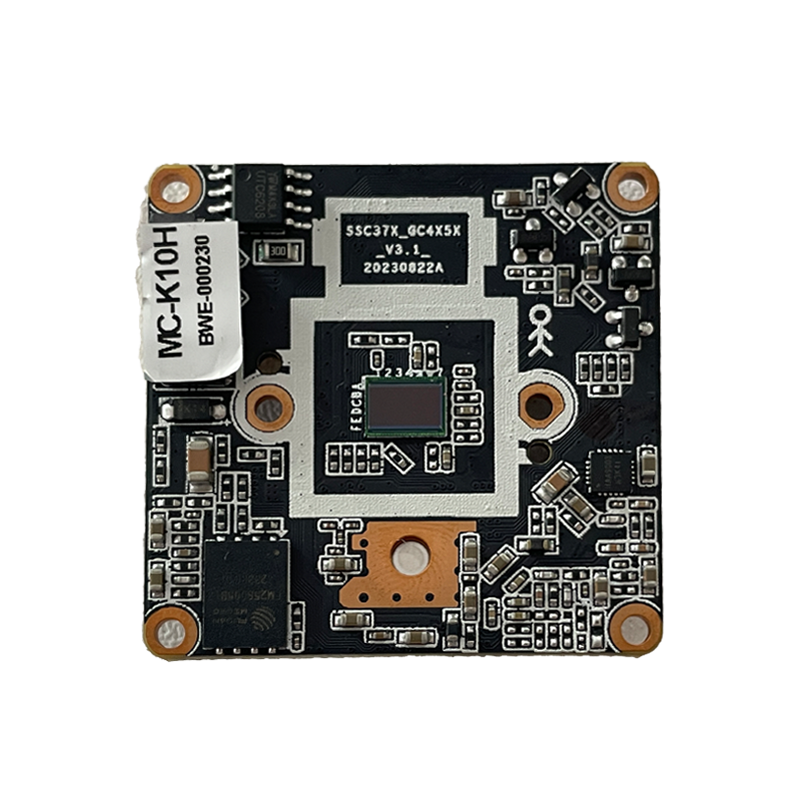

The MC-K10H module is a camera module designed for the timely detection and alarm signaling of smoke and flames, suitable for both indoor and outdoor environments. Its smoke and flame detection algorithms can identify smoke and flame regions within dynamic video streams. After multi-frame fusion calculations, it can output alarm information for smoke and flames. Additionally, the MC-K10H is an easy-to-develop and integrate module compatible with other digital systems. It supports local area network (LAN) monitoring, configuration, and upgrades. The module comes with a standard SDK for both Linux and Windowsplatforms.

Key Features

1/3” 4MP CMOS Sensor
Support H.256+, H.256, H.264 encoding.
Support soft light sensitivity and full color .
Support smart analytical, smoke and flames detection.
Support two way audio, voice broadcast, custom voice messages.
Support image flipping and support digital WDR.
Support ONVIF.
Support IP filter and block list.
Support auto-focus and PT
Support TF card/WiFi/4G/ alarm input and out/

Image sensor
Model	MC-K10H
SOC	SSC37D
Sensor	1/3" 4MP CMOS
Maximum resolution	2560*1440@25fps
Minimum illumination
Camera
AGC	Auto/Manual
S/N ratio
Shutter speed
Wide dynamic range	≥73.7dB
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & Night
Image resolution
Main stream	25601440/23041296/19201080/1280720/19441944/12001200@25fps
Sub stream	640*360/VGA/D1
Audio resolution
Audio Out/In	Supported/Wired required
Audio processing	G.711 codec standard

Protocol
Network protocol	HTTP/RTSP/DHCP/NTP/P2P/ONVIF and more

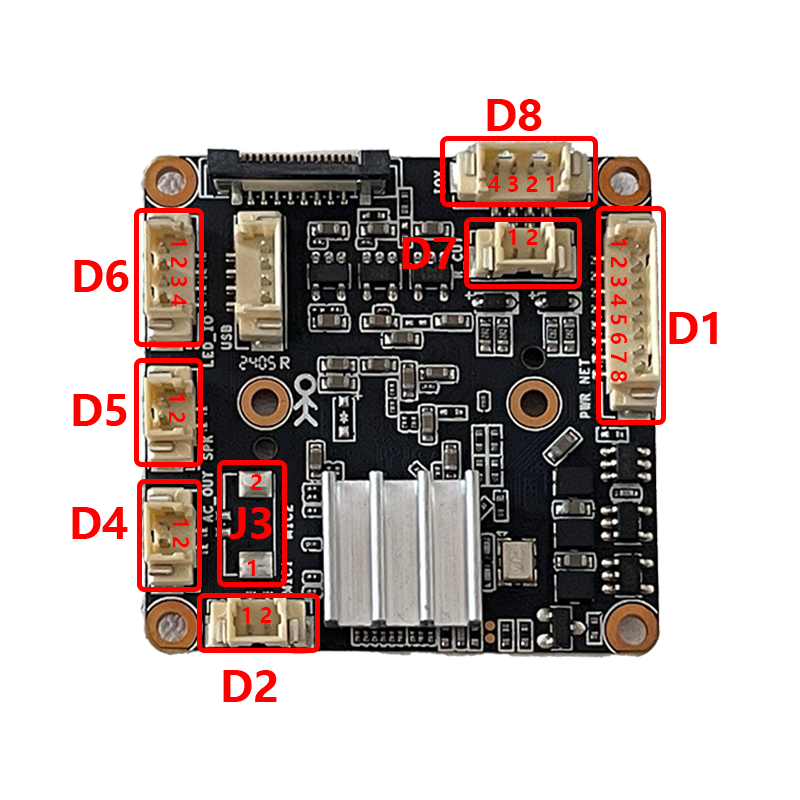

Interface
Network interface	10/100Mps Base-T Ethernet, 1*RJ45 interface
IRCUT interface	Integrated IRCUT switching circuit with automatic, external, manual, and timed control for day/night mode.
Light board interface	PWM yellow light
Storage interface	TF memory card up to 512GB
Extra interface	Expandable with either 1 channel of IO output or 1 channel of 458 interface.
General
Power supply	DC 12V protected from lightning
Additional functions	OSD supported/Two way audio/Support audio and video synchronously/smoke and flame detection /voice alarm/
Standard	International: IEC61000-4-5 China: GB/T17626.5

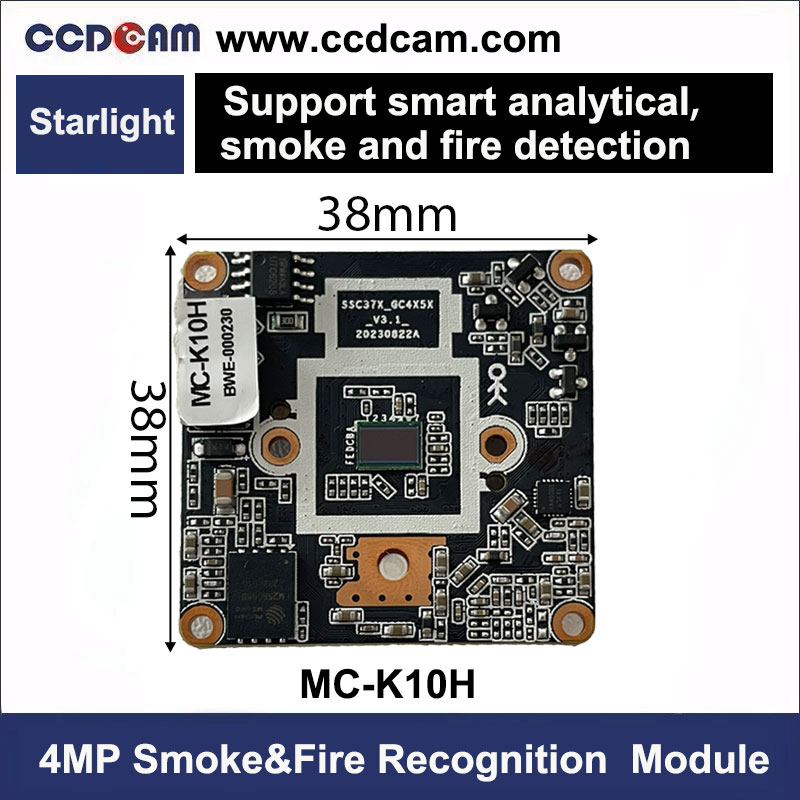

Size	(L)38mm * (W)38mm
Operation temperature	-40°C~+65°C
Working humidity	≤90% RH（non-condensing）
