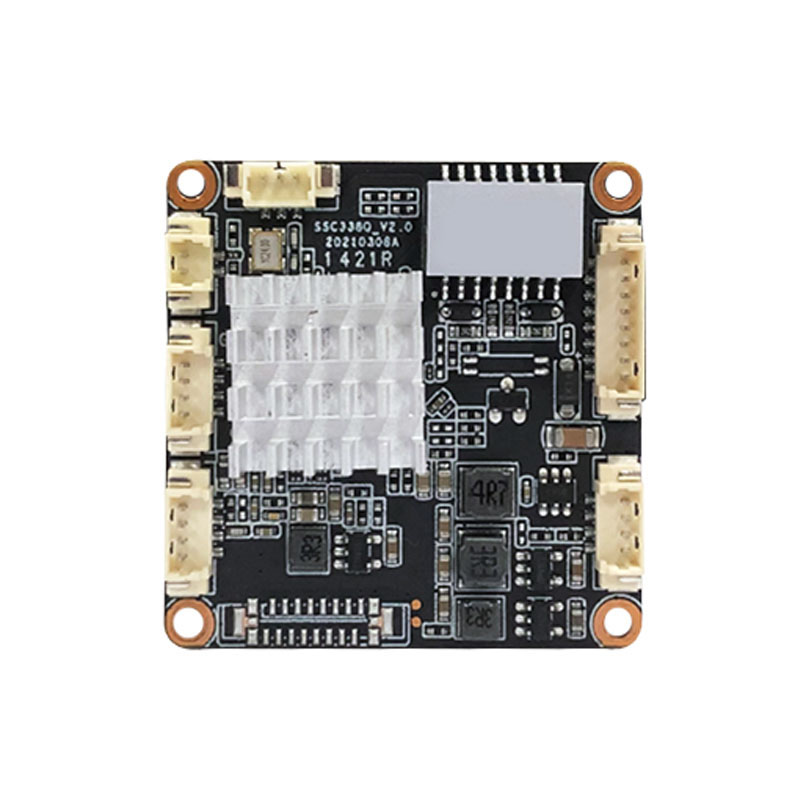

MC800S-4K Real-time Illumination AI HD Network Camera Module

The IMA80S15 4K Real-time lighting AI high-definition network camera module adopts upgraded H.265 encoding technology, and the environmentally friendly series brings efficient video compression capabilities. It can save bandwidth and storage space. Embedded web server, supporting internet exploration monitoring, configuration, and upgrade; Standard SDK (Linux, Windows), easy to integrate with other digital systems.

Key Features：

1/2.8”8MP IMX415 Sensor
Maximum resolution up to 3840x2160@20fps
True Day/Night, 3D DNR,WDR
Support Motion Detection
Support AI human detection ,vehicle detection
Support the P2P on Android, IOS
Support two way audio
Support ONVIF2.4
Support TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP

Image sensor
Sensor	1/2.8" 8MP IMX415 CMOS
Maximum resolution	3840x2160@20fps
Minimum illumination	Color：0.05Lux B/W：0.01Lux
Camera
AGC	Auto/Manual
S/N ratio	≥50dB（AGC OFF）
Shutter speed	1/2 - 1/20 ,000s，Slow shutter support
Wide dynamic range	≥73.7dB
Exposure mode	Auto/ Manual/shutter mode
White balance	Auto/ Manual /ATW/ Indoor/Outdoor/ lamp
Day & Night	External control（IR Cut Filter）
Image resolution
Main stream	3840 ×2160@20fps 3072x2048/2592x1944@30fps
Sub stream	640×480/480x360/352×288/176×144@30fps
Protocol
Network protocol	HTTP/RTSP/DHCP/NTP/P2P/ONVIF
Network interface
Wired	1ch 10/100BaseT Ethernet，RJ45 interface
Other
Power supply	12VDC

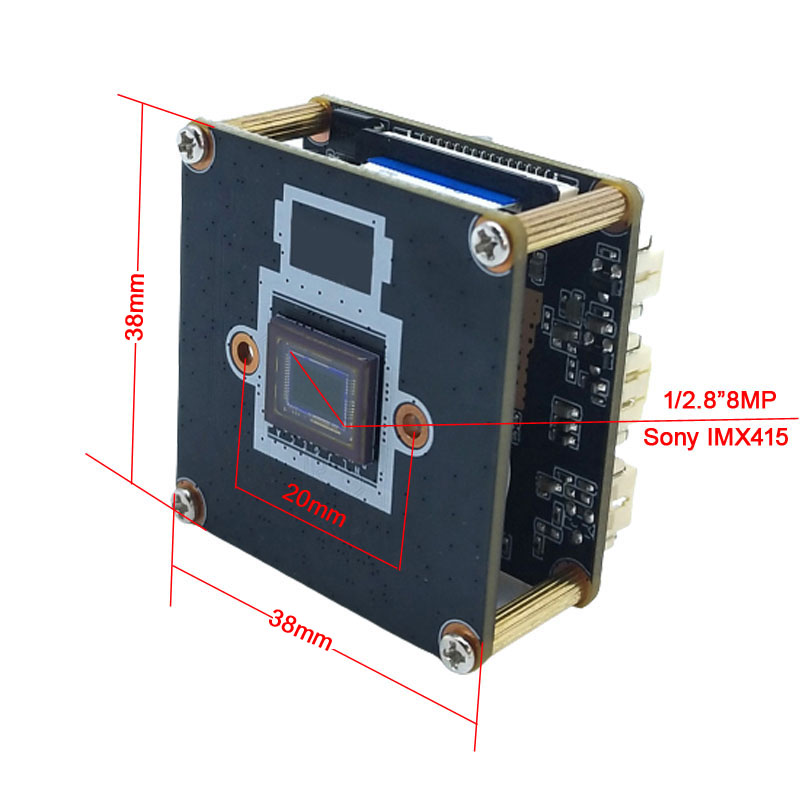

Size	38x38mm
Operation temperature	-10°C~50°C
Working humidity	≤90% RH（non-condensing）
