MY-Y10 3MP Dual Band WiFi PTZ IPC Module
38mm x 50mm MSC335
MY-Y10 is a 3MP Dual Band WiFi PTZ IPC module designed for indoor home surveillance environments or smart robotics applications. With its advanced features, it provides reliable monitoring and control, making it an ideal choice for enhancing security and automation in your home.
Image sensor |
|
|
Model |
MY-Y10 |
|
SOC |
MSC335 |
|
Sensor |
1/3" 3MP CMOS |
|
Maximum resolution |
2304 x 1296 |
|
Minimum illumination |
/ |
|
Camera |
|
|
AGC |
/ |
|
S/N ratio |
≥52 dB |
|
Shutter Speed |
/ |
|
Wide dynamic range |
/ |
|
Exposure mode |
/ |
|
White balance |
Auto/ Manual |
|
Day & Night |
Supported |
|
Image resolution |
|
|
Main stream |
2304×1296,1920×1080,1280×720 |
|
Sub stream |
640×360 |
|
Audio resolution |
|
|
Audio Out/In |
Supported/Wired required (8Ω1W) |
|
Audio processing |
G.711 codec standard |
|
|
|
|
Protocol |
|
|
Network protocol |
RTSP/DHCP/P2P |
|
Wi- Fi |
IEEE 802.11 a/b/g/n |
|
Interface |
|
|
Network interface |
10/100Mps 1*RJ45 interface |
|
IRCUT interface |
Integrated IRCUT/ Smart IR Control |
|
Light board interface |
PWM yellow light / PWM IR / CDS |
|
Storage interface |
TF card slot extension supports up to 512GB |
|
Extra interface |
Supports motorized zoom and autofocus interfaces, requiring a zoom lens, zoom control board, and zoom firmware. |
|
Mobile APP |
AC18Pro APP (iOS, Android) |
|
General |
|
|
Power supply |
DC 5V 1.25w protected from lightning |
|
Additional functions |
OSD supported/Two way audio/Support audio and video synchronously /voice alarm/ Hardware restore./ Privacy Settings |
|
Standard |
International: IEC61000-4-5 China: GB/T17626.5 |
|

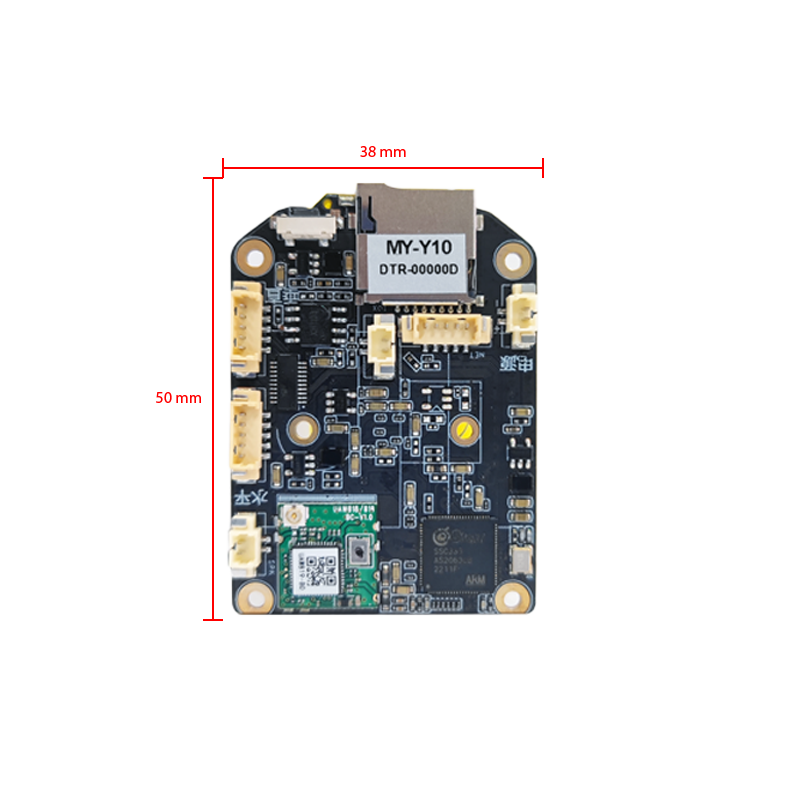

Size |
(L)50mm * (W)38mm |
|
Operation temperature |
-40°C~+85°C |
|
Working humidity |
≤90% RH(non-condensing) |
|
