EC-HD5072

CN

Model	EC-HD5072
Camera type	5MP HD Waterproof IR camera
Image Sensor	5MP CMPS sensor
Effective Pixels	PAL:2560x1920@25fps NTSC:2560x1920@30fps
Resolution	2560x1920

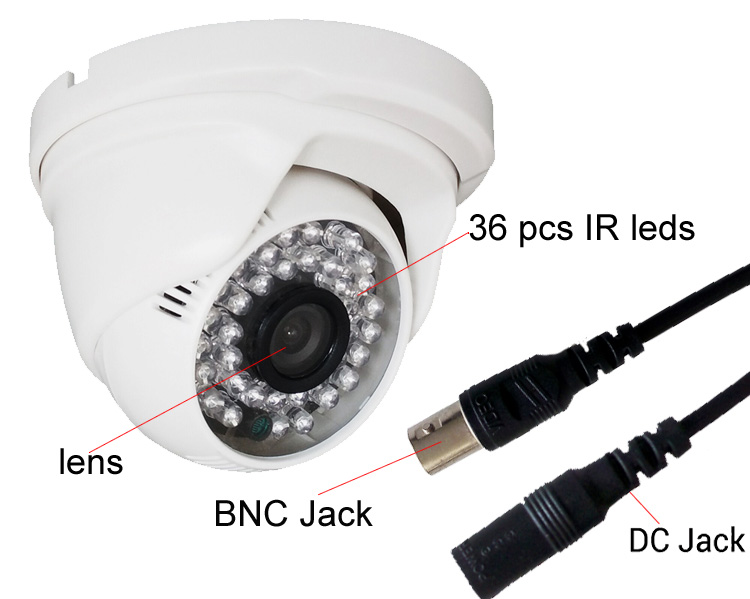

IR-LED	36pcsxФ5 IR Leds
Illuminate Distance	30m IR Distance
Day/Night	IR-CUT filter
Min.Illumination	Color 0.01Lux
Electronic Shutter	4/25-1/45,000s

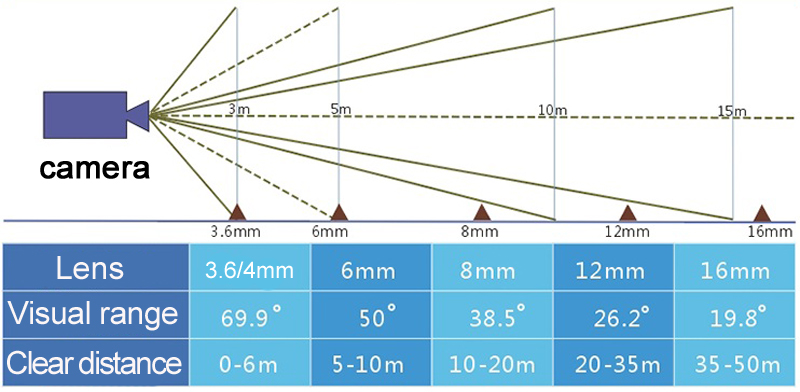

Lens	3 or 6mm Lens
Lens Mount	M12

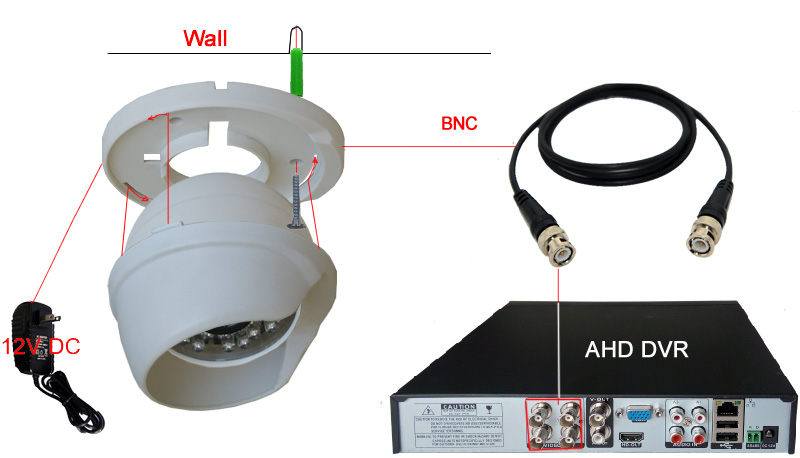

Video output	1CH AHD/TVI/CVI/CVBS Video output
Work environment	-10℃~60℃90％RH
Power supply	DC 12V±10%
BLC	Auto BLC
White Balance	Auto White Balance
Max transmission distance	common 75-3 lines can be up to 500 m
Waterproof Criterion	IP65
Package Size	12 x 13 x 10 cm
Gross weight	0.34 Kg
