Model

NVR-104E-P4

Video/Audio Input

IP Video Input

4-ch

Network

Incoming Bandwidth

40Mbps

Outgoing Bandwidth

40Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz , 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, 3.5mm

Recording Resolution

8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF

Capability

1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

PoE

Interface

4 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 54W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

48V DC

Power Consumption: ≤9 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

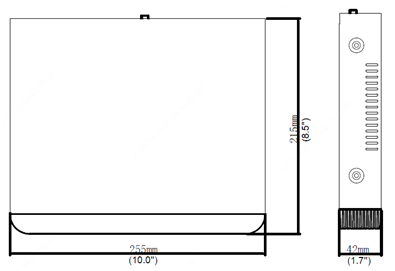

Dimensions (W×D×H)

255mm ×215mm× 42mm (10.0" × 8.5"×1.7")

Weight (without HDD)

≤1.2kg (2.65 lb)
