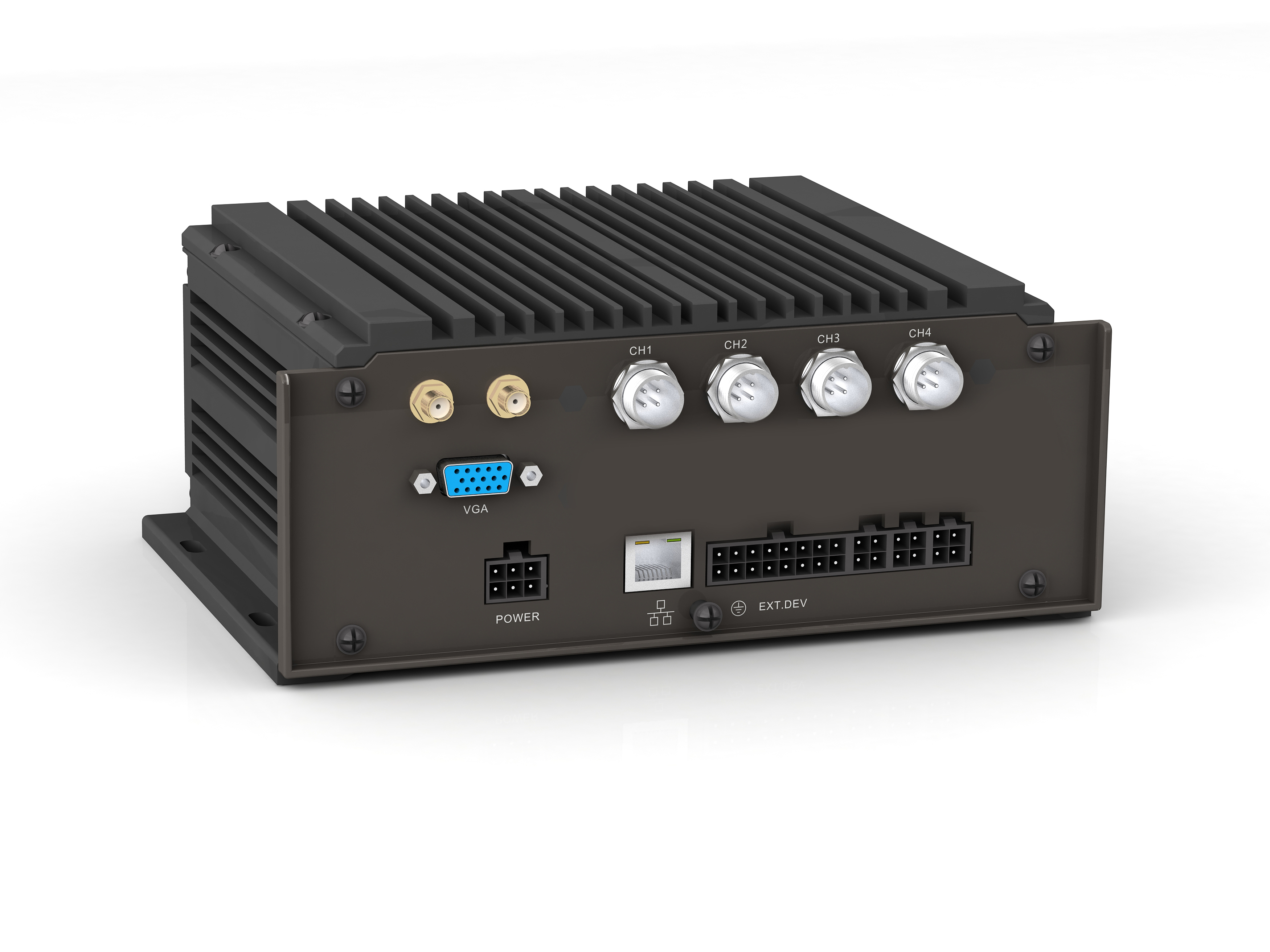

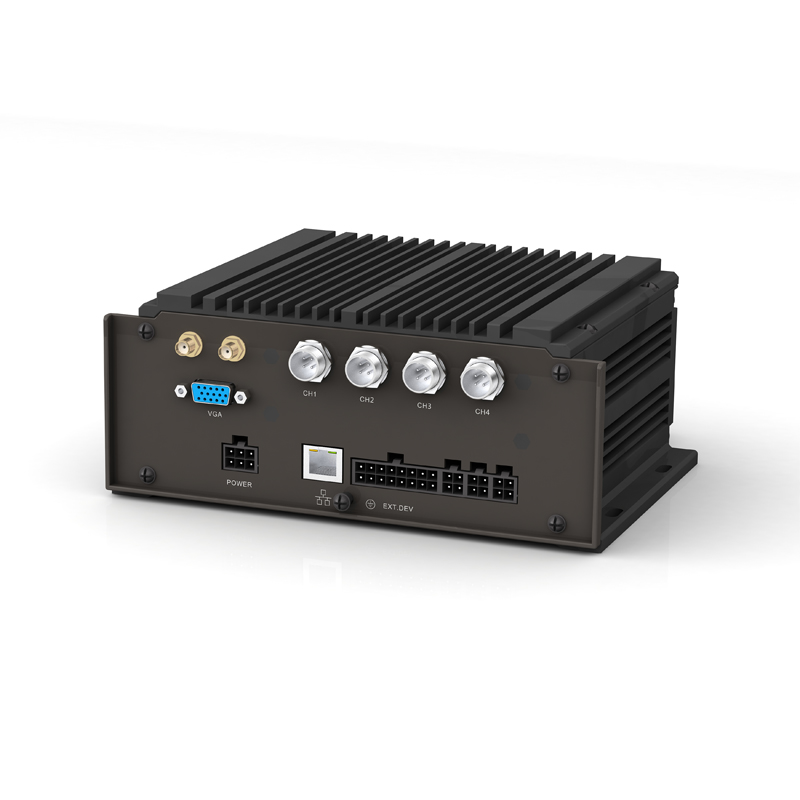

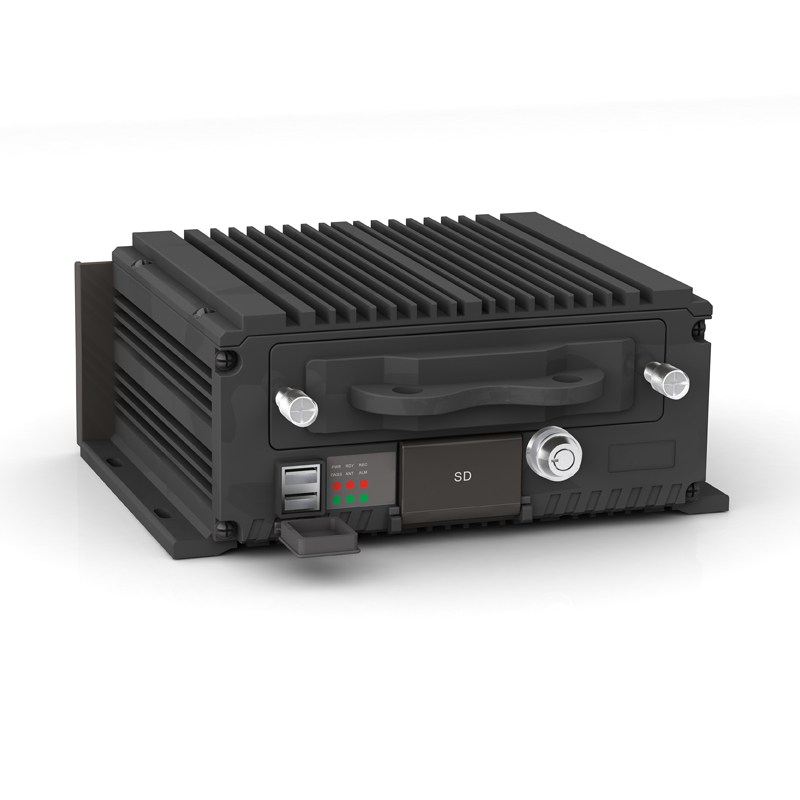

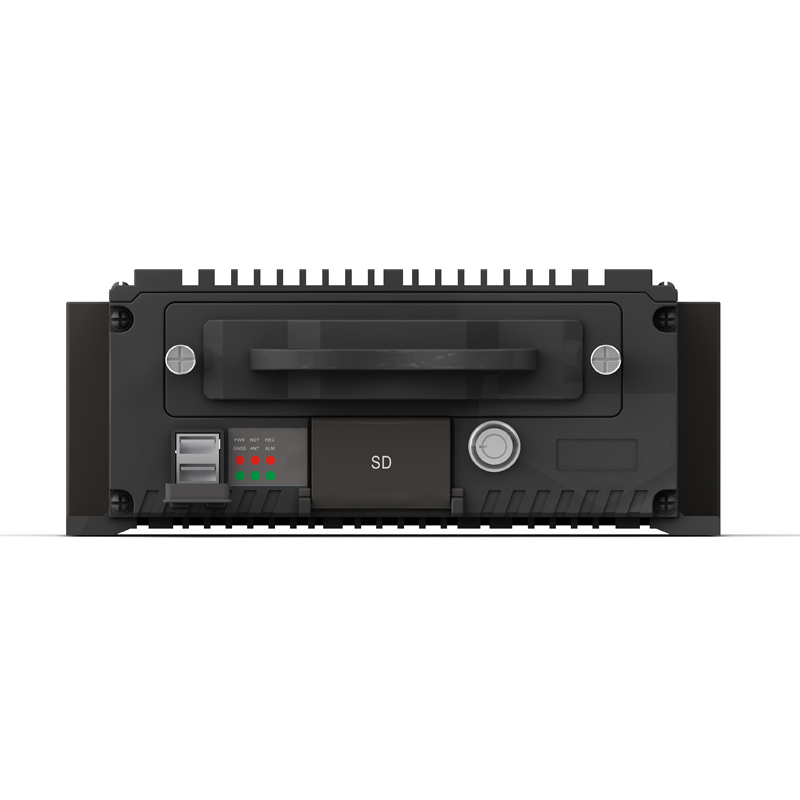

HT-MD62104S MDVR

4CH Mobile Video Recorder

● 4ch of analog video and audio input, each channel up to 1080P encoding
● With 1ch CVBS video output, 1ch audio output
● With 1ch VGA video output interface, max resolution up to 1920x1080
● It can access 1xM2 SSD and 1xSD card
● simultaneously (SD card as a spare hard disk)
● Built-in 3G/4G wireless module, providing flexible wireless transmission
● Built-in high-sensitivity satellite positioning module, supporting extended BDS
● With information collection interface, it can collect the driver's turn left, turn right, brake, reverse, etc
● Wide range power supply (DC +9V to +36V)

MD62104S
Isystem
Operating system	Embedded Linux operating system
Compression
Video compression	H.265
Audio compression	ADPCM
Video
Encode	1080P@25FPS/352 x 288@1-10FPS
Playback	4ch x 1080P@25FPS
Video Input/Output	4ch analog/1 x cvbs,1 x VGA
Audio Input/Output	4ch/1ch
Wireless signal
Wireless network	3G/4G
Positioning	GPS,BDS
Storage
Storage	1× SSD with M2 interface
Function
Driving information collection	4ch high level signal inputs.
Alarm input / output	4ch, switch trigger ,2ch, switch output
Interface
Network interface	1× RJ45 100M
USB interface	2 × USB 2.0
Serial port	1× RS232 (debugging)
other
Power supply	DC 9V-36V
Wright/dimensions (W×D×H)	1.58kg/200x150x80mm
Working Temperature/humidity	-10 °C to +55 °C,10% to 90%
