Key Features
● Support
Ultra 265/H.265/H.264 video formats
● 10-channel input
● Third-party IP cameras supported with ONVIF
● Support 1-ch HDMI, 1-ch VGA
● HDMI and VGA simultaneous output
● Up to 5MP resolution recording
● 1 SATA HDD, up to 6TB
● Support cloud upgrade
.jpg)

|
Model |
NVR-110B2 |
|
Video/Audio Input |
|
|
IP Video Input |
10-ch |
|
Network |
|
|
Incoming Bandwidth |
40Mbps |
|
Outgoing Bandwidth |
40Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, DHCP |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
|
Synchronous Playback |
10-ch |
|
Corridor Mode Screen |
3/4 |
|
Decoding |
|
|
Decoding format |
Ultra 265/H.265/H.264 |
|
Liveview/Playback |
5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
|
Capability |
1 x 5MP@30, 1 x 4MP@30, 1 x 3MP@30, 2 x 1080p@30, 4 x 720p@30, 10 x D1@30 |
|
Hard Disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
up to 6TB for each disk |
|

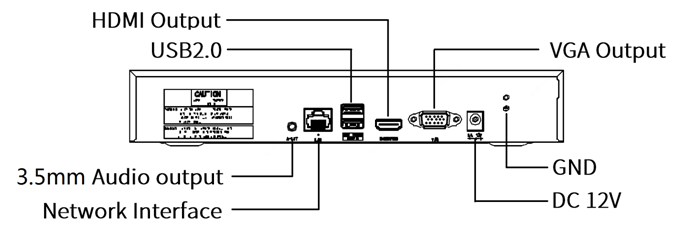

External Interface |
|
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
|
USB Interface |
Rear panel: 2 x USB2.0 |
|
General |
|
|
Power Supply |
12V DC Power Consumption: ≤3 W (without HDD) |
|
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|

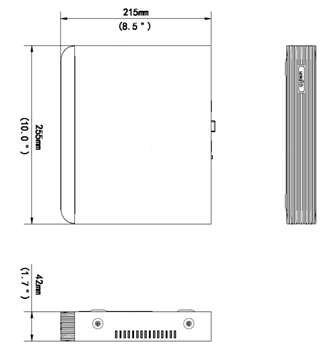

Dimensions (W×D×H) |
255mm × 215mm × 42mm (10.0" × 8.5" × 1.7") |
|
Weight (without HDD) |
≤1.2kg (2.64lb) |
