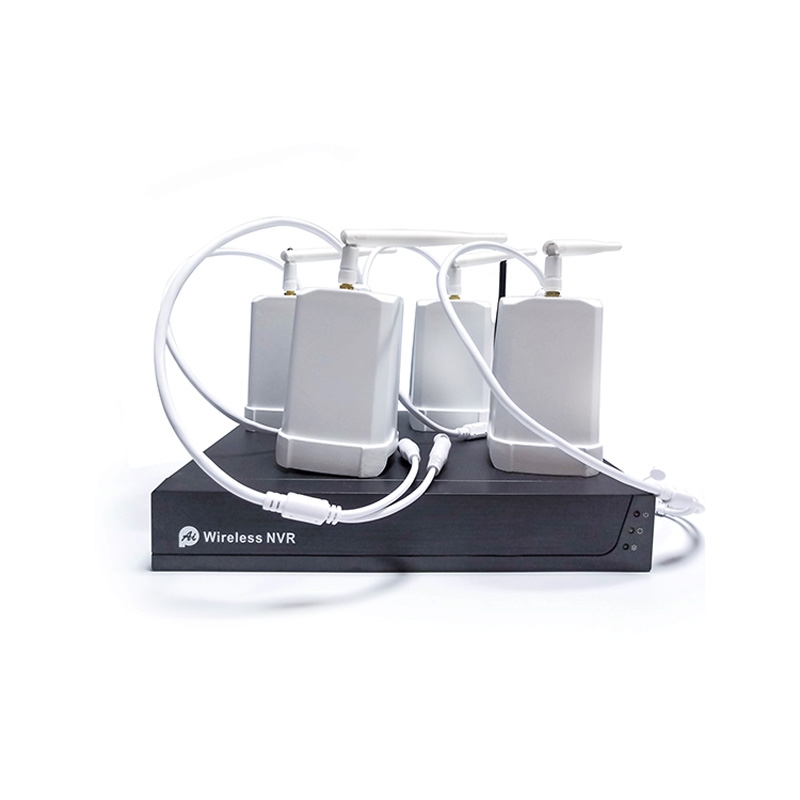

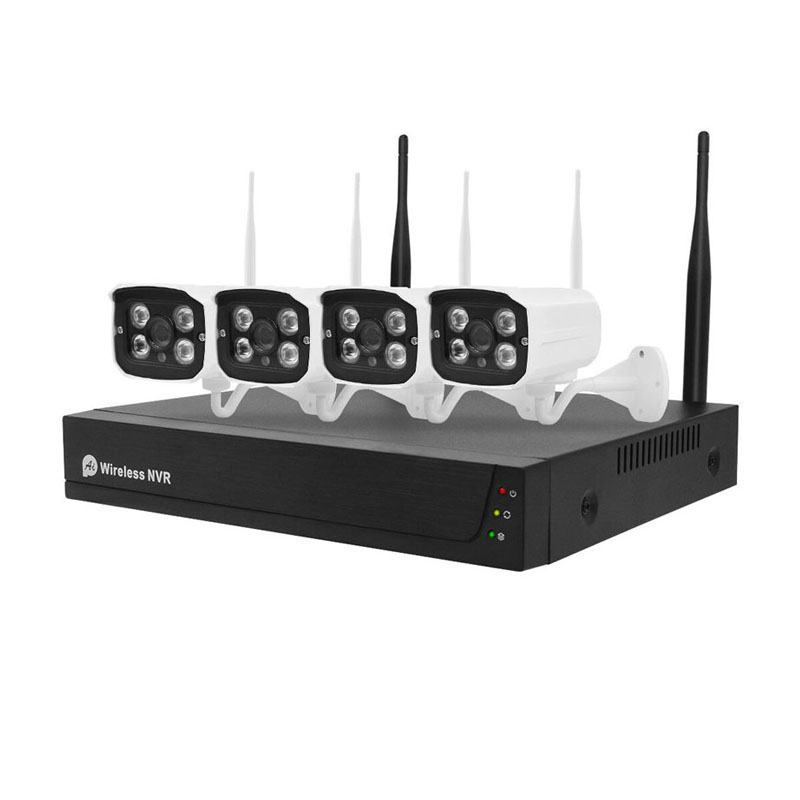

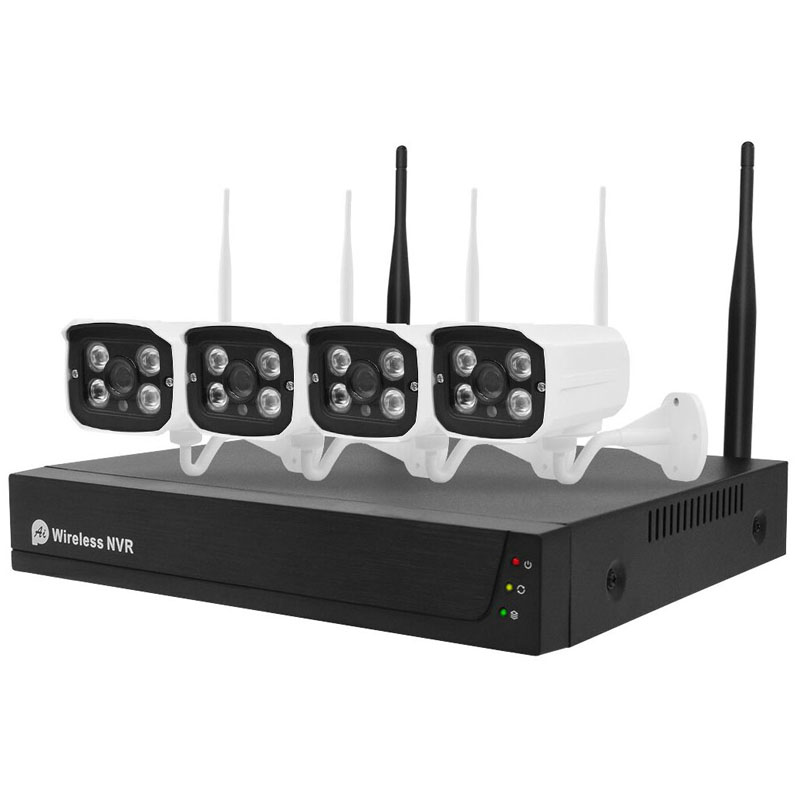

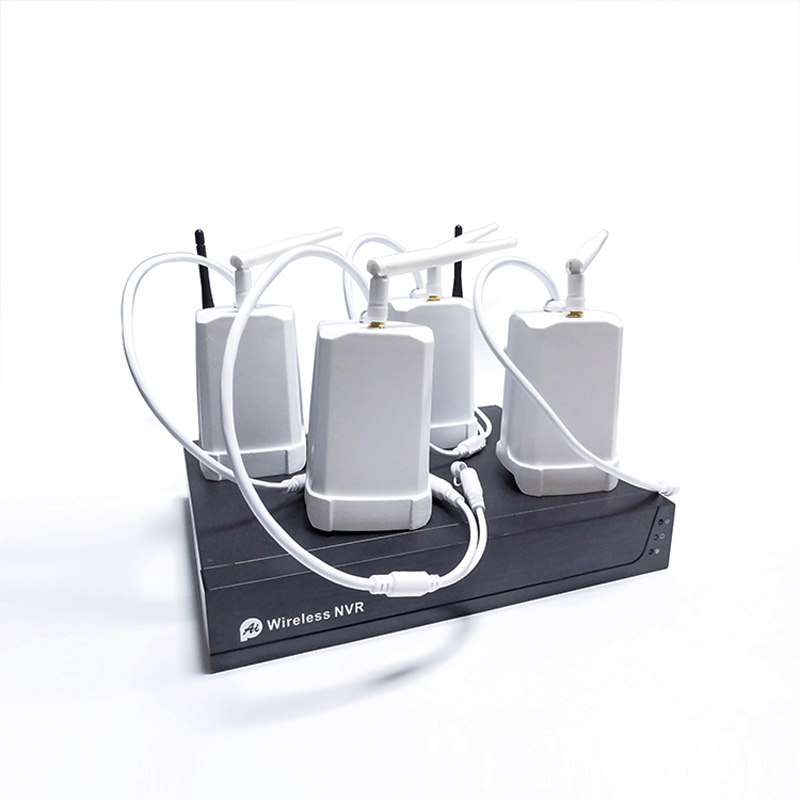

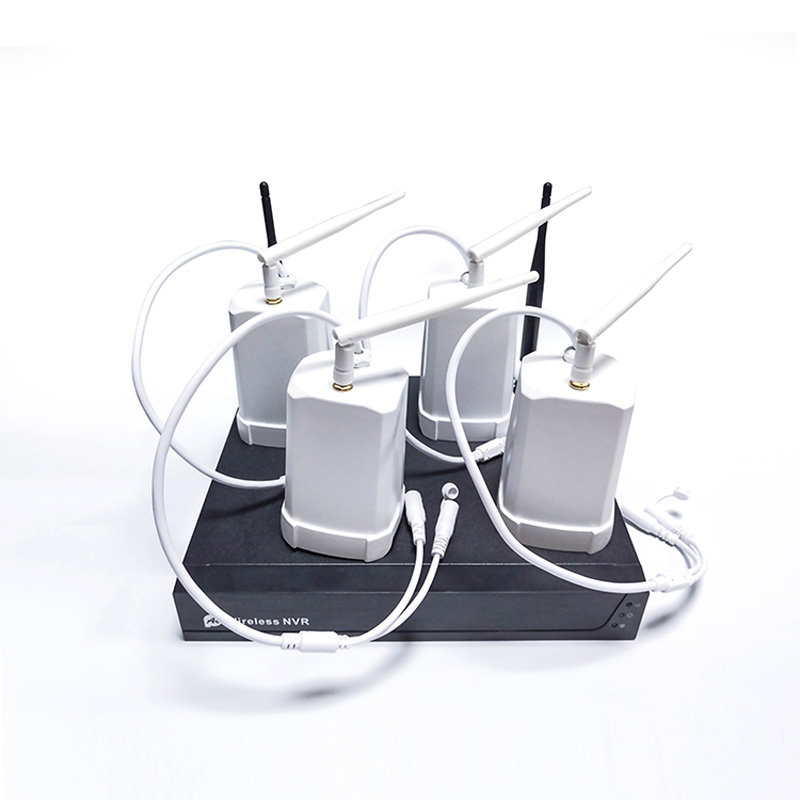

NVK-7204

● Automatic Wireless Connection, plug and play

● 1080P H.265+ wireless network recorder and 4 1080P wireless cameras

● In open space without itrefere transmission distance up to 800 meters

● Insert professional surveillance Wireless board, with stonger anti-interfere ability

● One-push to configure

● Support alarm push motion detection and alarm output(voice/email/ FTP etc.)

● Support Android/Apple cell phone or pad by LAN & WAN visit and control

● P2P IP PRO, fluent and fast remote access

● Suit to homes, offices, small businesses & retail stores

● Easy to Install, User-Friendly Operation

IP Camera Specification

Camera
Model	NV-7201T-K
Model	2.0Mp Wireless IP Camera
Image sensor	1/2.9" 2.0M Pixel CMOS
Lens	4 mm, horizontal field of view: 75°
Lens Mount	M12
Min. Illumination	Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON)
S / N ratio	≥39dB
Shutter speed	1/5 - 1/20,000s，
Day & Night	Day / Night / External control（IR Cut Filter）
AGC	Auto / Manual
White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Wide dynamic range	Digtal Wide dynamic range
Digital noise Reduction	2DNR,3DNR
Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
Audio Compression	G711，PCM
Max.Image Resolution	1920x1080@20fps
Image Resolution	Main stream （1920x1080、1280×960、1280×720、720×576、640×480）
Image Resolution	sub-stream （640×480、352×288、320×240、176×144）
Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
Motion detect	Support
Privacy Zone Masking	4 privacy masks programmable
P2P	Android、IOS
Protocols	TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Onvif	Non- Support
Wireless	Frequency:2.4G
Wireless	Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation
Power	12VDC@0.12A
Dimensions	38x38x5mm
Working Temperature	-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)

NVR
Model		NV-7104-K
Model		4CH Wireless 1080P HD-NVR
System	Main processor	Hi3536D
System	Operating System	Embedded Linux
Video	Video compression	H.265 High Profile/ H.264 Main Profile
	Video output	720P60,XGA,1080P60
	Video input(IP)	41080P/4960P/4*720P
Audio	Audio compression	G.711
Audio	intercom	None
Record & playback	Recording mode	Manual/Alarm/Video Detection/Continuous
Record & playback	Local Playback	1*1080P
Storage & Backup	Record Storage	network
Storage & Backup	Backup mode	Network backup, USB hard disk
Network Control	Protocol	TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
Wireless	Frequency	2.4G
	Antenna Structure	2 × 2MIMO
	Distance	More than 800 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the situation

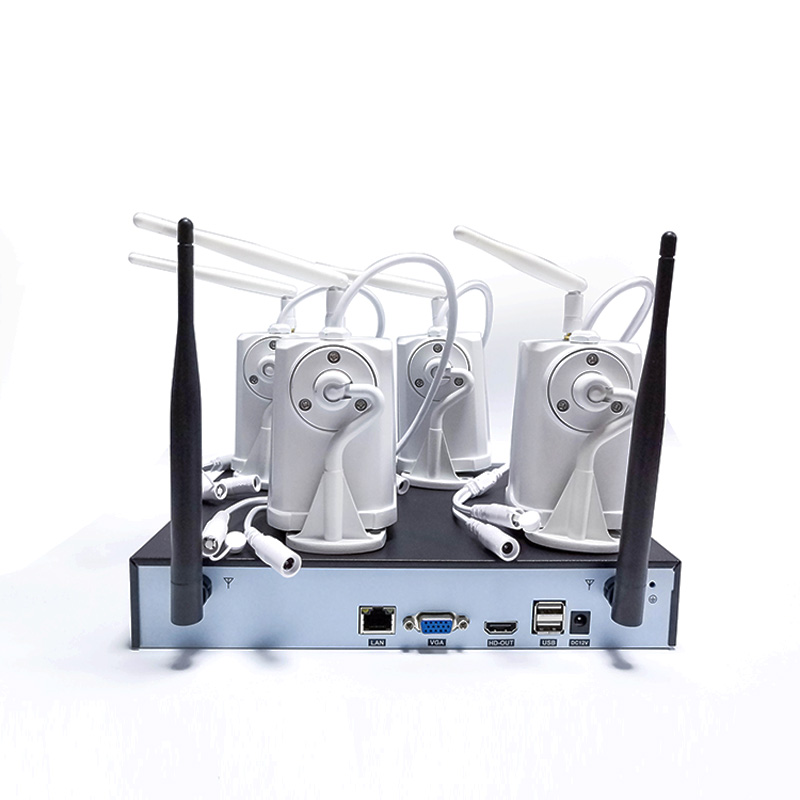

Interface	Video output	1ch HDMI, 1ch VGA output
	Audio I/O	None
	Alarm I/O	None
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port
	USB	2*USB 2.0 port
	Hard disk	1 SATA(Up to 4TB)
Oter	Power supply	DC +12V /3A
	Power Consumption	5W（Without HDD）
	Work environment	Temperature:-10℃－＋55℃, Humidity:10%-90%RH
