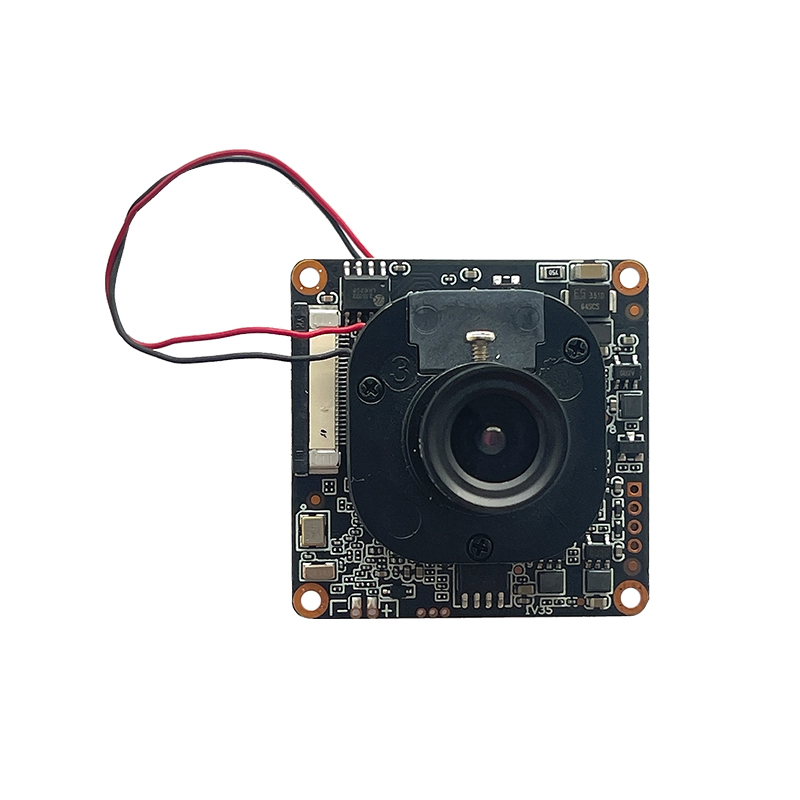

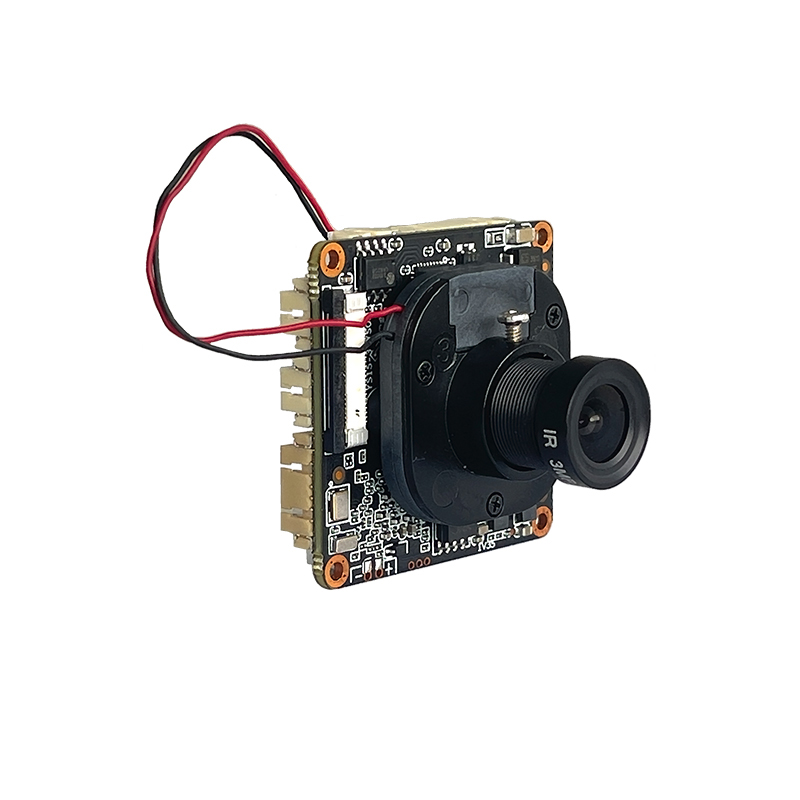

IM20A03 2.0MP Low-illumination HD IPC Module

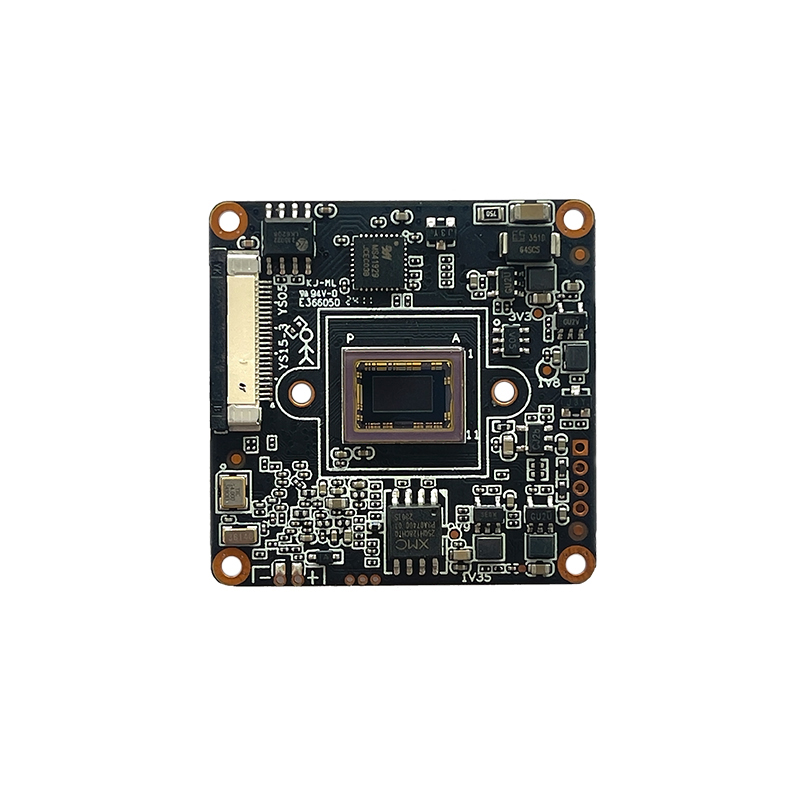

This camera module features a 1/2.8” 2MP Sony IMX307 STARVIS CMOS sensor, offering a maximum resolution of up to 1920×1080@60fps.
With True Day/Night, 3D DNR, and True-WDR capabilities, it ensures clear and detailed footage in various lighting conditions for high-quality video capture.
The camera module supports humanoid detection and motion detection, enhancing security monitoring efficiency.
Additionally, it enables two-way audio communication with a built-in audio amplifier function and supports the Tuya P2P app on Android and iOS for convenient remote access.
With support for the ONVIF protocol, and OPENIPC development, this camera can be easily integrated into diverse digital systems, making it a versatile and reliable surveillance solution.
Image Sensor |
|
Sensor |
1/2.8” 2MP Sony IMX307 STARVIS CMOS |
Maximum Resolution |
1920x1080@60fps |
Minimum Illumination |
0.003lux @F1.0(Color) / 0.0005 lux@F1.0 (B/W) |
Camera |
|
AGC |
Auto/Manual |
S/N Ratio |
≥45dB(AGC OFF) |
Shutter Speed |
1/2 - 1/20 ,000s,Slow shutter support |
Wide Dynamic Range |
70dB
|
Exposure Mode |
Auto/ Manual/shutter mode |
AWB |
Yes |
Day & Night |
External control(IR Cut Filter) |
Light Control |
Support IR/White/dual light, three mode independent control |
Compression |
|
Video Compression |
H.265+/H.265/H.264 Main Profile /M-JPEG |
Audio Compression |
G711U,G711A,PCM |
Image Resolution |
|
Main Stream |
1920 × 1080/ 1280x960/ 1280x720@60fps |
Sub Stream |
640×480/480x360/352×288/176×144@30fps |
General Protocol |
|
Network Protocol |
TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP/P2P |
ONVIF protocol |
Yes |
Compatibility |
Support XM protocol |
P2P |
|
Support TUYA APP |
Support for Tuya APP(Android, IOS) |
Function |
|
Web Configuration |
Yes |
OSD |
Yes |
Motion Detection |
Yes |
Humanoid Detection |
Yes |
Reset |
Support cable reset button(opticnal) |
Amplifier |
Built-in amplifier |

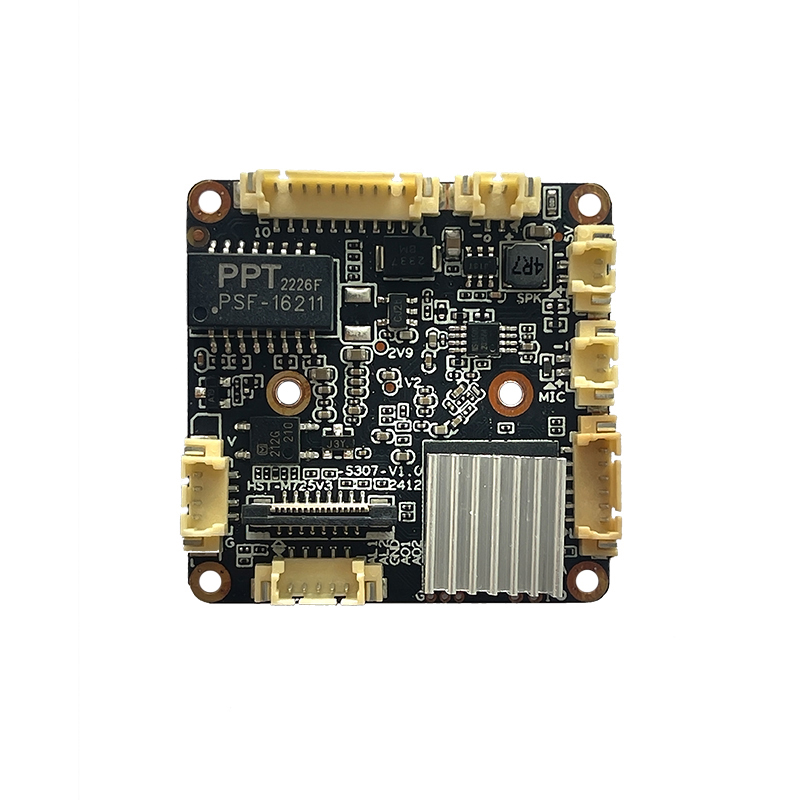

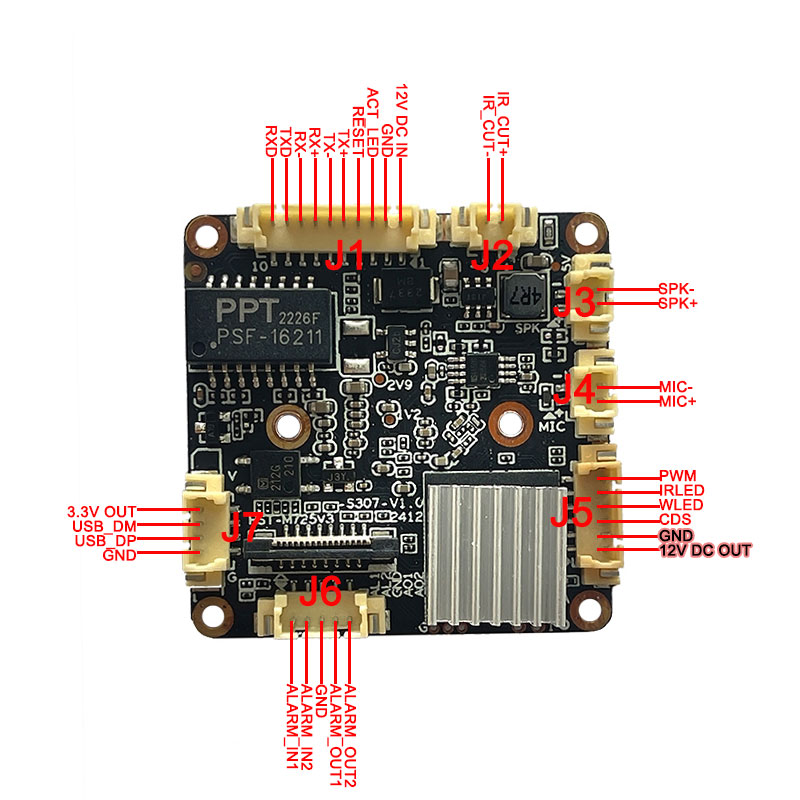

Interface |
|
Wired |
1ch 10/100 BaseT Ethernet,RJ45 interface |
Audio |
Microphone input/output |
Alarm |
2 ports input, 2 ports output |
UART |
Support |
USB |
Support |
TF Card |
Optional and max. 512G (reserved extended SD slot) |
Other |
|
Power Supply |
DC 12V |
Size |
38x38mm |
Operation Temperature |
-10°C~50°C |
Working Humidity |
≤90%RH(non-condensing) |
