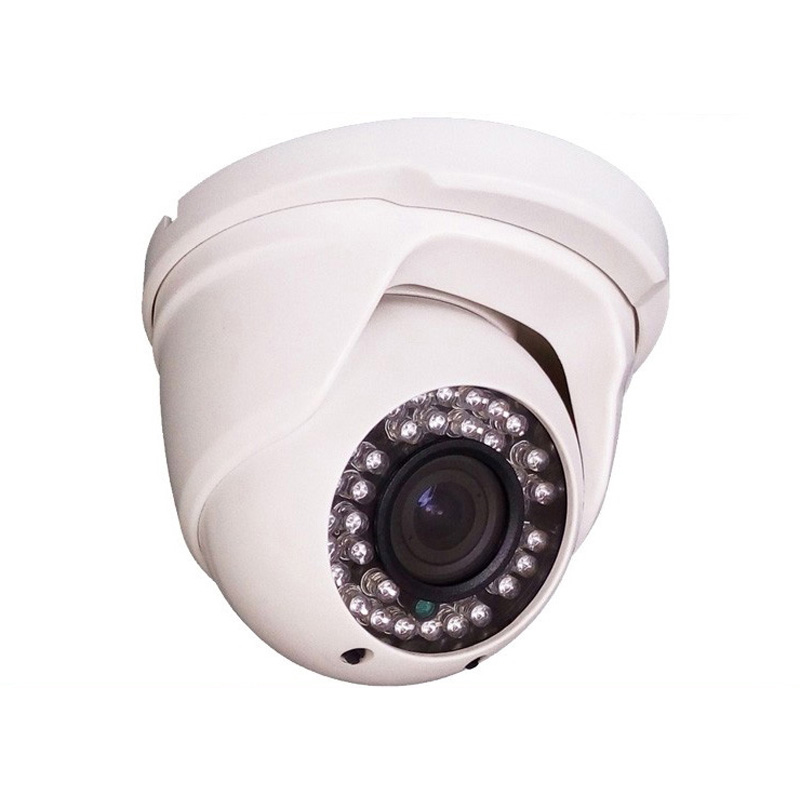

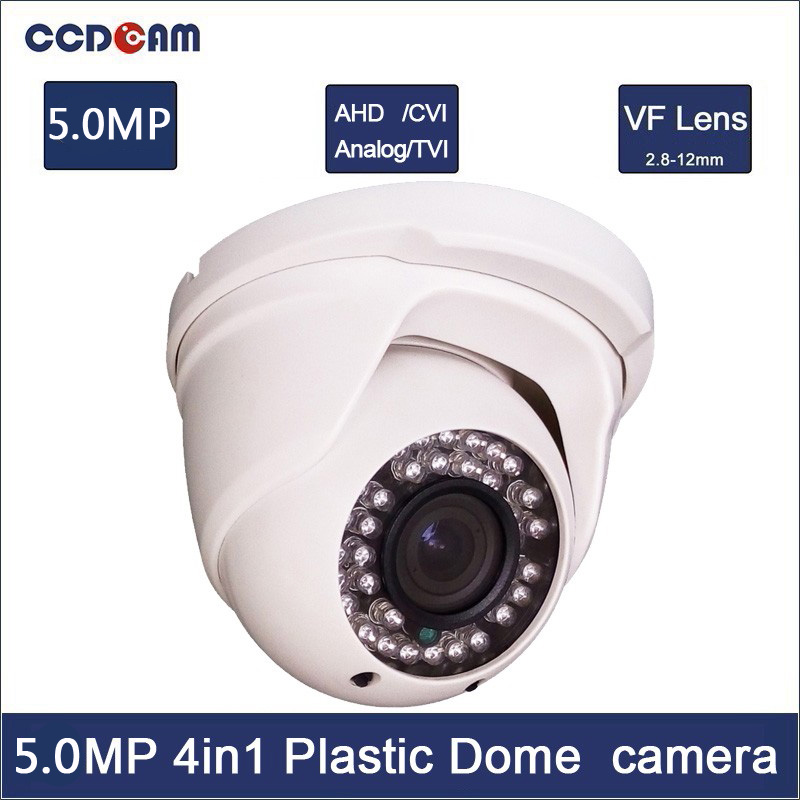

EC-HD5073V

CN

Model	EC-HD5073V
Camera type	5MP HD Waterproof IR camera
Image Sensor	5MP CMOS sensor
Effective Pixels	PAL:2560x1920@25fps NTSC:2560x1920@30fps
Resolution	2560x1920
IR-LED	36pcs mini Array IR Leds
Illuminate Distance	30m IR Distance
Day/Night	IR-CUT filter
Min.Illumination	Color 0.01Lux
Electronic Shutter	4/25-1/45,000s
Lens	2.8-12mm varifocal lens
Lens Mount	M12
Video output	1CH AHD/TVI/CVI/CVBS Video output
Work environment	-10℃~60℃90％RH
Power supply	DC 12V±10%
BLC	Auto BLC
White Balance	Auto White Balance
Max transmission distance	common 75-3 lines can be up to 500 m
Waterproof Criterion	IP65
Package Size	14 x 14 x 12 cm
Gross weight	0.48 Kg
