| Model | EC-HW5018BV |

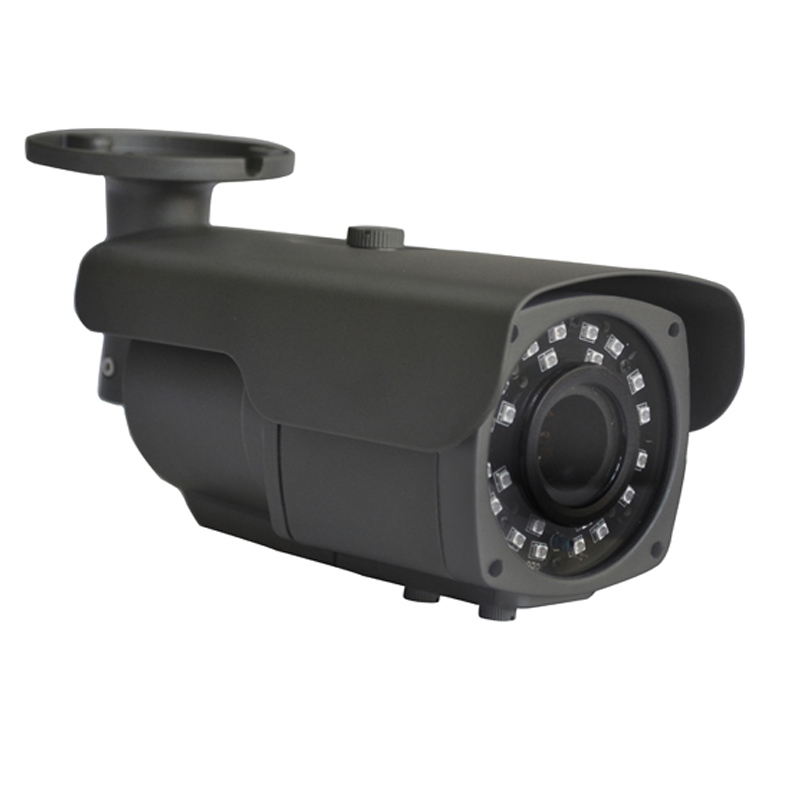

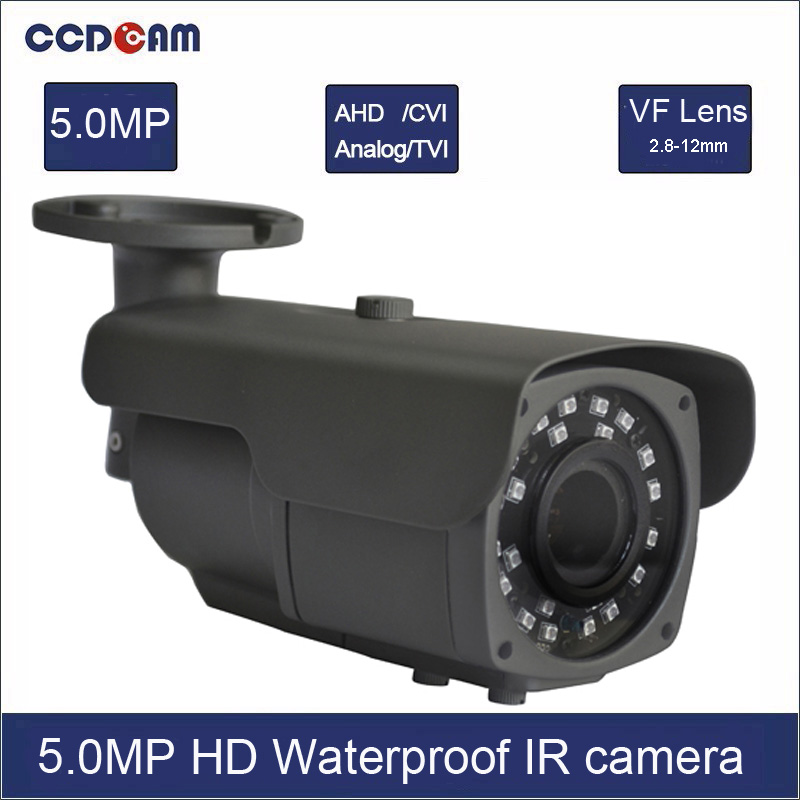

| Camera type | 5.0MP HD Waterproof IR camera |
| Image Sensor | Sony IMX335 sensor |
| Effective Pixels | PAL:2560x1920@25fps NTSC:2560x1920@30fps |
| Resolution | 2560x1920 |
| IR-LED | 24pcs mini Array IR Leds |
| Illuminate Distance | 40m IR Distance |
| Day/Night | IR-CUT filter |
| Min.Illumination | Color 0.01Lux |
| Electronic Shutter | 4/25-1/45,000s |

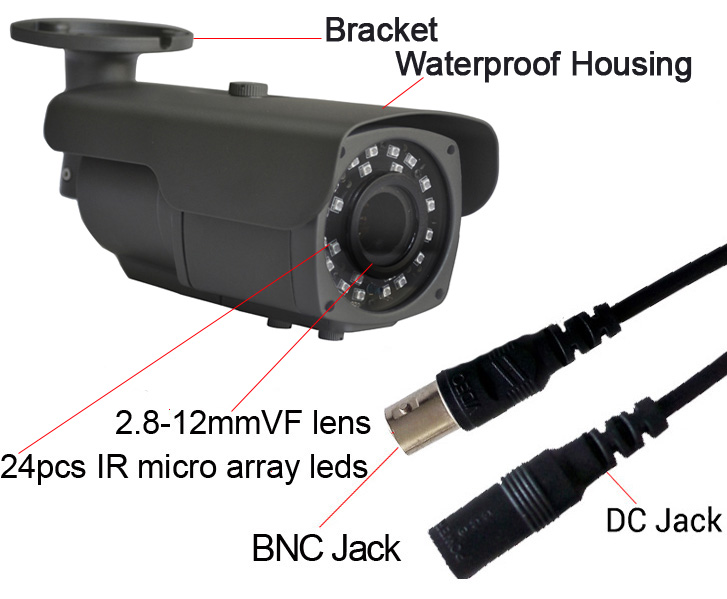

| Lens | 2.8-12mm VF Lens |
| Lens Mount | M12 |

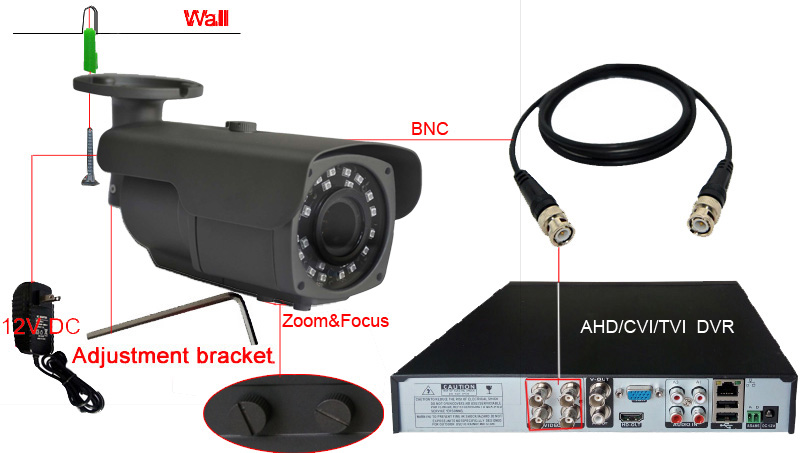

| Video output | 1CH AHD/TVI/CVI/CVBS Video output |
| Work environment | -10℃~60℃90％RH |
| Power supply | DC 12V±10% |
| BLC | Auto BLC |
| White Balance | Auto White Balance |
| Max transmission distance | common 75-3 lines can be up to 500 m |
| Waterproof Criterion | IP66 |
| Package Size | 27 x 18 x 16 cm |
| Gross weight | 0.67 Kg |
-
