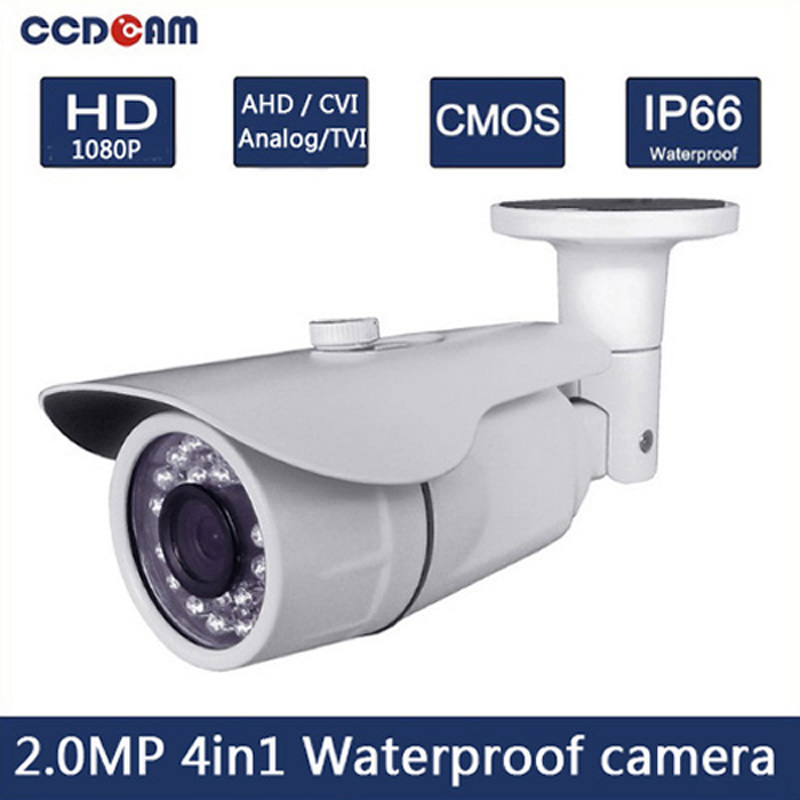

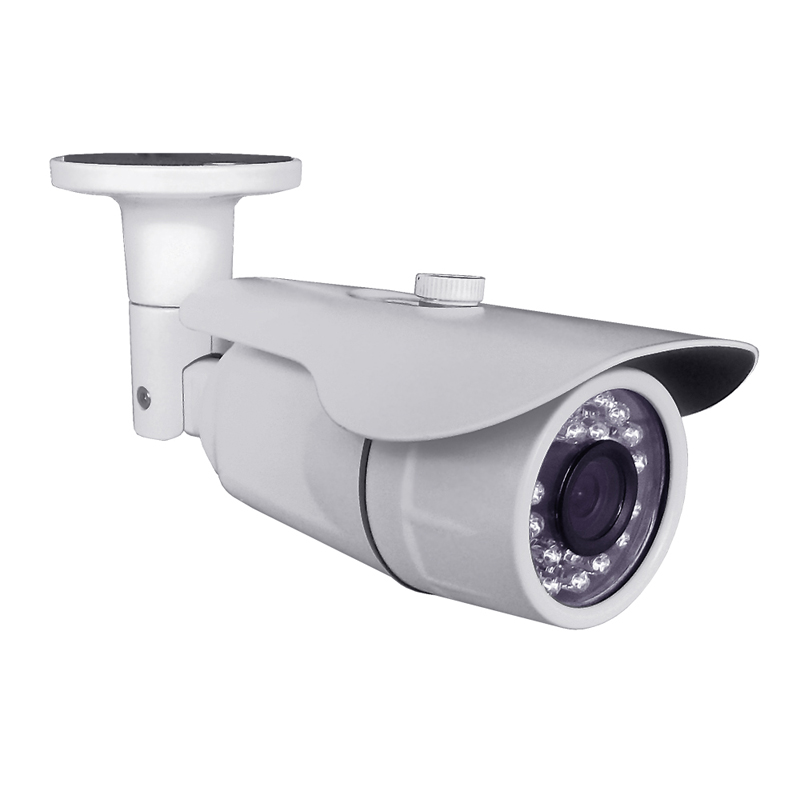

| Model | EC-HW2001 |
| Camera type | 2MP HD Waterproof IR camera |
| Image Sensor | 2MP CMOS sensor |
| Effective Pixels | PAL:1920x1080@25fps NTSC:1920x1080@30fps |
| Resolution | 1920x1080 |
| IR-LED |

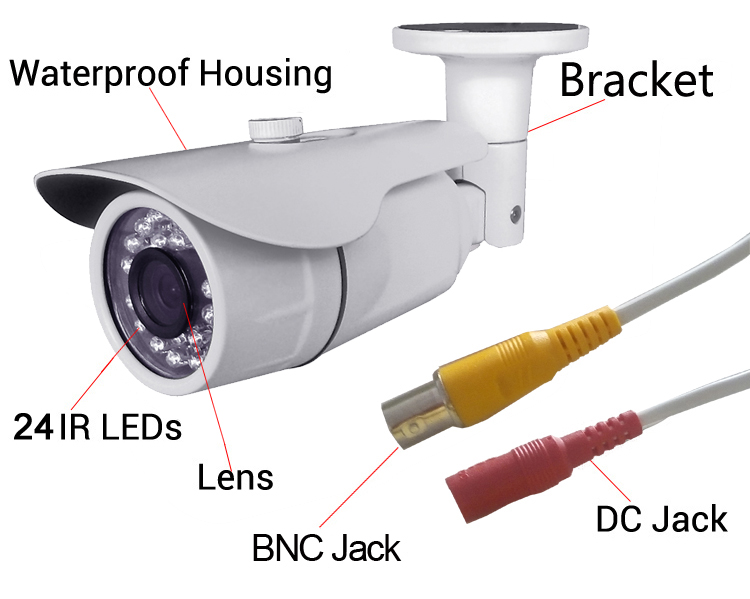

24pcsxФ5 IR Leds |
| Illuminate Distance | 20m IR Distance |
| Day/Night | IR-CUT filter |
| Min.Illumination | Color 0.01Lux |
| Electronic Shutter | 4/25-1/45,000s |

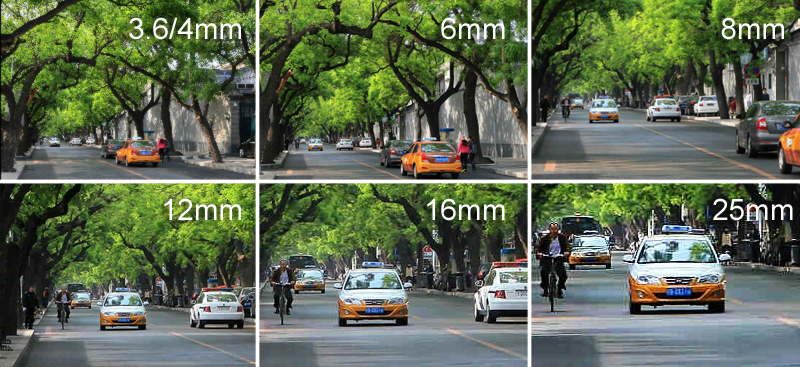

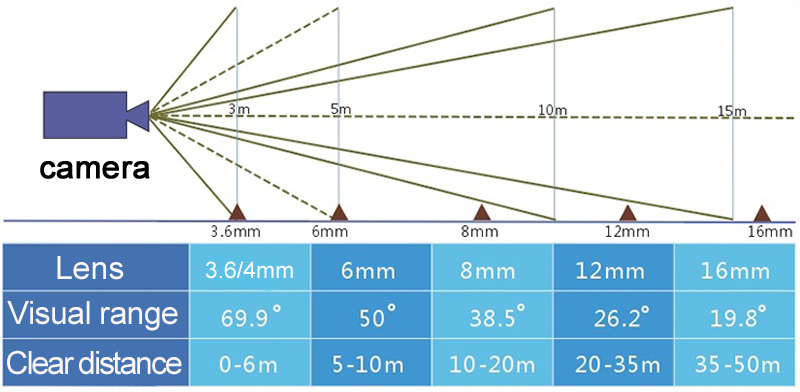

| Lens | 3.6mm fixed Lens |
| Lens Mount | M12 |

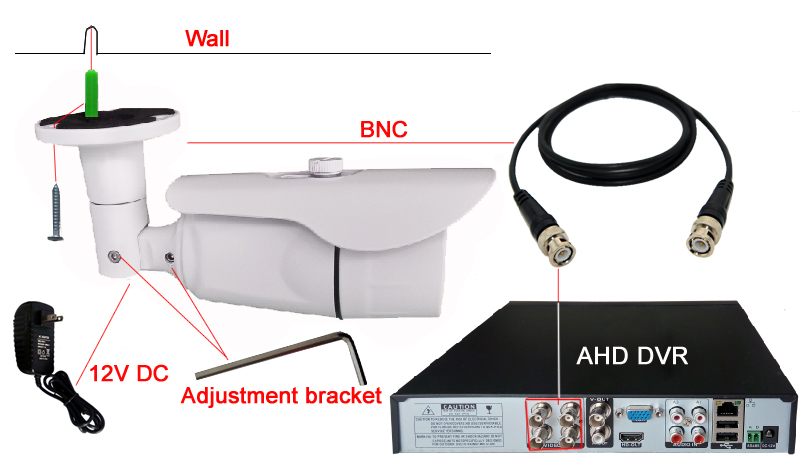

| Video output | 1CH AHD/TVI/CVI/CVBS Video output |
| Work environment | -10℃~60℃90％RH |
| Power supply | DC 12V±10% |
| BLC | Auto BLC |
| White Balance | Auto White Balance |
| Max transmission distance | common 75-3 lines can be up to 500 m |
| Waterproof Criterion | IP65 |

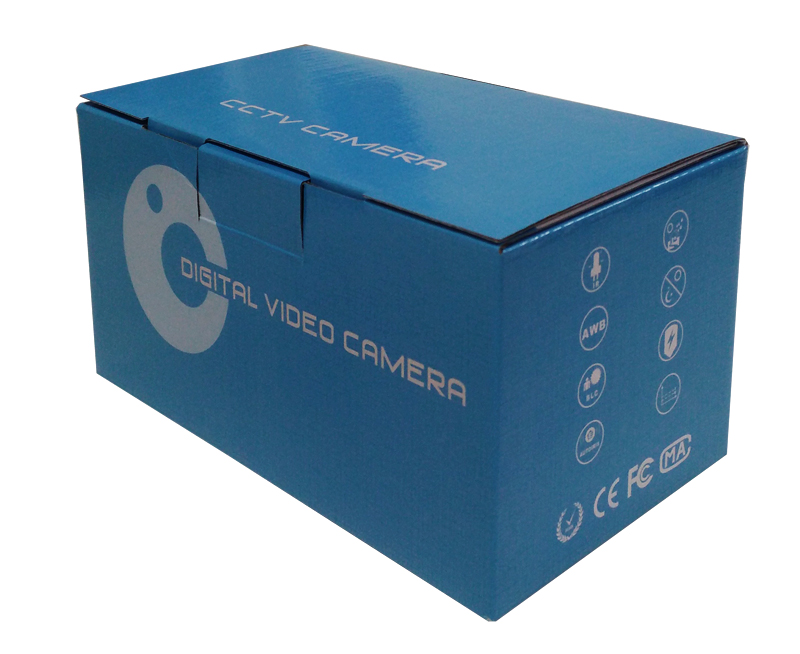

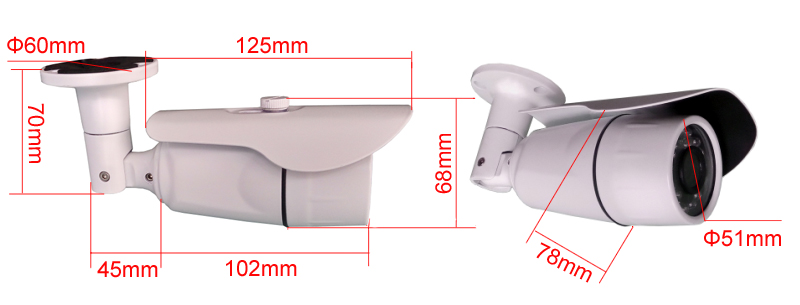

| Package Size | 16 x 9 x 9 cm |
| Gross weight | 0.6 Kg |
-
