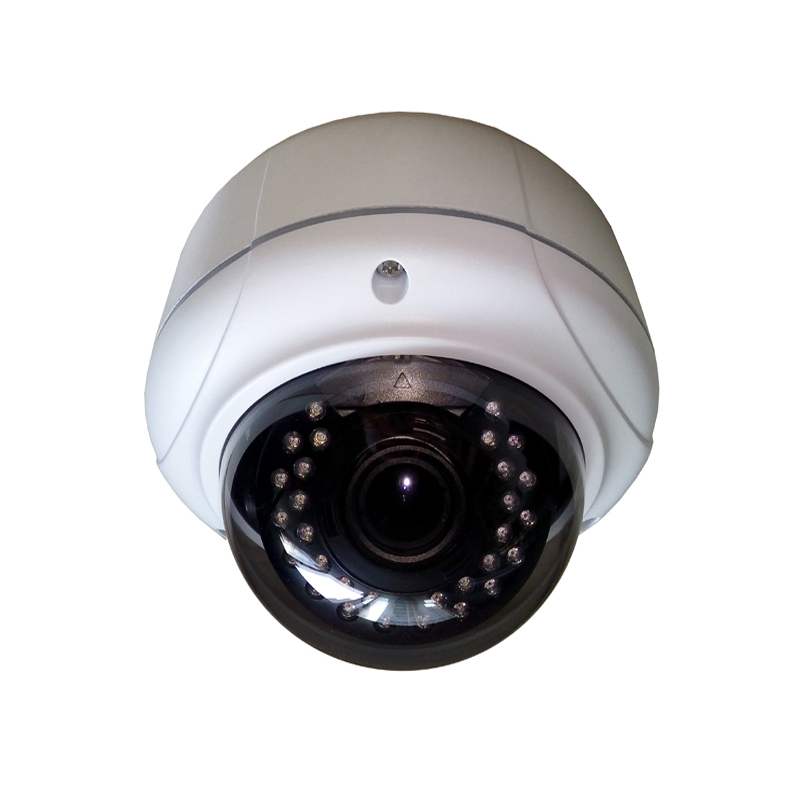

5MP Vandalproof IP Camera
Cameras features:
5 MP Vandalproof IP Camera
5 Megapixel CMOS sensor
High resolution : 2592*1944
2.8-12 mm 5MP VF Lens
30pcs micro Array LEDs ,IR range 20M
Model |
EC-IV8523V |
|
Camera Type |
5MP IR Vandalproof IP Camera |
|
Camera |
Image Sensor |
5MP CMOS Sensor |
Effective Pixels |
2592(H)x1944(V) |
|
IR-LED |
30pcs IR led |
|
Illuminate Distance |
20m IR distance |
|
Day/Night |
IR-CUT filter |
|
Min.Illumination |
Color 0.1Lux/F1.2,B/W 0.01Lux/F1.2 |
|
Exposure Mode |
Auto/Manual/shutter mode |
|
Lens |
2.8-12mm VF Lens |
|
Lens Mount |
M12 |
|
Compression |
Compression standard |
H.265/M-JPEG/H.264 |
Video frames |
2592*1944@25fps |
|
Video stream output |
Support adjustable stream 0.1M ~ 10Mpbs |
|
Audio coding standard |
G711 |
|
Image |
Resolution |
Main Stream: 2592*1944,1-20(25)fps,2560*1440,1-20(30)fps,2304*1296,1-20(30)fps,1920*1080,1-20(30)fps,1280*960,1-25(30)fps;1280*720,1-25(30)fps |
Sub Stream: 640*480,1-25(30)fps;480*360,1-25(30)fps;352*288,1-25(30)fps;176*144,1-25(30)fps |
||
Network |
Parameter settings |
WEB configure and OSD supported, Real time recording,Transmission and |
Protocol |
TCP/IP,HTTP,NTP,IGMP, DHCP,RTSP,DDNS,P2P |
|
Intelligent Alarm |
Support Motion Detection, Linkage Alarm, Linkage recording,Sensor trigger |
|
Privacy Mask |
Support 4 area can be set |
|
Basic |
Anti-flicker, Dual stream, Heartbeat, Password protection |
|
Interface |
Video output |
1CH Video output,Support CVBS standard,PAL/NTSC Optional |
Audio input |
1CH |
|
Audio output |
1CH |
|
Network interface |
RJ4510M/100 MEthernet port |
|
Other |
Work environment |
-10℃~60℃90%RH |
Power supply |
DC 12V±10%/2.0A |
