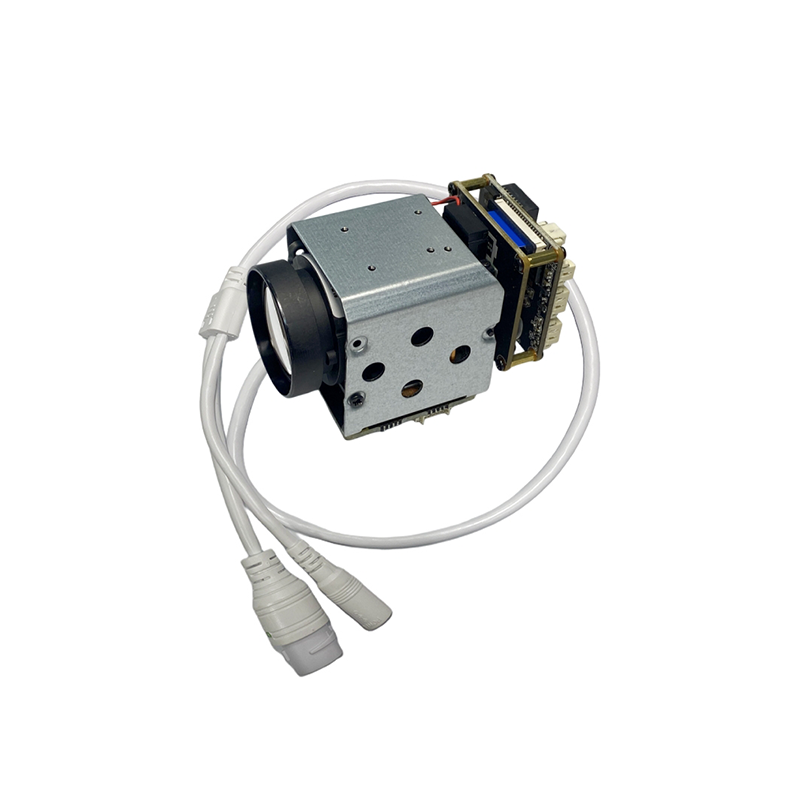

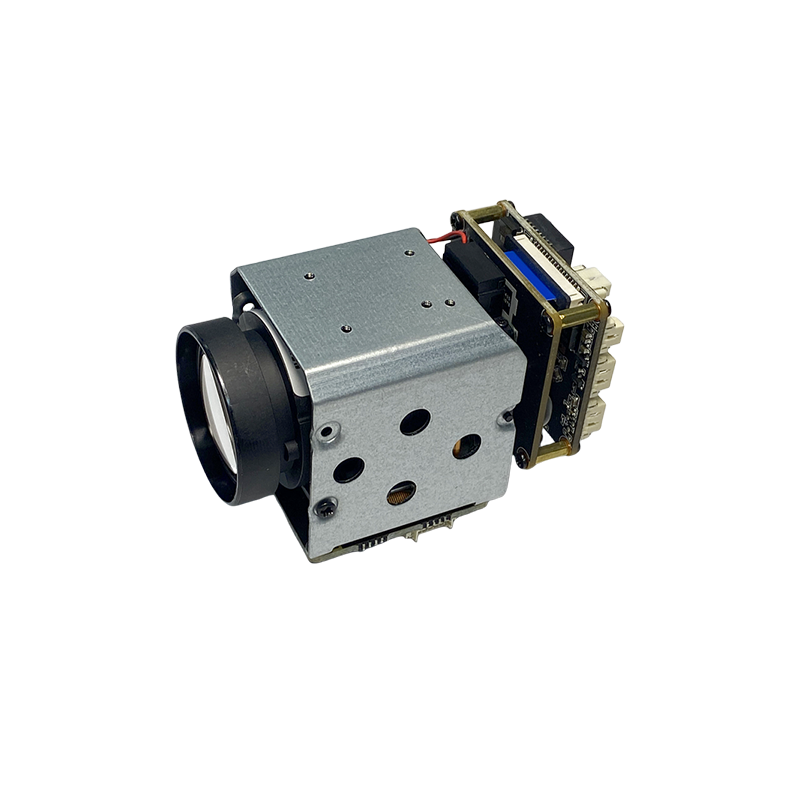

IPA800Z10 Zoom Module - Shenzhen CCDCAM Technology Co.,Ltd

10X ZOOM LENS,5-50mm,F1.6-F2.5

Using the SSC378QE processing chip+SONY IMX415 CMOS

The highest pixel is up to 8MP,3840x2160@20fps

H.265 compression algorithm,effectively reducing network bandwidth,supporting dual stream,supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording,SD card capture,voice alarm,message push,email alarm and other functions.

support fog function,support WDR,HDR. Support strong light suppression function.

Support humanoid recognition and humanoid alarm

Support multiple network protocols:TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP, UPNP,RTSP,RTMP,etc.

Support ONVIF protocol,Hikvision protocol

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm I/O

Support timing capture pictures to FTP server

Support static IP,also support dynamic IP (DHCP)

Support P2P plug and play

Support IE,Google,Firefox browser

Provide motion detection (area, sensitivity can be set) alarm function

Image sensor
Sensor	1/2.8" 8MP IMX415 CMOS
Maximum resolution	3840x2160@20fps
Minimum illumination	Color:0.005Lux B/W:0.01Lux
Shot
Focal length	5-50mm,F1.6-F2.5
Viewing angle	70.9°(nearfocus)~7.1°(farfocus)
Camera
AGC	Auto/Manual
S/N ratio	≥50dB(AGC OFF)
Shutter speed	1/2 - 1/20,000s,Slow shutter support
Wide dynamic range	Digital WDR≥73.7dB
Exposure mode	Auto/Manual/shutter mode
White balance	Auto/Manual/ATW/Indoor/Outdoor/lamp
Day & Night	External control(IR Cut Filter)
Compressed format
Video compression	H.265+/H.265/H.264
Audio compression	G711
Audio frequency

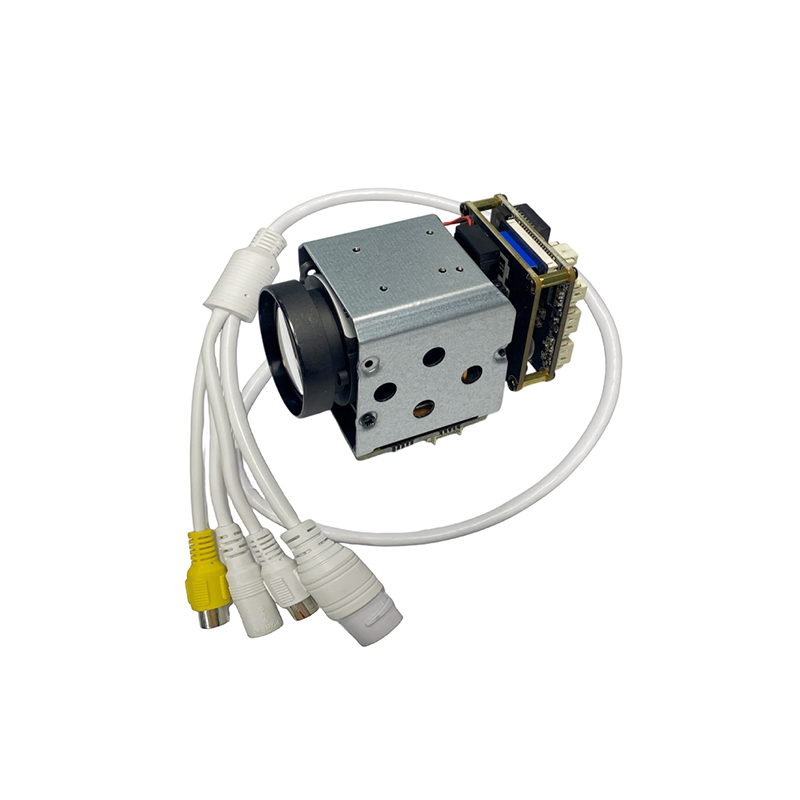

Input	Passive MIC
output	Built in amplifier for direct speaker connection
Image resolution
Main stream	3840x2160@20fps/3072x2048/2592x1944/2560x1440@30fps
Sub stream	640×480/480x360/352×288/176×144@30fps
Protocol
Network protocol	HTTP/RTSP/DHCP/NTP/P2P/ONVIF
Network interface
Wired	1ch 10/100BaseT Ethernet,RJ45 interface
Other
Power supply	12VDC
Size	69x39x44mm
Operation temperature	-30°C~65°C
Working humidity	≤90% RH(non-condensing)
