Image sensor |
|
Sensor |

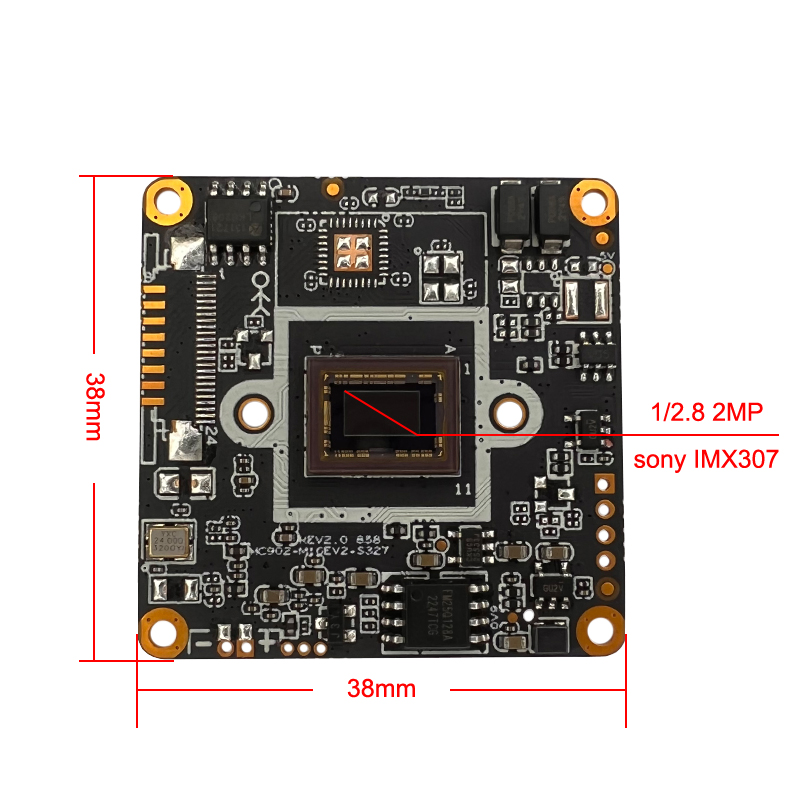

1/2.8” 2.0 MP CMOS Sony IMX307 |
Maximum Resolution |
1920x1080@30fps |
Minimum Illumination |
Color:0.1Lux B/W:0.01Lux |
Camera |
|
AGC |
Auto/Manual |
S/N Ratio |
≥45dB(AGC OFF) |
Shutter Speed |
1/2 - 1/20 ,000s,Slow shutter support |
Wide Dynamic Range |
Digital WDR |
Exposure Mode |
Auto/ Manual/shutter mode |
White Balance |
Auto/ Manual /ATW/ Indoor/Outdoor/ lamp |
Day & Night |
External control(IR Cut Filter) |
Image resolution |
|
Main stream |
1920 × 1080/ 1280x960/ 1280x720@30fps |
Sub stream |
640×480/480x360/352×288/176×144@30fps |
General Protocol |
|
Network protocol |
TCP/IP/HTTP/NTP/DHCP/SMTP/RTSP |
Onvif protocol |
Standard ONVIF |
Network interface |
|
Wired |
1ch 10/100BaseT Ethernet,RJ45 interface |
Other |
|
Power supply |
12VDC |
Size |
38x38mm |
Operation temperature |
-10°C~50°C |
Working humidity |
≤90%RH(non-condensing) |
Datasheet: IM20S07(OEM)
Tools: IPWizardIII_2_2_5(English)
